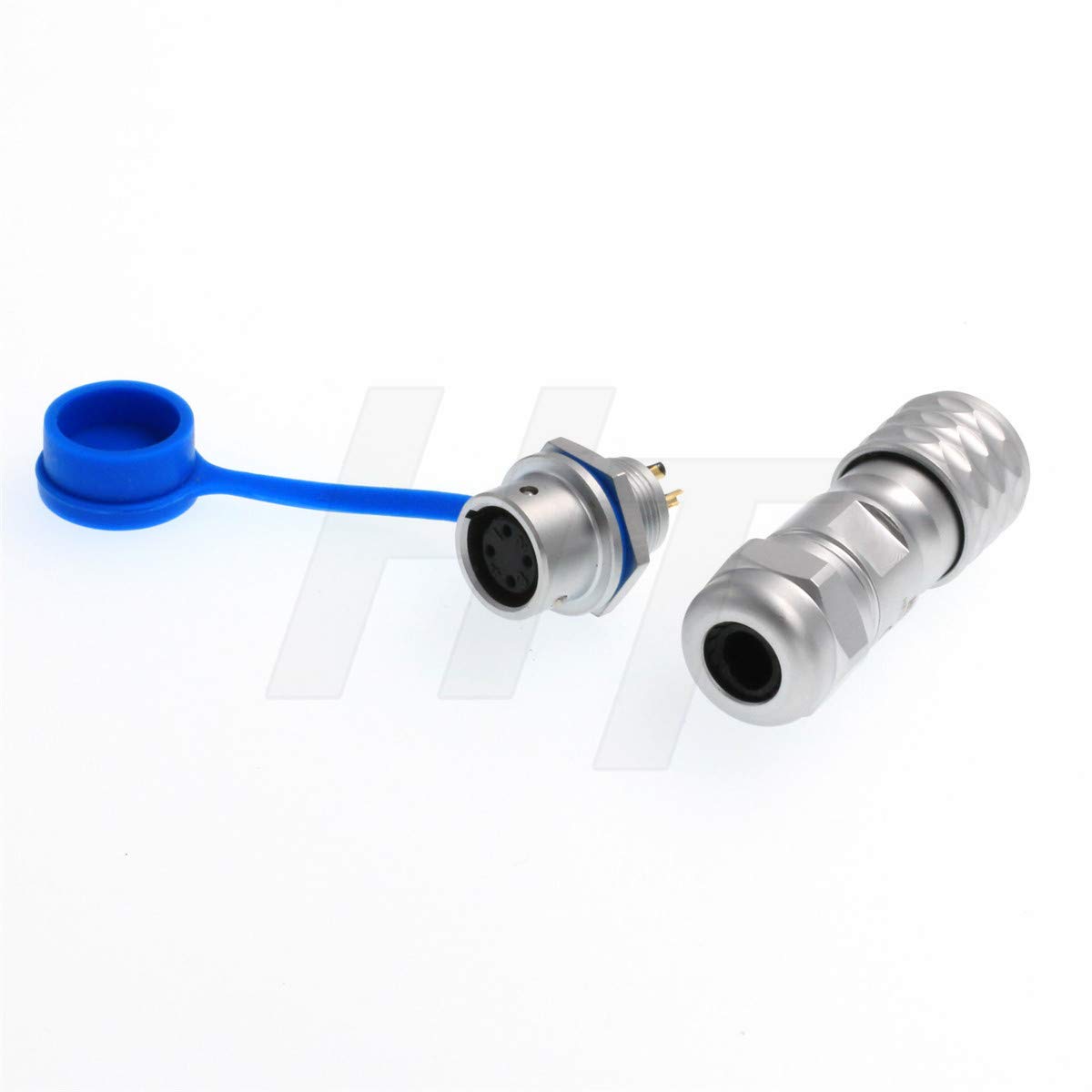

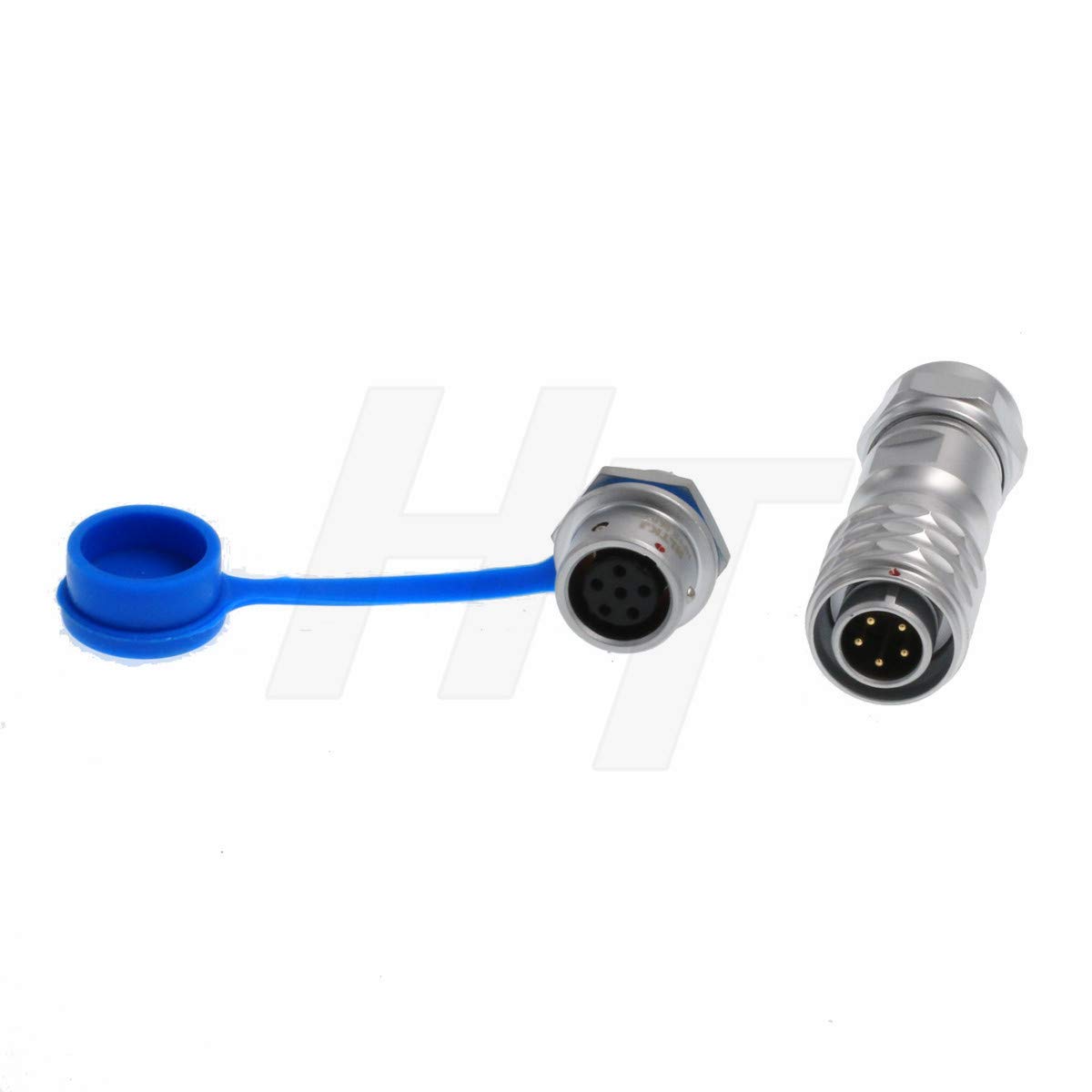

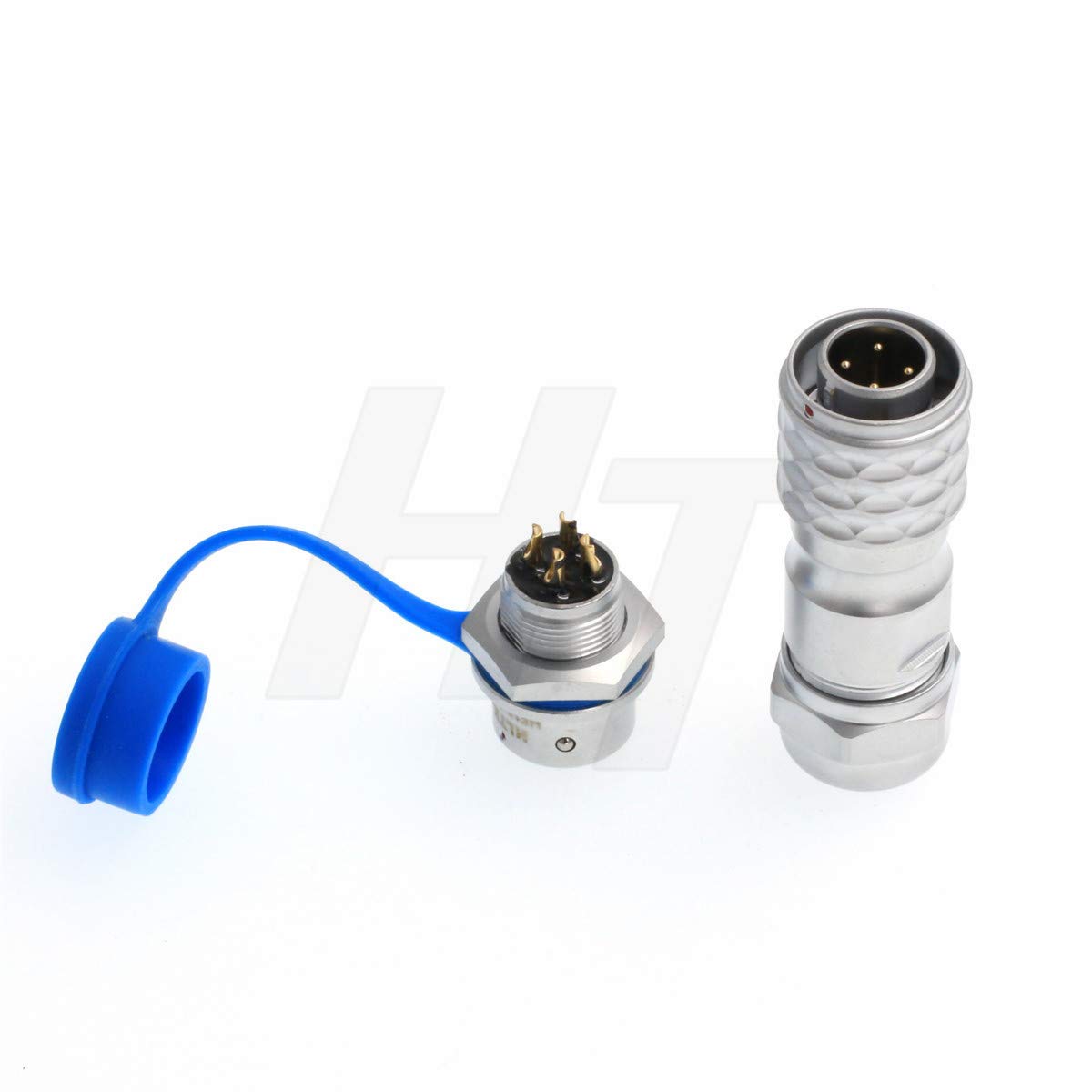

HangTon HF12 Brass Gold-Plated Circular Waterproof Male Female Power Connector Chassis Socket & Plug(4 pin 5A 200V)
4.1 (18 items)
Limited Time Sale$12.95 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218140368 | Release Date | 2026/05/03 | List Price | $8.64 | Model Number | 218140368 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: In the harsh environment it can provides a safe and reliable connection. HF12(Push Pull Coupling) metal aviation connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, marine or automatic equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, for data and power distribution. Specifications: HF12:IP Rating: IP67 Panel Cutout Diameter: 12mm Cable Outer Diameter Range: 3-6mm Coupling Type: Push Pull Shell Material: Brass with Chrome PlatingInsert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Termination: Solder Mating Cycle: >500 times Temperature Range: -25~+85℃ Package Includes: 1 x Cable Plug with Male Pins 1 x Chassis Socket with Female Pins 1 x Waterproof / Dustproof Cap
- Cable Range: 3-6mm, Wire Size: ≤0.785mm² or 18AWG, Contact Diameter: Φ1
- Rated Voltage/Current: AC 200V/5A, Resistance: 5mΩ
- For machines & automotive & LED & marine equipment, power system, indoor & outdoor electrical equipment
- Reliable, watertight, dust-proof, explosion-proof, deformation-proof
- Quick disconnect, solder cable plug & panel mount socket
| Brand Name | HangTon Connect |
|---|---|
| Manufacturer | HangTon Connect |
| Warranty Description | 1 Year Manufacturer |
