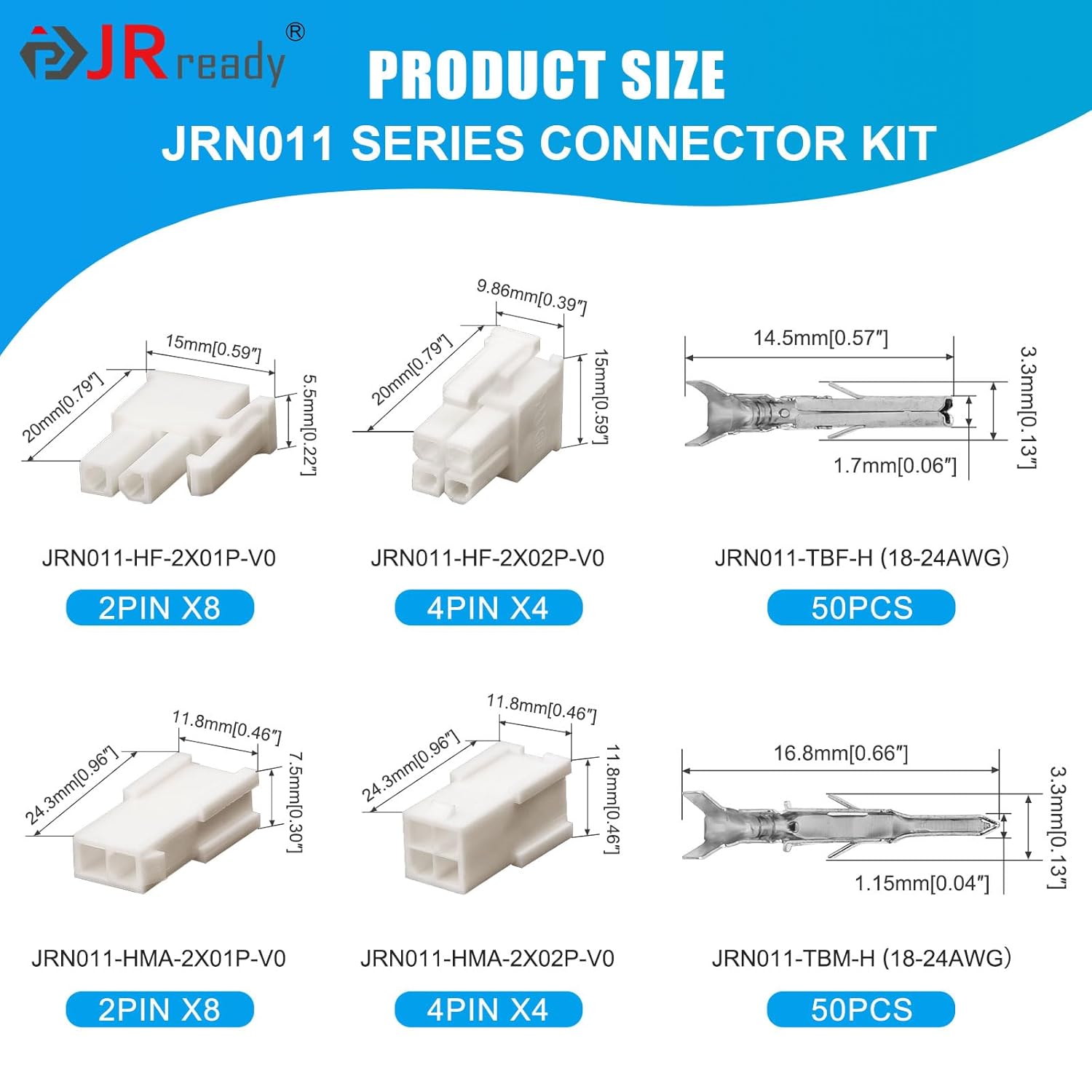

JRready ST6517 Mini-Fit Jr 2 4 Pin Molex Connector Kit 4.2mm Pitch 5557 Series Molex ConnectorsPower Plug Receptacle Housing 18-24AWG Crimp Terminals Pin Sockets Natural 124Pcs
4.0 (22 items)
Limited Time SaleUntil the end
19
21
52
$14.39 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $23.99
Product details
| Management number | 218142177 | Release Date | 2026/05/03 | List Price | $9.60 | Model Number | 218142177 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- JRN011 SERIES CONNECTOR: 4.2mm pitch connector is made of PA66, Flame retardant grade is UL94-V0. The operating temperature range is from -40℃ to +105℃. Under environmental conditions of 23℃ ± 5℃, the temperature rise at 9A current is no more than 30℃. The connector can be mated and unmated over 50 times. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.
- CONNECTOR DESIGN: Connectors are ideal for power applications up to 9 amps per circuit, and feature fully isolated terminals, positive housing locks, low engagement forces, and polarized housings. The receptacle housing can be connected with a variety of plug options, including panel mount and free hanging plugs, or vertical and right angle headers.
- CONTACTS DESIGN: The 18-24AWG contact is made of tin-plated brass. Locking tangs on the crimp contacts secure them firmly in the connector housing.The kit includes a large quantity of terminals for crimping practice or as spares, providing a great user experience, especially for beginners.
- JRREADY TOOL for JRN011 SERIES CONNECTOR: The crimper: ACT-SY-JRN011S-H. Pin removal tool：JRconDRK-D173P: enhanced for a superior grip with an enlarged size and protective cover; JRDDS-D173: high strength and hardness, magnetic deburring and polishing ,upgrades metal handle; DAP-D173: Hardened alloy steel and innovative push rod design. You can buy these tools at JRready Store.
- COMPATIBLE with MOLEX MODELS: 2 pin connector-39-01-3029/39-01-2025; 4pin connector- 39-01-3049/39-01-2045; Contacts pin: 39-00-0040/39-00-0041，socket: 39-00-0038/39-00-0039.
| Color | White |
|---|---|
| Model | ST6517 |
| Terminal | Pin Terminal |
| Brand Name | JRready |
| Part Number | ST6517 |
| Manufacturer | JRready |
| Material Type | Plastic |
| Connector Type | Crimp |
| Contact Material | Brass |
| Specification Met | UL |
| Insulation Material Type | Nylon |
