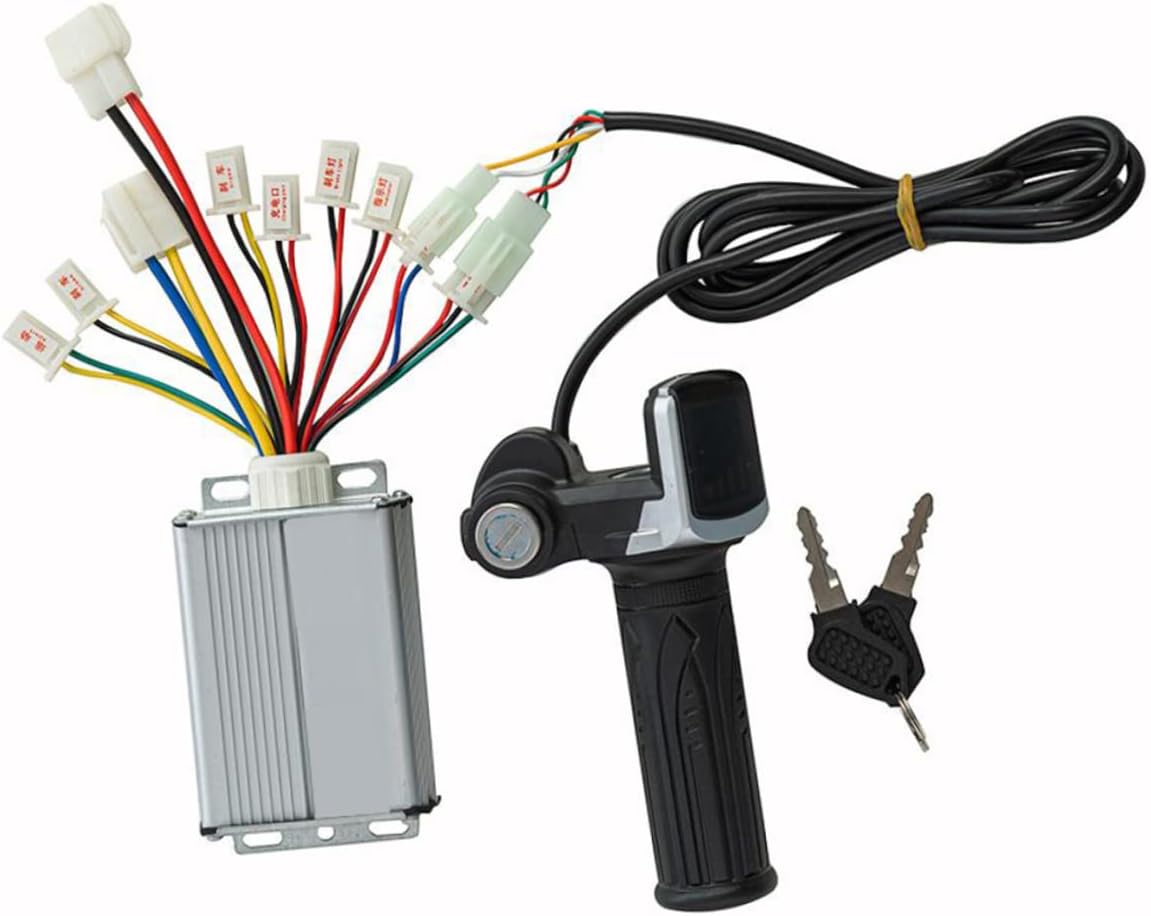

Motor Speed Controller 36v 500w Electrical Scooter E Bike Tricycle Brush Motor Control Box Electric Motor Controller Set 36V 500W Electric Bike Scooter Throttle Handle Accessories

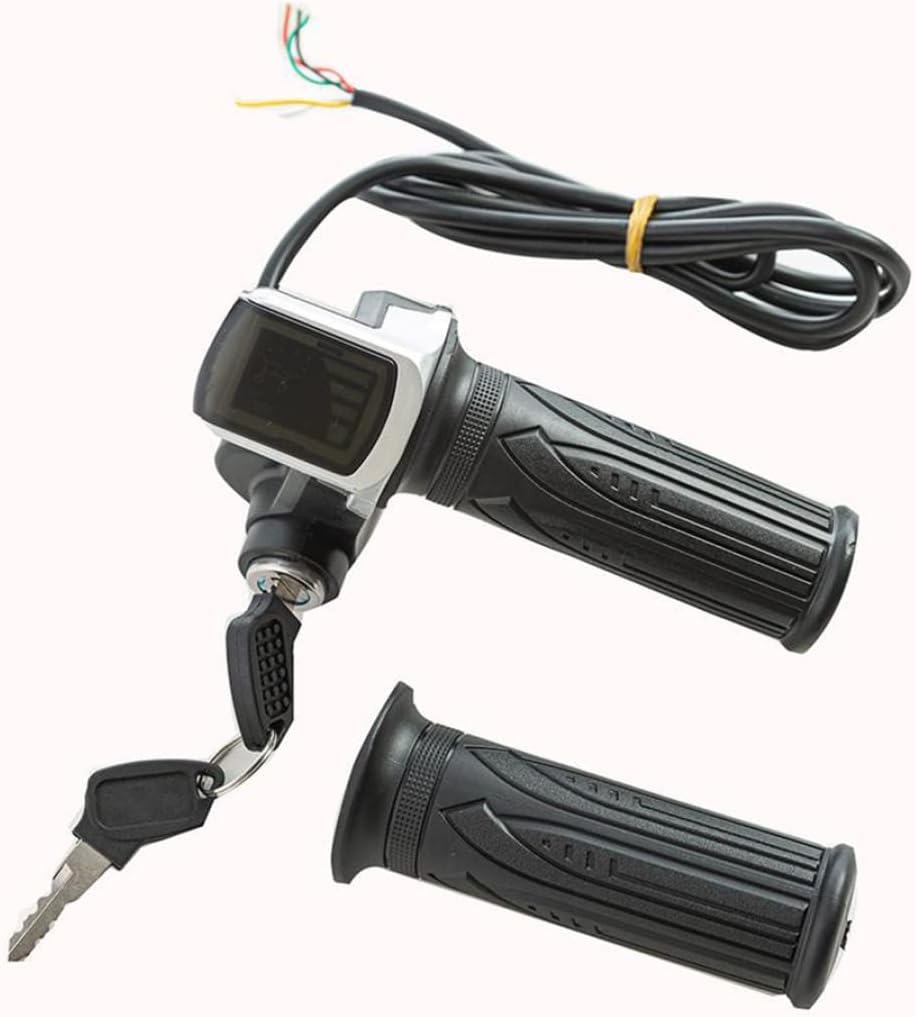

Description The package includes 2 (1 Twist throttle handle and 1 normal handle (matching thumb handle)). Electric scooter twist accelerator with power display, 5 LED battery indicator. Fits a standard 7/8 inch (22.2 mm) handle, and the cable length is approximately 59 inches (1.5m). Features Scooter motor controller set -Color: As shown. -Material: Aluminum alloy,plastic. -Size: 8x6.5x4 cm/3.15x2.56x1.57 inch. Throttle 10x2 cm/3.94x0.79 inch. Specifications: Rated voltage: DC /36/48V Current limit: 23A(350W)/25A(500W) Rated power: 350W/500W Matching motor: DC brush motor Undervoltage protection: 20V(24V)/31V(36V)/42V(48V) throttle: Throttle working voltage: DC5V Speed control: 0.8V～4.3V Power display voltage: DC /36V/48V Power display: Normal: 3 LEDs green, Half: LED yellow, Empty: LED red Rotation angle: 0°~70° Working temperature: -20℃~+50℃ Controller line interface definition: Battery: thick black (power supply negative) / thick red (power supply positive) Motor: dark white (negative pole of the motor) / dark blue (positive pole of the motor) Ignition switch: thin red (VCC) / thin blue Indicator light: thin red (indicator power output) / thin black (indicator negative) Brake: thin yellow (brake signal) / thin black (negative power supply) Charging port: thin red (charge input​​power supply positive) / thin black (power supply negative) Brake light: thin red (power supply positive) / thin black (power supply negative) Governor: thin blue (handlebar input) / thin black (negative power) / thin Red (5V positive power supply) Package Including 1 * Motor controller1 * Throttle handle (with a normal handle, 2 keys)1 * Reflective sticker1 * L-shaped wrench

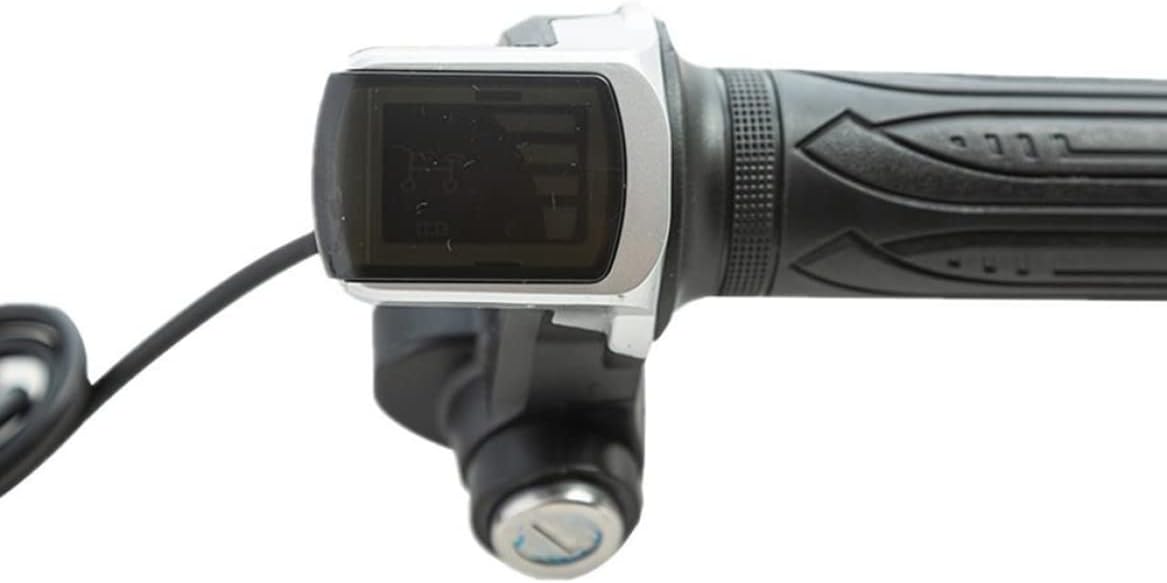

• Design: Ebike twist throttle, has a digital display to show the speed in percentage from actual speed to maximum speed and circuit board
• Performance: Ebike handlebar controller kit provides stable and sensitive speed control, runs well on the right side of the handlebar, and protects the controller board from damage and heat dissipation
• Function: Scooter motor controller set has the rated functions of high efficiency, high torque, low heat, reverse polarity protection, and high current protection
• Easy to use: Scooter control module kit is made of aluminum and plastic, simple and easy to use, just connect to the item,there is an instruction label on the interface, easy to install
• : This electric scooter speed controller is made of excellent circuit boards and has a longer service life. It is suitable for 36V 500W, 36V 350W, 48V 500W brush motors
