Elecom LD-OCTST/BM30 LAN Cable CAT8 9.8 ft (3 m) No Crack Slim Blue Metallic

Specifications: ■Color: Blue Metallic ■Interface: RJ-45 connector ■Environmental Consideration: EU RoHS Compliant (10 substances) ■Standards: Cat8 compliant (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T) ■Transmission speed: 40Gbps ■ Transmission band: 2000MHz ■ Cable Length: Approx. 9.8 ft (3 m) *Connector not included ■ Cable Thickness: Approx. 4.1mm ■Number of cores: 8 cores ■Wiring Method: Straight wire ■ Yori cores (twisted pair cable): Yes. ■Shielding: Yes (ScTP/Double Foil Tape Shield Specification) ■Cross materials: x ■ External Sheath (coating) Material: PVC ■ With Length Mark: x ■ Conductor Composition: Yoli Wire (30AWG) ■ Connector Included: With connector on both ends ■Molded Connector: Yes ■Slim Connector: Yes. ■Connector with nail breakage prevention cover: Yes. - Cable winding function: x ■Package form: box + inner tray ■ Nail-resistant connector: Yes. ■PoE: x 【Description】 ■ This is a slim type Cat8 compliant LAN cable that supports 40 Gigabit Ethernet "40 GBASE-T" which is suitable for high-speed optical transmission. ■ Supports high frequency bands up to 2000 MHz, 8 times higher than Cat6, and is resistant to noise interference, providing a fast, stable network environment. ■Ensure stable data transfer rate in 10GBASE-T/1000BASE-TX/1000BASE-T/100BASE-T environments. ■ Supports transmission bandwidth 2000 MHz, which prevents the transmission speed from decreasing due to the connection of multiple devices. ■ Uses a double-shielded structure to prevent communication errors (alien cross talk) caused by noise interference between adjacent cables, which are common in high-speed communications over Gigabit. ■ Excellent shielding effect, suitable for installation in medical facilities, mechanical rooms and OA rooms where EMI measures are required. ■ The LAN cable is made with a double structure with anti-claws protectors and connectors made of highly durable material to prevent cracking. Pass 1000 bending tests (verified by our company). ■ Prevents cable from falling out due to claws and securely fastens to LAN port for a long time. ■ Uses a slim cable with a diameter of 0.2 inches (4.1 mm) which is suitable for wiring in narrow spaces. ■ Because it has no cross interruption, it is soft and easy to maneuver, and it is easy to set up in narrow spaces. ■ The outer shell of the cable is made of flame-retardant material that is comparable to the "JIS C 3005" and is not likely to cause burning. ■ Compliant with TIA-568-C standards. ■ Environmentally friendly product complies with the EU "RoHS Directive (restriction on use of harmful substances on electrical and electronics) Product inquiries Elecom General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Reception Time / 10:00 - 19:00 24/7

• This is a slim type Cat8 compliant LAN cable that supports 40 Gigabit Ethernet "40 GBASE-T" which is suitable for high speed optical transmission
• It supports high frequency bands up to 2000MHz, 8 times higher than Cat6, and is resistant to noise interference, providing a fast, stable network environment
• Ensure stable data transfer rate in 10GBASE-T/1000BASE-TX/1000BASE-T/100BASE-T environments
• Supports transmission bandwidth 2000MHz, which prevents transmission speed loss due to multiple devices connections
• Features a double-shielded construction that prevents communication errors (alien cross talk) caused by noise interference between adjacent cables that tend to be caused by high speed communications over Gigabit
• It has excellent shielding effect, and is suitable for installation in medical facilities, mechanical rooms and OA rooms where EMI measures are required

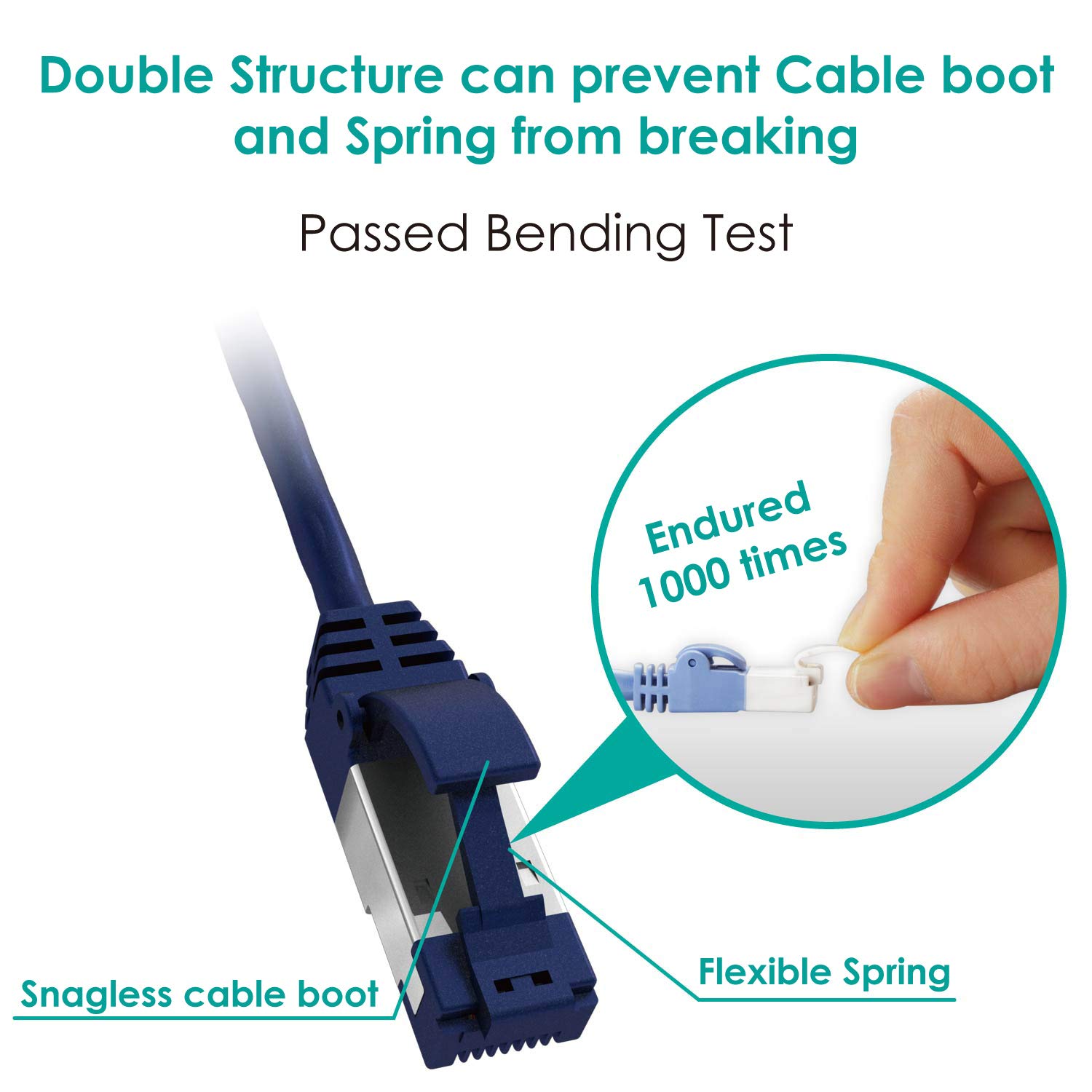

• The LAN cable is made with a double structure that is resistant to cracking and has connectors made of highly durable material that is resistant to bending. Pass 1000 bending tests (verified by our company)
• Prevents cables from falling out due to claws and securely fastens to LAN ports for a long time
• It uses a slim cable with a diameter of 0.2 inches (4.1 mm) that is suitable for wiring in narrow spaces
• Since it is made with a glue wire that eliminates cross interruption, it is soft and easy to handle and set up in narrow spaces
