PMS5003 PM2.5 PM10 Air Quality Detection Sensor Digital Particle Concentration Laser Sensor Dust Sensor Air Conditioning Monitor Module for Arduino

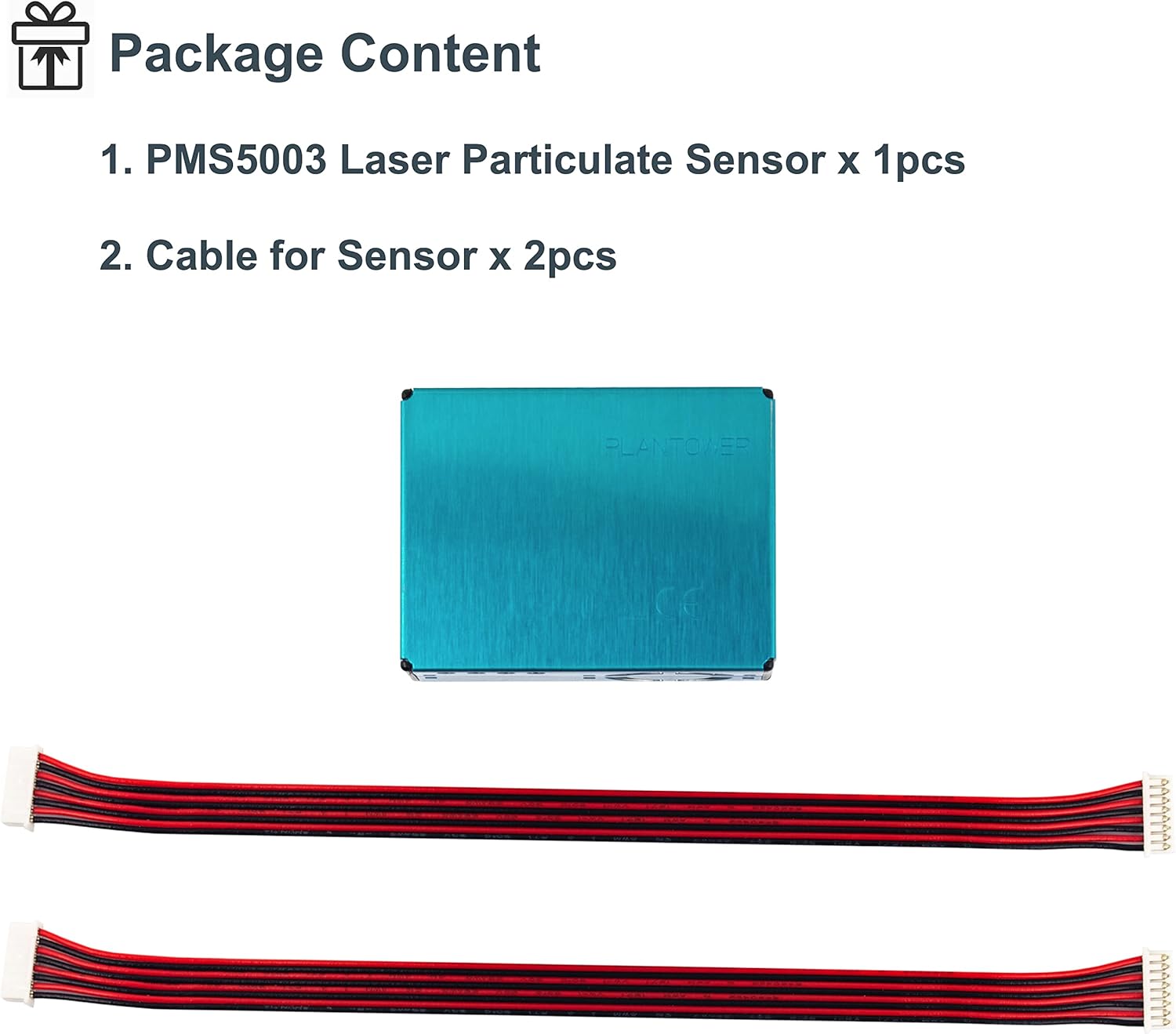

Package Content: 1pcs x PMS5003 Laser Particulate Sensor, 2pcs x Cable for Sensor.

• PMS5003 (G5) is a digital multi-functional particulate matter concentration sensor, which can be used to obtain the quality and quantity of suspended particles in the air per unit volume and output in the form of digital interface.
• Accurate measurement of laser scattering principle; real-time response and support for continuous acquisition; stronger anti-jamming performance; optional air inlet and outlet direction.
• The sensor can be embedded in various concentrations of suspended particles in the air or related instruments and equipment to improve the environment and provide timely and accurate concentration data.
• Measuring Sange: 0.3~1.0; 1.0~2.5; 2.5~10 (um)
• DC Supply Voltage: Typ:5.0V, Min:4.5V,Max:5.5V; Working Current ≤ 100mA; Operating temperature range-10 ~ + 60 ℃.

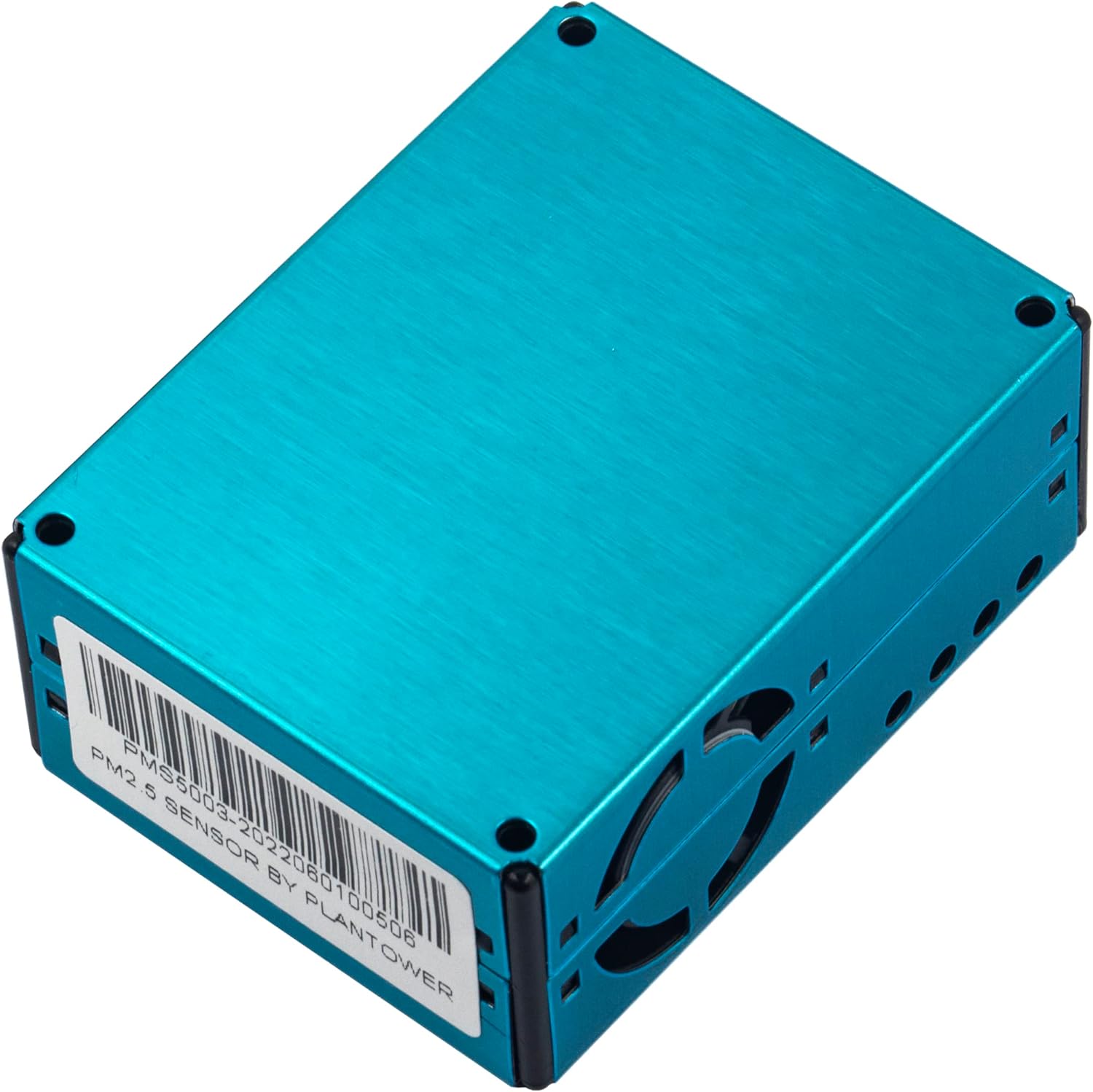

• The product is silver and has a blue protective film on the surface, which can be torn off.
• It is widely used in smart home, air quality detector, ventilation and purification equipment, outdoor dust monitoring, small weather station, vehicle purifier and so on.
