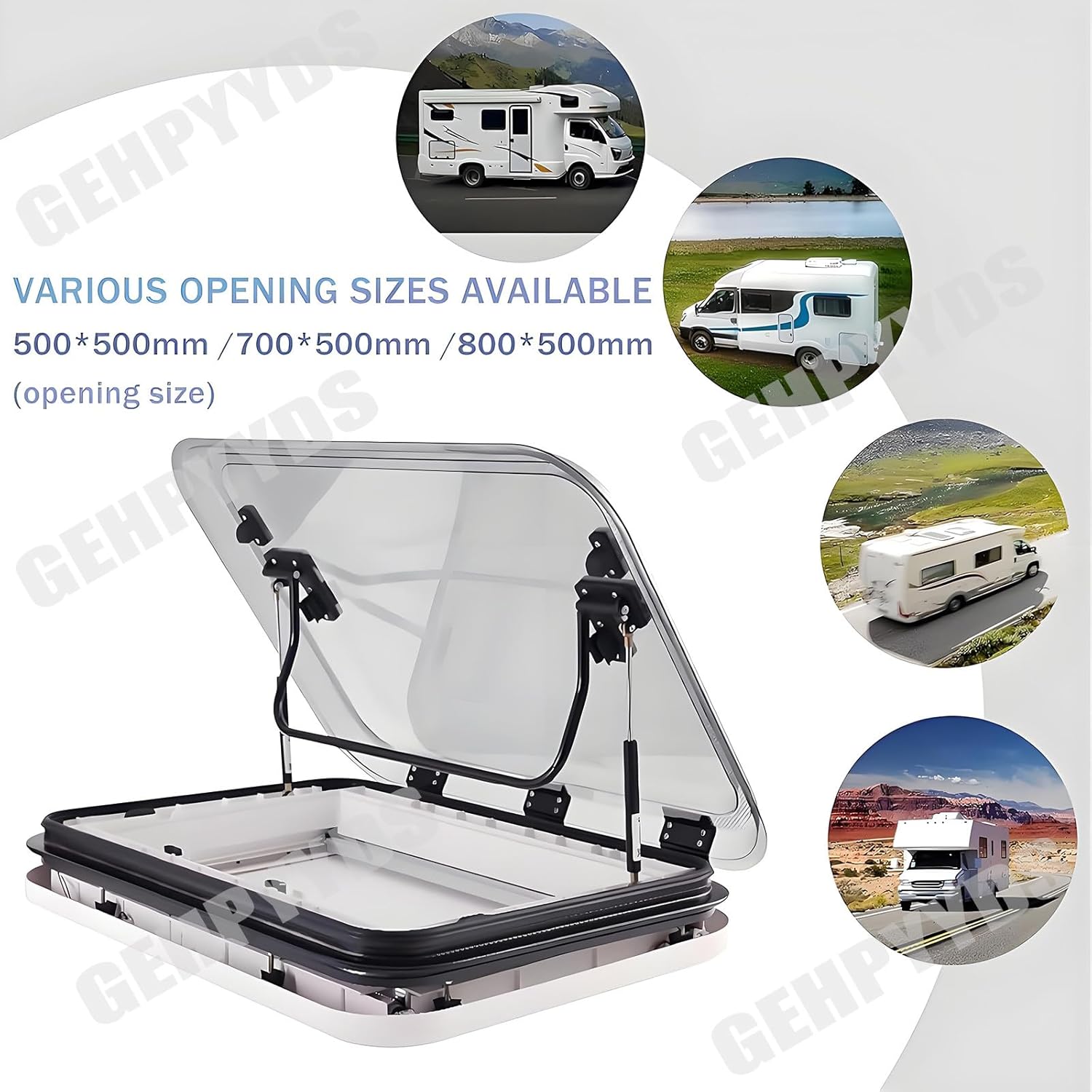

500/700/800 x500 mm RV Roof Maintenance Kits,Motorhome Roof Cover,RV Ventilation,RV Windows & Skylights,Motorhome Roof Cover,with Nets & Sunshade,for Caravan, Cargo Trailer,70x50cm

Features:1.Quick and easy for installation2.ABS inner frame with LED lights3.Easy O-peration with gas lift spring4.Anti-UV double-layer hollow acrylic cover5.With anti-insect net and sunshade SIZE ❶Ordering Size (W X H): 500x500mm (19.7X19.7 Inch) Cut Hole Size (W x H): 500x500mm (19.7 x 19.7 inches)Overall Size (W x H): 574x574mm (30.5x22.6 inches). SIZE ❷Ordering Size (W X H): 700x500mm (27.6 X19.7 Inch)Cut Hole Size (W x H): 700x500mm (27.6 x 19.7 inches)Overall Size (W x H): 774x574mm (30.5x22.6 inches). SIZE ❸Ordering Size (W X H): 800x500mm (31.5 X19.7 Inch)Cut Hole Size (W x H): 800x500mm (31.5 x 19.7 inches)Overall Dimensions (W x H): 874x574mm (34.4x22.6 inches).Specifications:Type: roof windowMaterial: aluminum alloy top frame + ABS inner frame with LED lighting + double layer hollow acrylic coverOpening angle: 70 degrees.Mounting: clamp mounting.Inner frame: white.Glass: transparent grey.Insect net: white.Sun protection: white.Standard skylight adapts to wall thickness: 30-60mmCorners of the sunroof: Rounded (diameter :70mm). Package Size:34 x 26.2 x 8 inchesShipping Weight:23 lbsPackage includes:1 x RV Caravan Roof Window Hatch W/LED lightNotes:1.Professional Installation Is Highly Recommended2.Please be aware that the ordering size is the Cut hole size, not overall size.3.Please cut the window according to the actual size of the skylight. It must be arc-shaped and there is a gap in the right-angle installation.

• 【RV Caravan Car Roof Window 】The top frame of RV Roof Vent is made of high quality aluminum alloy, which is durable. The double-layer hollow acrylic cover is more sturdy and reliable. In addition, it comes with LED lights for lighting functions.
• 【Main Parameters】: Opening Angle: 70 degrees, Standard Skylight Fits Wall Thickness: 30-60mm, ❶ Hole Size (W x H): 500x500mm (19.7 x 19.7 inches), Overall Dimensions: 774x574mm (30.5x22.6 inches).❷Hole Size (W x H): 700x500mm (27.6 x 19.7 inches), Overall Dimensions: 774x574mm (30.5x22.6 inches).❸Hole Size (W x H): 800x500mm (31.5 x 19.7 inches), Overall Dimensions: 874x574mm (34.4x22.6 inches).
• 【RV Windows & Skylights】: Open, close, ventilate, insulate, provide privacy, allow sunlight in, good water tightness, easy o-peration with gas lift spring, with net and sunshade, it can effectively prevent falling leaves and direct sunlight.
• 【RV Ventilation】: Mainly used for caravans, trailers, modified vehicles, special vehicles, etc. NOTE: Please note that ordering dimensions are cut-out dimensions, not overall dimensions.
• 【Note】: Please cut the windows according to the actual size of the skylight. Must be arc-shaped with clearance at right angles. When opening the hole, please note that the four corners of the skylight are rounded, and the rounded corners of the skylight are 70mm in diameter
