T-Rex Racing No Cut Frame Sliders for Suzuki 1998-2006 Katana GSX600F / GSX750 / GSX750F

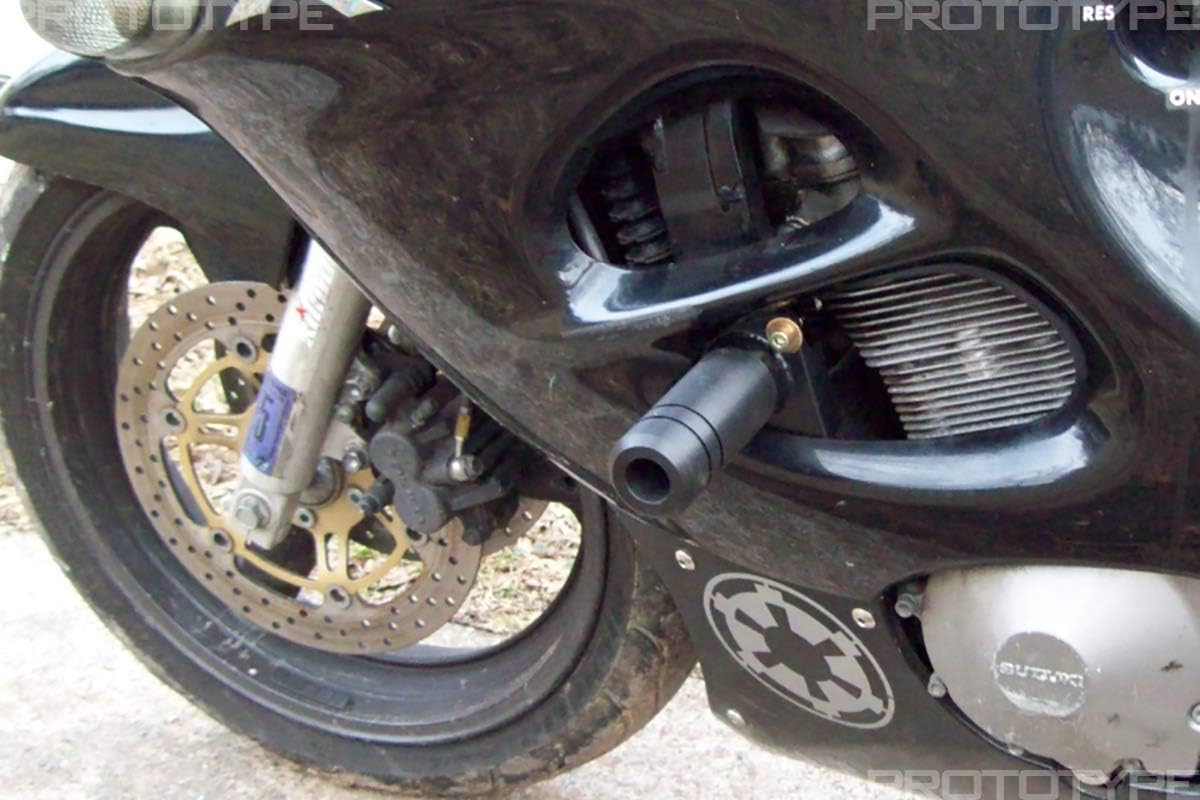

This purchase is for a pair of frame sliders / plastic body protectors (one LHS and one RHS). The sliders feature a new design of a complete solid puck without a hollowed-out center. This increases the strength and contact surface to about 30%. The bracket is bolted to the engine mount and the aluminum spacer is bolted to the bracket. The slider puck is then screwed on to the spacer. Since this spacer is made of solid billet aluminum there is no need for re-tightening the engine bolt in the long run where you have to do so with plastic slider as the plastic would gradually give in and therefore making the bolt loose. The brackets bolt around the frame preventing them from rotating in the event of a low side. The material of the puck is made of UHMW-PE (ultra high molecular weight polyethylene), a tough plastic with good strength, wear resistance and dimensional stability. It is more dimensionally stable than Nylon and used in many industrial ball bearing and friction reducing applications. Compared to Delrin, it is softer but tougher. Delrin is harder but more brittle. It is an ideal material for frame sliders since it can absorb more impact force onto itself and therefore reduce the impact on the frame and engine. The slider pucks can be inexpensively replaced in case of a low-side. We use highest grade commercially available 12.9(177,000 psi in tensile strength) wherever possible. Rest assured that you are getting the best material commercially available.

• Material: UHMW-PE (ultra high molecular weight polyethylene), black anodized aircraft grade aluminum
• Slider dimensions: approx. 4.5" in length, 2" in diameter
• No plastic or fairing modifications needed
• Fit Models: Suzuki 1998 - 2006 Katana GSX600F / GSX750 / GSX750F
