Air Conditioner AC Compressor Clutch Kit for Chevrolet Equinox Impala Limited 3.6L for GMC Terrain for Cadillac XTS for Buick LaCrosse AC Compressor Clutch Set for CVC Compressor
4.3 (84 items)
Limited Time Sale$34.31 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218291483 | Release Date | 2026/05/03 | List Price | $22.88 | Model Number | 218291483 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Fitment] for Cadillac XTS 2013-2019 3.6L, for Chevrolet Equinox 2016-2017 3.6L, for Chevrolet Impala 2014-2020 3.6L, for Chevrolet Impala Limited 2014 3.6L, for GMC Terrain 2015-2017 3.6L, for Buick LaCrosse 2013-2016 3.6L.
- [Function& Specification] Compressor Style: for CVC, Pulley Groove Quantity: 6, Voltage: 12V, Pin: 1 Pin, Pulley Diameter (MM): 140mm/5.5in. Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
- [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
- [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).

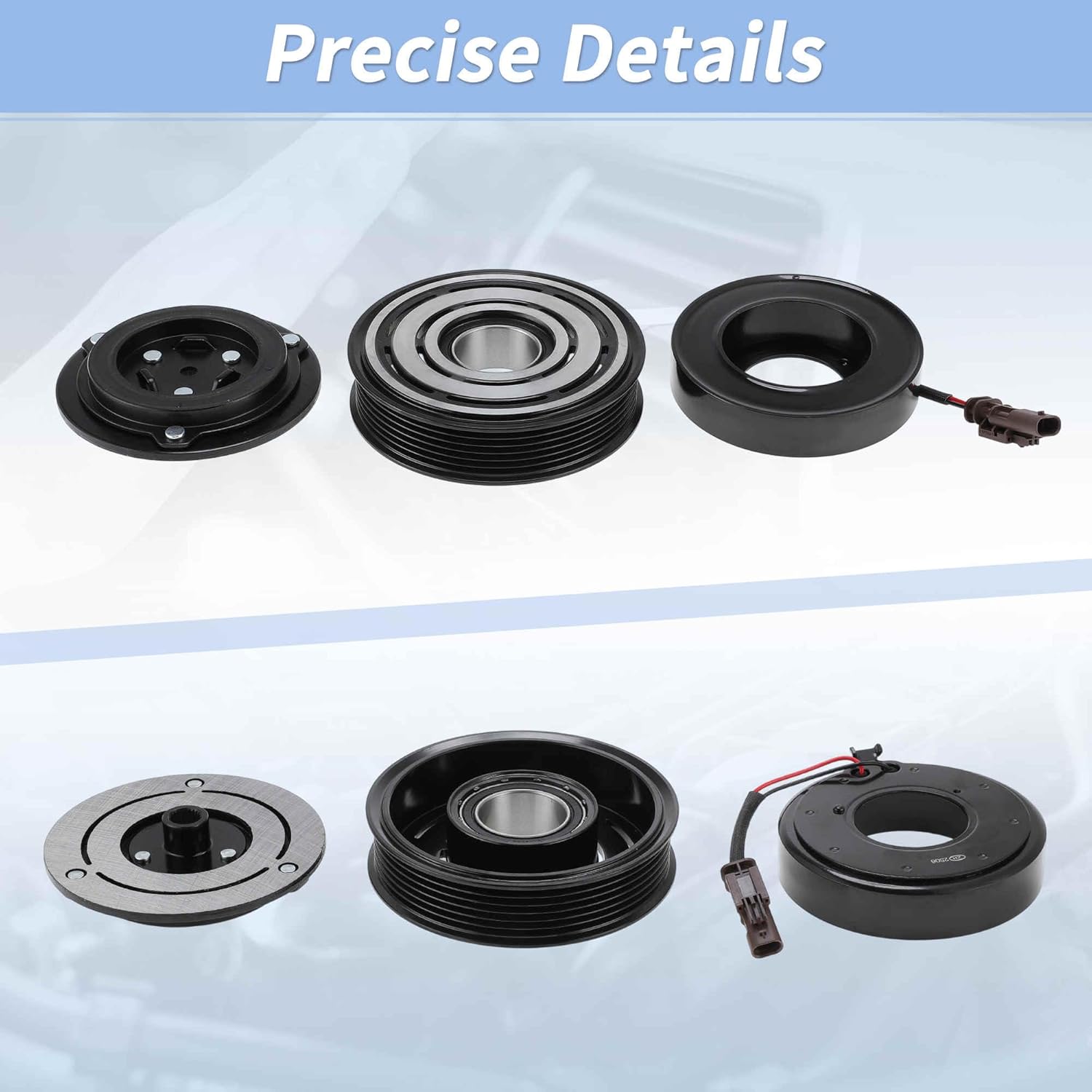

- [Package] Included 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 2x Snap Rings, 2x Spacer, 1x Bolt. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
| Brand | HEROFFIX |
|---|---|
| Model | AC Compressor Clutch Kit |
| Item Weight | 4.85 pounds |
| Manufacturer | HEROFFIX |
| Item model number | Does Not Apply |
| Package Dimensions | 6.1 x 5.91 x 2.76 inches |
| Manufacturer Part Number | 000176heroa250922 |
