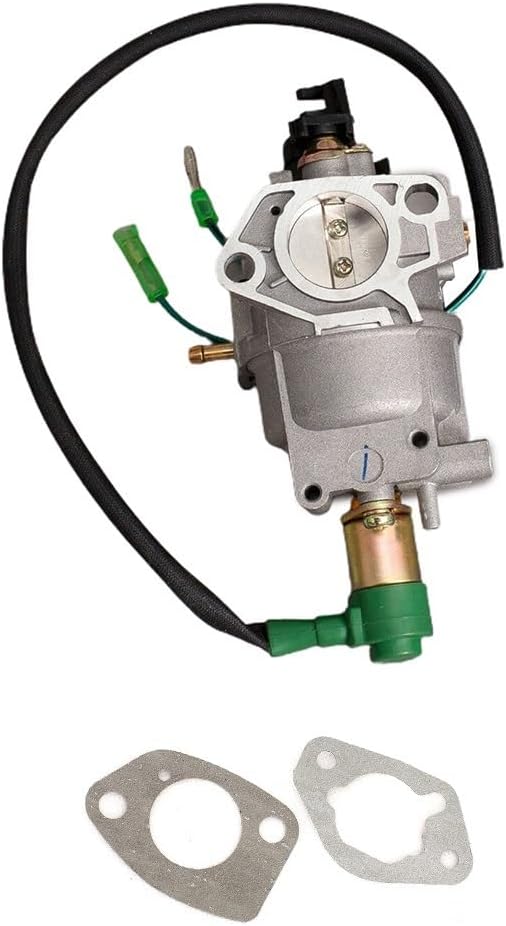

Carburetor 1-Cylinder 320/390/420cc Generator Gasoline Engine 13-15HP GX390 /92 Garden Power Tool Accessories

Features:* You will get a brand new and high quality 27mm carburetor kit!* Made of high quality materials, high quality manufacturing process, strong and durable, excellent service life* Gasoline carburetor with 27mm throttle body diameter and 12V anti-retroduction solenoid for 340-420ccm engines.*During shutdown (ignition off, but engine still turning), the anti-retro valve is disconnected from the 12V power supply via the ignition lock. This causes the needle to be pushed upward by a spring, which closes the needle valve and the main jet. Now, no further fuel enters the cylinder when the engine is running at reduced speed. This prevents unburned mixture in the hot exhaust from igniting.*Applicable to various GX340/GX390/GX420 engines.*Number: CMI C-G 3500 / 123-11Details:Material: High quality materialColor: As shown in the pictureSize:Throttle body (outlet): 27mm diameterChoke valve (inlet): 30.5 mm diameterTotal length (flange to flange): 61 mmStand bolt hole distance: 53 mmMounting hole bracket bolt: 7mm diameterThrottle actuation: by linkage mechanismChoke valve operation: by linkage mechanismIdle throttle adjustment screw: YesIdle air injector adjustment: YesFuel fitting: Ø5(6)mmFor hose diameter: Ø5mmFloat chamber removable: yes (washable)Float chamber drain plug: YesAnti-return valve: Yes, for 12V DC (direct current)Total height: approx. 160 mmWidth: approx. 80 mmPackage Contents:1 x carburetor + 2 x gasketsNote:1. Please check the size carefully before purchase.2. Due to the difference of computer monitor, the color may be slightly different from the picture above. Thank you for your understanding.3. Manual measurement, please allow 2-4mm error

• * Made of high quality materials,
• * Exquisite workmanship, professional manufacturing,
• * Stable performance, high reliability.
• * 100% new and highly matched to the equipment.
• * Easy installation, long service life
