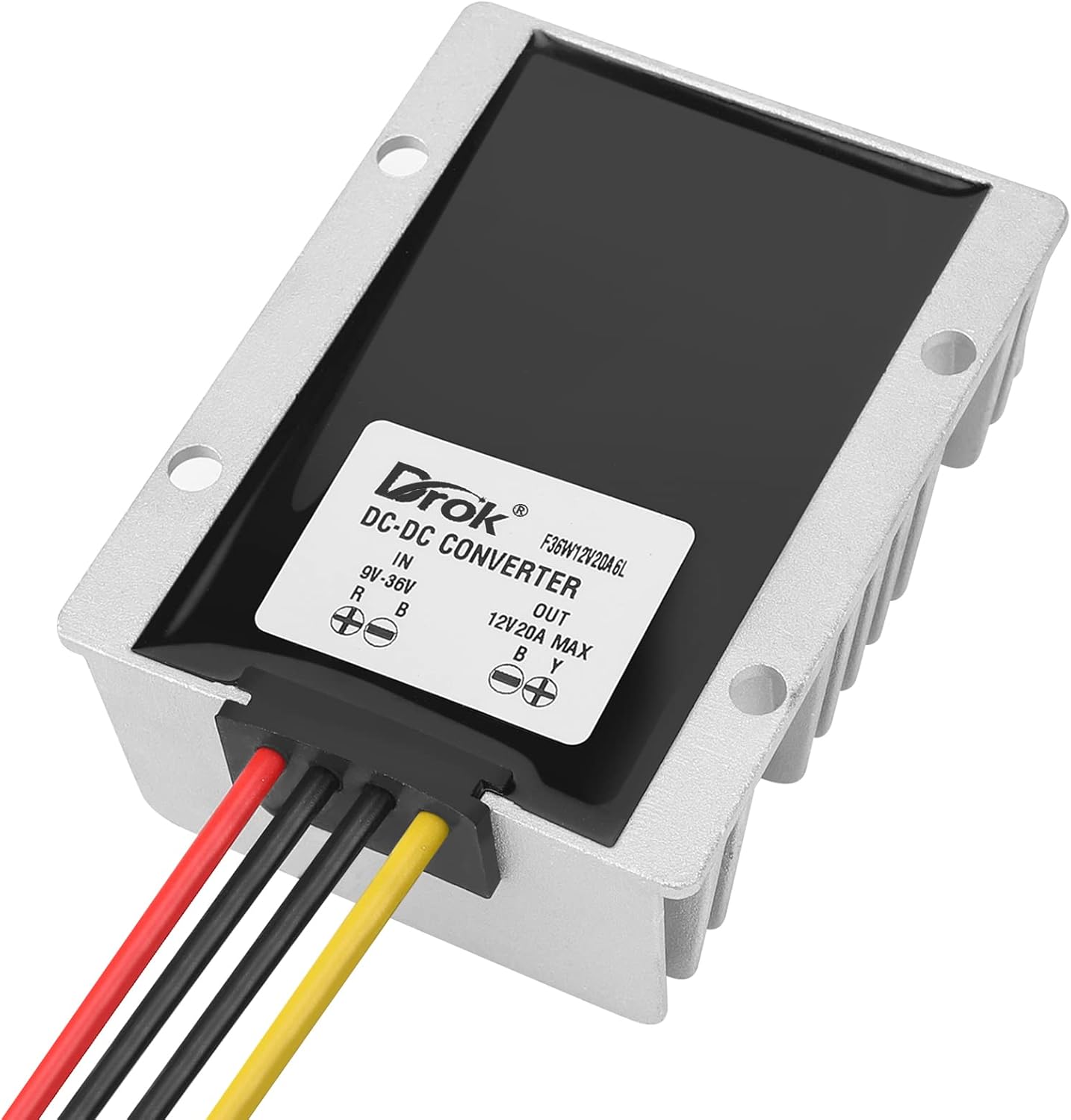

DROK Boost Buck Converter 9V-36V to 12V 20A 240W Aluminium Shell Waterproof Auto Step Up Down Voltage Regulator 12V Volt Transformer for Car Audio Solar Power System LCD Television LED Display Screen

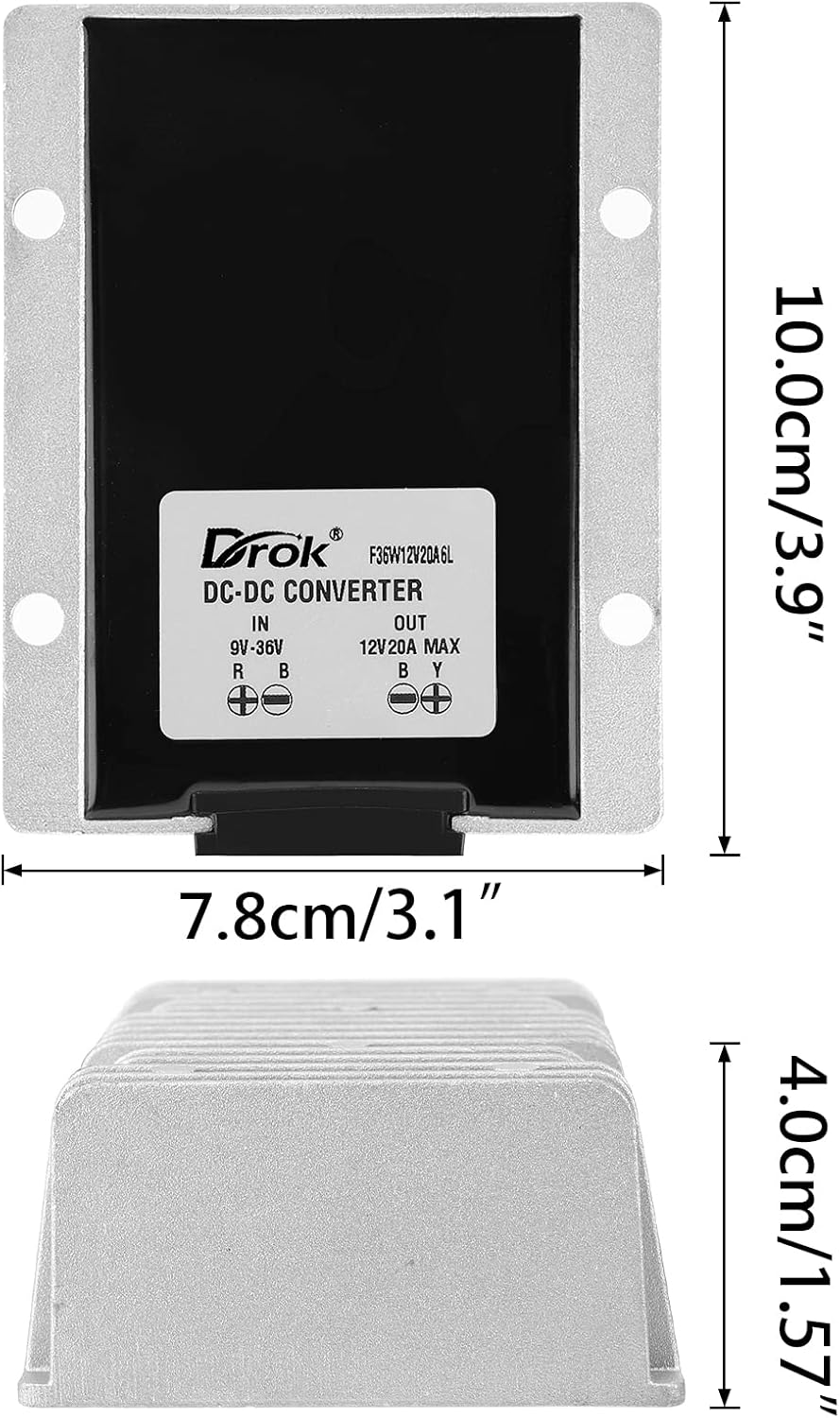

DROK DC to DC Power Supply Stabilizer Module Technical Specification: Input Voltage: DC 9V~36V (9V 12V 24V 36V) Output Voltage: DC 12V Output Current: 20A Output Power: 120W Conversion Efficiency: >90% No Load Voltage Range: Set voltage ±3% Load Regulation: ±3% Quiescent Power Dissipation: <10mA Operating Temperature: -25~65℃ Storage Temprature: -40~80℃ Operating Humidity: 10%~90% Waterproofing Grade: IP67 Over-current Protection: Yes Over-temperature Protection: Yes Short-circuit Protection: No Dimension: 2.24*1.54*0.87 inch Installation Ear Diameter: 0.16 inch Note: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working. Package Included: 1x DC-DC Stabilizer

• PARAMETER --- DROK DC-DC converter input voltage range is DC 9-36V (9V 12V 24V 36V); output voltage is DC 12V; maximum output current is 20A; output power is 240W.
• APPLICATION --- the 12v buck boost converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
• PROTECTION --- this voltage stabilizer comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
• FEATURE --- the step down power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 90% and low heat generated.
• NOTE --- Leave a margin for the power supply to ensure it can long-term stably working. This is non-isolated module, the ground wires can be tied together.
