FEELWORLD CUT6S Recording Monitor 6 inch with HDR 3D LUT Waveform 1920x1080 Pixels Touch Screen Monitor USB2.0 Recorder FHD IPS 4K HDMI SDI

Model: CUT6SScreen Size: 6" IPSResolution: 1920x1080 pixelsPixel Pitch: 0.069 (H) × 0.069 (V) (mm)Aspect Ratio: 16:9Brightness: 450cd/m²Contrast Ratio: 1000:1 Backlight: LEDViewing Angle: 80°/80°(L/R) 80°/80°(U/D)Input1 X 3G-SDI 1 X HDMI 2.01 X Micro SD Card Slot (LUT files and firmware update file import) Output1 X 3G-SDI1 X HDMI 1.41 X USB 2.0 Recording (supports the USB flash disk of FAT32 format)1 X DC Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.Audio Audio: 3.5mm Stereo HeadphoneUSB Recording Support FormatMP4 (1080P30)SDI Support Format480i| 576i|1080i@59.94/60720p@23.98/24/25/29.97/30/50/59.94/601080p@23.98/24/25/29.97/30/50/59.94/601080psf@23.8/24/25/29.7/30HDMI Input Support FormatSMPTE：720p@50/60|1080i@50/60|1080p@24/30/50/60VESA：1024×768@60|1280×720@60|1280×768@60|1280×800@60|1280×1024@60|1360×768@60|1366×768@60|1440×900@60|1600×1200@60|1680×1050@60|1920×1080@60|1920×1200@60|3840×2160@60|4096×2160@60 HDMI Output Support FormatSMPTE：720p@50/60 |1080p@24/25/30/50/60VESA：1024×768@60|1280×720@50/60|1280×768@60|1280×1024@60 |1360×768@60 |1920×1080@24/25/30/50/60General Input Voltage: DC7～14V Power Consumption: ≤11W Working Temperature: -20°C~50°C Storage Temperature: -30°C~60°C Install Way: 1/4"-20 Thread Socket ( Right, Top, Bottom) Unit Size: 152Lx86Hx23D(mm) Unit Weight: 230gNote: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

• 【USB2.0 Real-time Recording】CUT6S monitor has USB2.0 recording function, it record the video image up to 1080p30 from compatible cameras, in MP4 format over HDMI. Only need to plug USB flash disk (supports FAT32 format ) and click the red recording key to start record.
• 【Recording with LUT Effect】Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50). CUT6S can record video with LUT effect, When the LUT function is turned on. After recording finished, you can import the video to the smartphone to review or using.

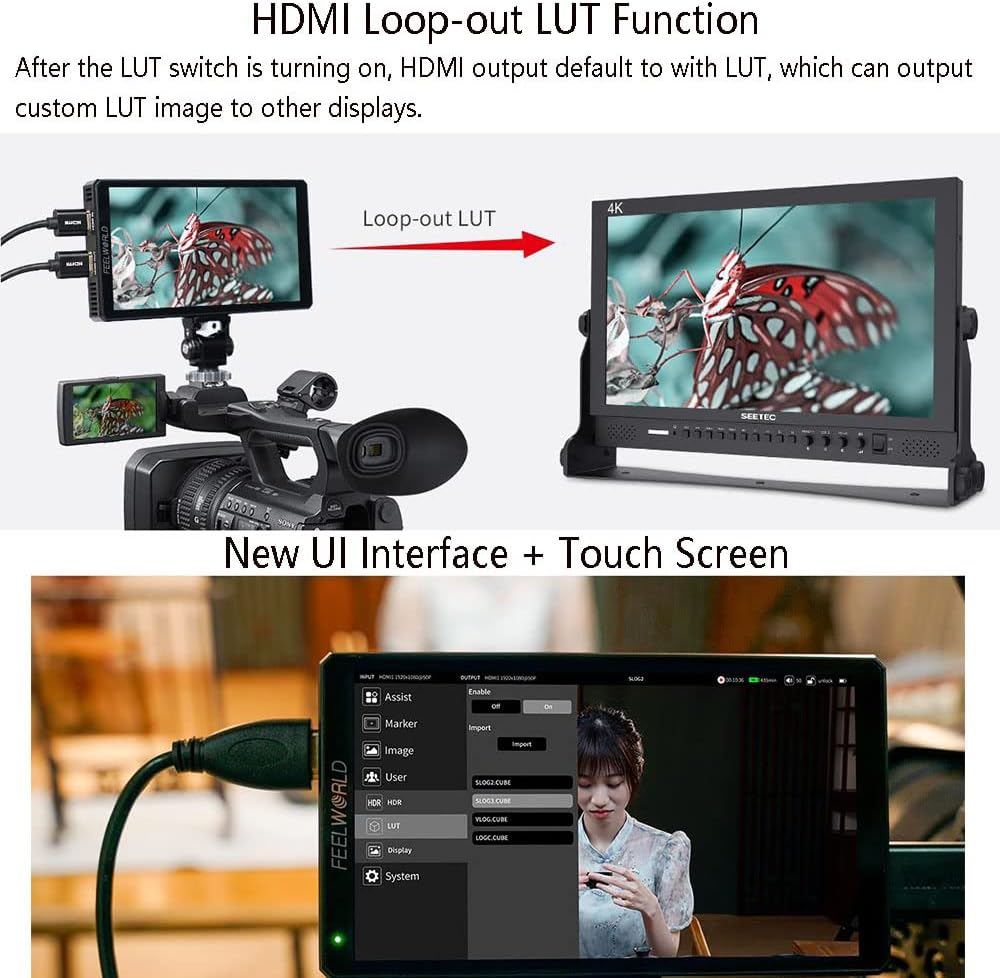

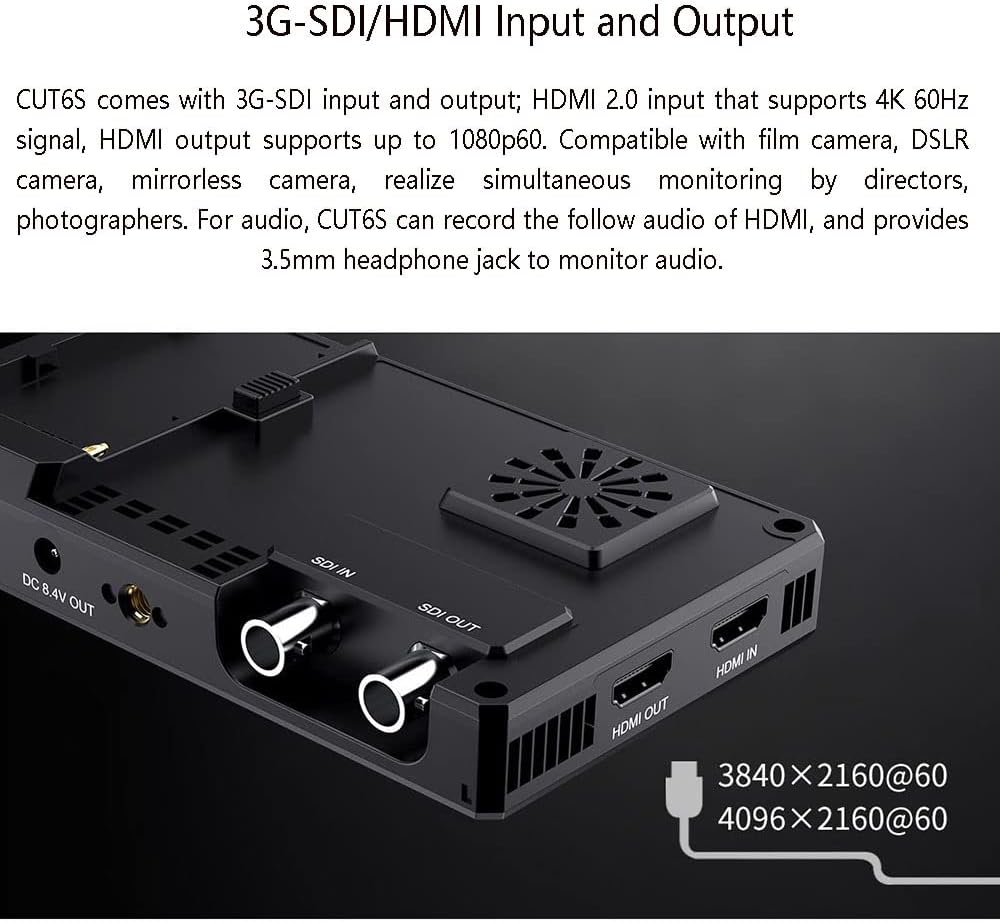

• 【3G-SDI input and output, HDMI2.0 Input + HDMI 1.4 Output】CUT6S comes with 3G-SDI input and output; HDMI 2.0 input that supports 4K 60Hz signal, HDMI output supports up to 1080p60. 【HDMI supports LUT loop-out】When you are live streaming, you can connect the CUT6 output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
• 【Smarter Tools for Absolute Precision】With waveform, RGB parade, vector scope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc, help you accurately exposure and focus every shot.
• 【Touch screen HDR monitoring】6 inch 1920x1080 full HD IPS screen, Touch screen menu operation, improve shooting efficiency, New UI interface, easier to setup. Flexible power supply DC IN 12V and NP-F battery slot, meet the different selection. DC 8.4V power out to power your DSLR camera or mirrorless camera.
