Sigma SE HF-360 FIBRE GLASS VERTICAL RADIAL FREE ANTENNA 80 TO 6 METRES

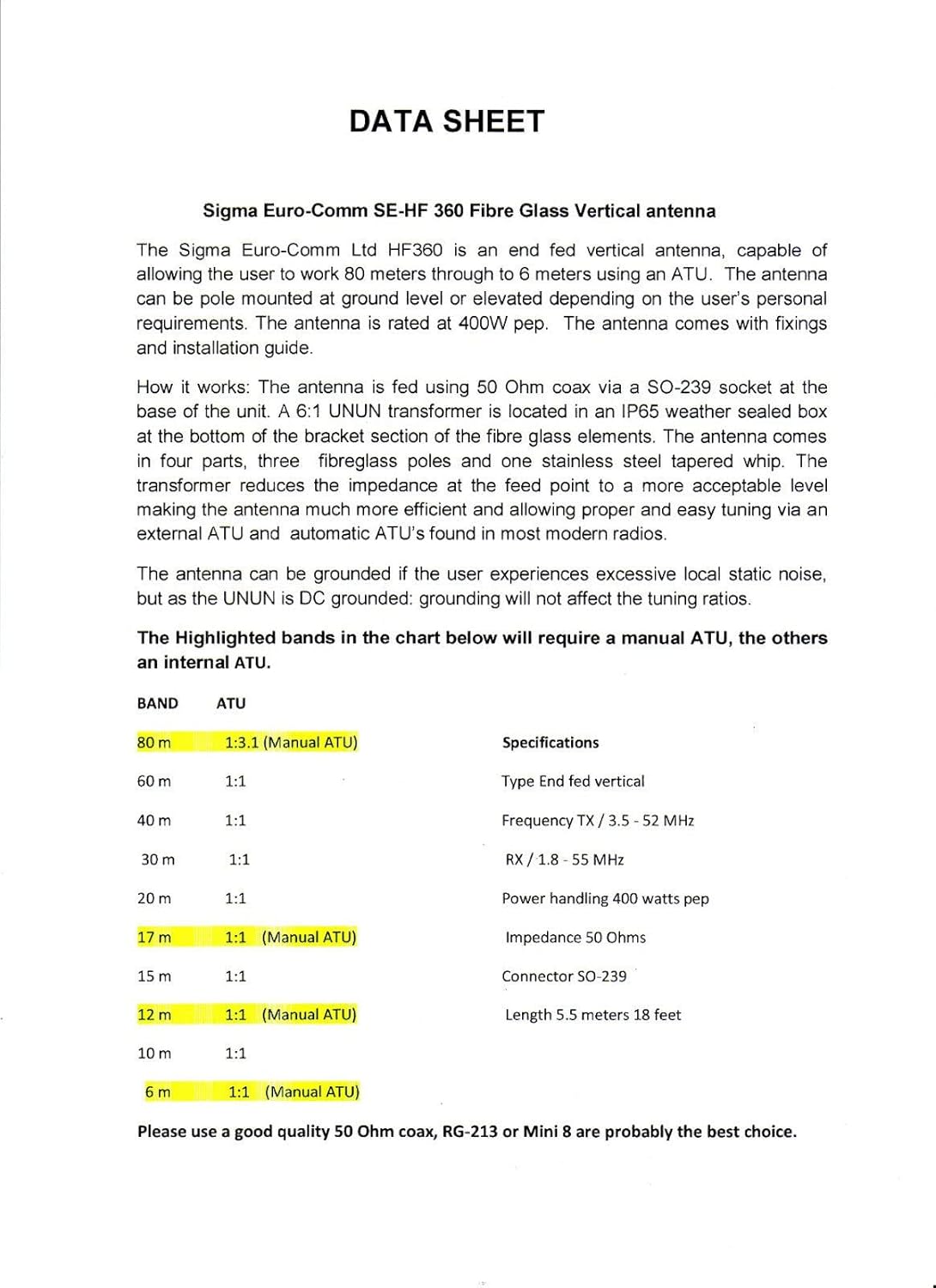

IMPORT FEES UNITED STATES AND CANADIAN CUSTOMERS: WE ARE A UK BASED COMPANY. PLEASE NOTE THAT WHEN PURCHASING ITEMS FROM THE UK THERE WILL BE IMPORT CHARGES ON THE ITEM. SOUTH AMERICAN & MEXICAN CUSTOMERS: PLEASE CONTACT US FOR SHIPPING RATES. YOU WILL ALSO FACE IMPORT CHARGES WHEN THE ITEM ARRIVES IN YOUR COUNTRY. The Sigma Euro-Comm Ltd HF360 is an end fed vertical antenna, capable of allowing the user to work 80 meters through to 6 meters using an ATU. The antenna can be pole mounted at ground level or elevated depending on the user’s personal requirements. The antenna is rated at 400W pep. The antenna comes with fixings and installation guide. The power rating is for intermittent amateur (400W CW or 400W SSB) use and not for AM broadcast or constant carrier data modes. For AM broadcast a much higher power BALUN is required." How it works: The antenna is fed using 50 Ohm coax via a SO-239 socket at the base of the unit. A 6:1 UNUN transformer is located in an IP65 weather sealed box at the bottom of the bracket section of the fibre glass elements. The antenna comes in four parts, three fibreglass poles and one stainless steel tapered whip. The transformer reduces the impedance at the feed point to a more acceptable level making the antenna much more efficient and allowing proper and easy tuning via an external ATU and automatic ATU’s found in most modern radios. The antenna can be grounded if the user experiences excessive local static noise, but as the UNUN is DC grounded: grounding will not affect the tuning ratios. The Highlighted bands in the chart below will require a manual ATU, the others an internal ATU. BAND / ATU 80 m / 1:3.1 (Manual ATU) 60 m / 1:1 40 m / 1:1 30 m / 1:1 20 m / 1:1 17 m / 1:1 (Manual ATU) 15 m / 1:1 12 m / 1:1 (Manual ATU) 10 m / 1:1 6 m / 1:1 (Manual ATU) Specifications Type End fed vertical Frequency TX / 3.5 - 52 MHz RX / 1.8 - 55 MHz Power handling 400 watts pep Impedance 50 Ohms Connector SO-239 Length 5.5 meters 18 feet Please use a good quality 50 Ohm coax, RG-213 or Mini 8 are probably the best choice.
