DS18 PRO-TSQ3IN1 1" Aluminum High Compression Neodymium Bullet Tweeter - 3 in 1 Tweeter Surface/Flush/Angle, 200 Watts 4-Ohm

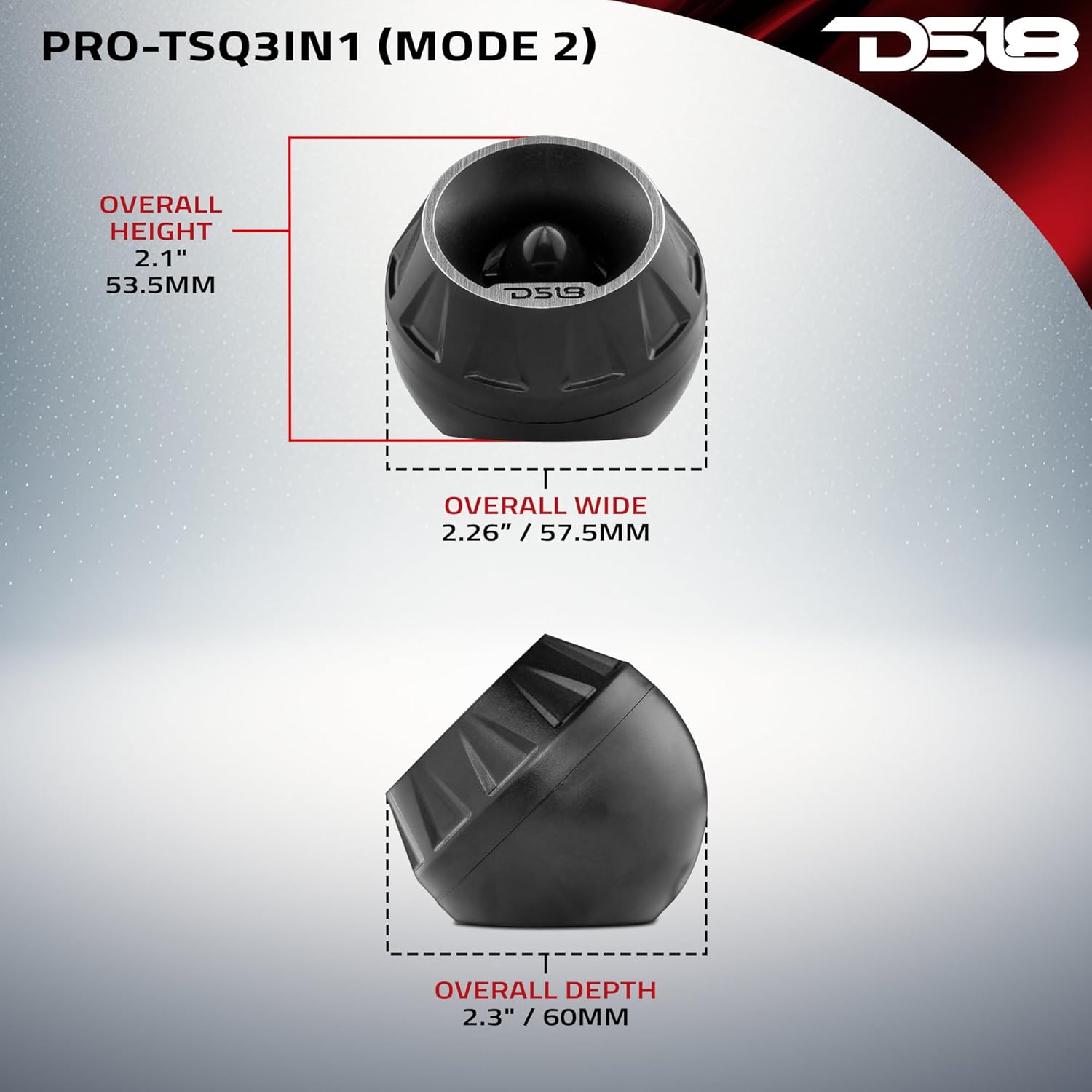

DS18 PRO-TSQ3IN1 Versatility is a necessity in audio these days. You need multiple options and looks for different situations of installation or even your mood. DS18 has modular tweeters that have multiple mounting options and also a variant of looks that are all easily changed with a flick of the wrist. This tweeter has three "modes" or ways it can be mounted with included modular pieces. Mode1, flush mount. Mode 2, angle mount. Mode 3, flat mount. Which all are very useful for all kinds of mounting options but also give the tweeters a new look for every new mount used. Peak power is set to 200w with an AES rating of 50w with a very high sensitivity of 102DB so it does not take a lot of wattage to get these loud. Specifications:Nominal Diameter Flush/ Surface 3/2.2" Nominal Impedance 4 ohms Peak Power Handling 200 Watts Program Power Handling 100 Watts AES Power Handling 50 Watts Sensitivity(1W/1W) 102 dB Frequency Response 3KHz-20Khz Recommended Hi Pass Crossover 2 KHz MOTOR Voice Coil Diameter 1" Voice Coil Former Material Kapton Winding Material CCA Diaphragm Material Aluminum Alloy Frame/Body Material ABS Magnet Material Neodymium MEASUREMENTS MODE 1 (FLUSH MOUNT) Overall Diameter 2.95" Overall Depth 1.39" Front Mount Baffle Cutout 2.26" Mounting Depth 1" MODE 2 (ANGLE MOUNT) Overall Wide 2.26" Overall Height 2.1" Overall Depth 2.3" MODE 3 (FLAT SURFACE MOUNT) Overall Diameter 2.26" Overall Height 1.4"

• Fully modular mounting design with included hardware.
• Each new design give the tweeter a fresh look.
• 200w peak and 50w AES power handling so not a lot of power is required.
• 1" aluminum CCA voice coil with Neodymium magnet structure.
• Never stop innovating attitude - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.
