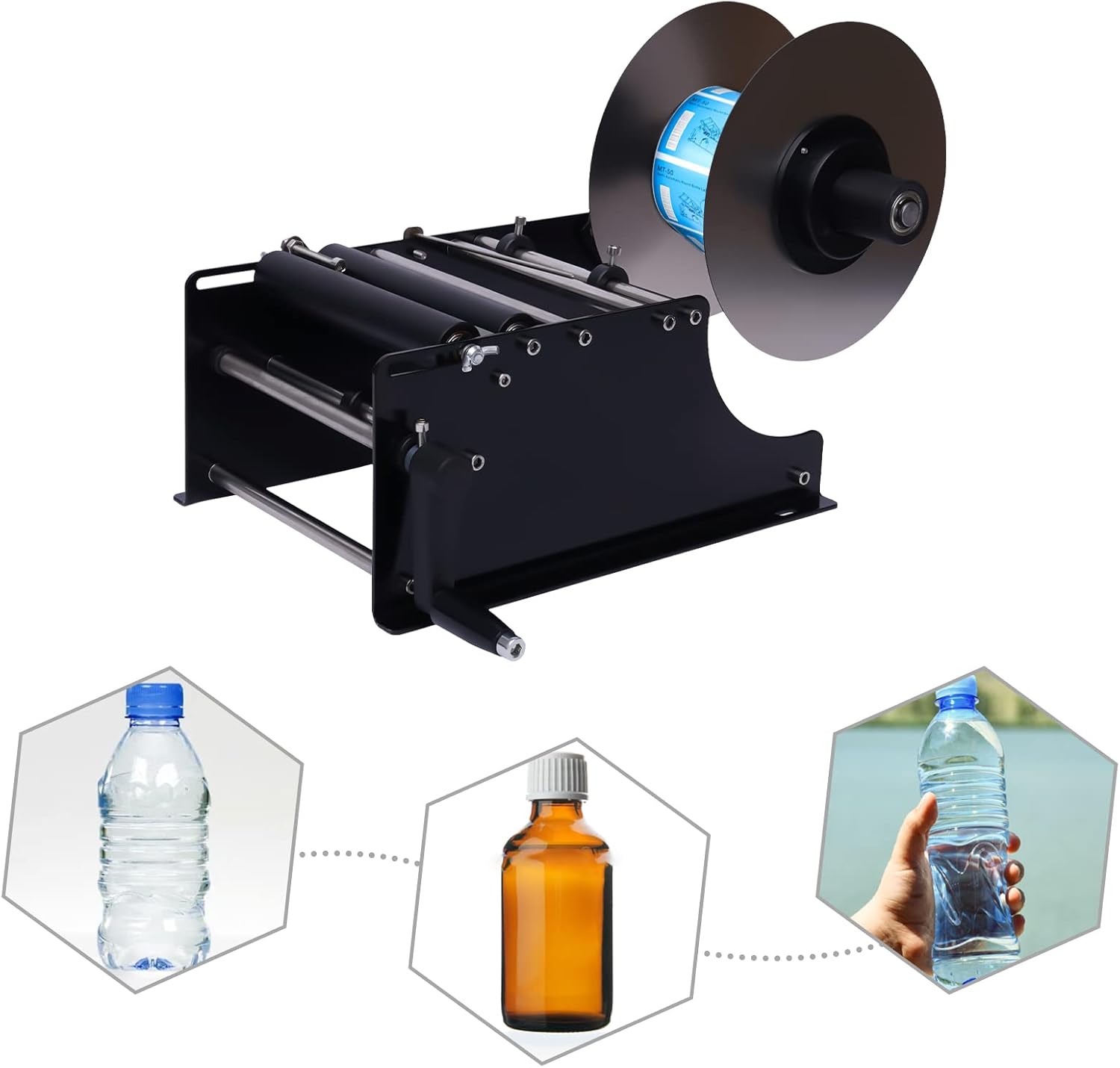

Manual Label Applicator, Round Bottle Labeling Machine, Sticker Label Printer Packing Machine, Label Dispenser Suitable for Bottle Diameter 0.78-4.72 Inches (with Pressing Bar), Rapidly Label in

ApplicationIt can be used to apply pressure-sensitive adhesive labels on round bottles, round cans, or cylinders. It is suitable for round bottles of 0.79in-4.72indiameter, such as PET bottles, plastic bottles, glass bottles, metal bottles, etc. It is widely used in cosmetic, beverage, food, food, medical, and other industries to rapidly increase production efficiency as well as improve label quality.SpecificationModel: MT-30Color: Black Material: IronStyle: ModernProcess:High-temperature Baking Paint ProcessMounting Type:Desktop Mount, Freestanding Accuracy: ±0.5mm/0.01inchSuitable Bottle Diameter: 2-12cm(0.79in-4.72in)Label Speed: 10-30pcs/minLabel Roll Inner Diameter: ≥75mm/2.9inchLaber Roll Out Diameter: ≤250mm/9.8inchLabel Width: 10-110mm/0.3-4.3inchLabel Length: 10-300mm/0.3-11inchNet Weight: 5kg/11.02lbsGross Weight: 5.5kg/12.13lbsPackage Size: 42*25*28cm/16*9.8*11.0inchInstallation 1.Attach the label cartridge to the side of the machine with screws and nuts.2.Attach the nut and the label cartridge with a silicone ring.3.Fix the paper supply tray and the middle part with screws.4.Insert the paper supply tray into the label cartridge.5.Attach the hand joystick to the side of the machine with screws.6.Attach the remaining part of the hand joystick.7.The installation is complete. How to Use1.Use an allen key to unscrew the paper supply tray.2.Insert the label into the label roller and reattach the paper supply tray. 3.Pull out a piece of label paper and insert it into the machine in sequence.4.Place the bottle on top of the machine.5.Rotate the hand joystick to complete the labeling.Package Included1* Labeling Machine2* Paper Supply Trays1* Label Cartridge1 Set* Hand Joystick3* Allen Keys1* Silicone Ring11* Screws2* Label Tray ClampsOther Accessories for Assembly Notes1.It's suggested that you put a piece of tape at the beginning of the label to easy pulling.

• High efficiency: This labeling machine features an ergonomically designed symbolic hand rocker that adjusts the speed of the labeled bottle. The labeling efficiency is about 10-30 PCS/min (depending on the bottle), which is both efficient and time-saving.
• High accuracy: The labeling accuracy of This labeling machine can reach ±0.5mm/0.01 inch, which is enough to arrange the label position of the product.
• Save effort: With This labeling machine, you won't have to worry about subway labels. You just need to put the bottle on it, and then shake the hand lever to complete the labeling work easily, very labor-saving.
• Feel free to do DIY: You can use the Bottle Labeling Machine to attach any label you want on the bottle, including function labels, parameter labels, product labels, and so on. It can bring you a lot of fun.
• Space saving: Our Bottle Labeling machines can be self-contained or mounted on a desktop. If you install it on a desktop, it won't take up any floor space and can save you a lot of space.
