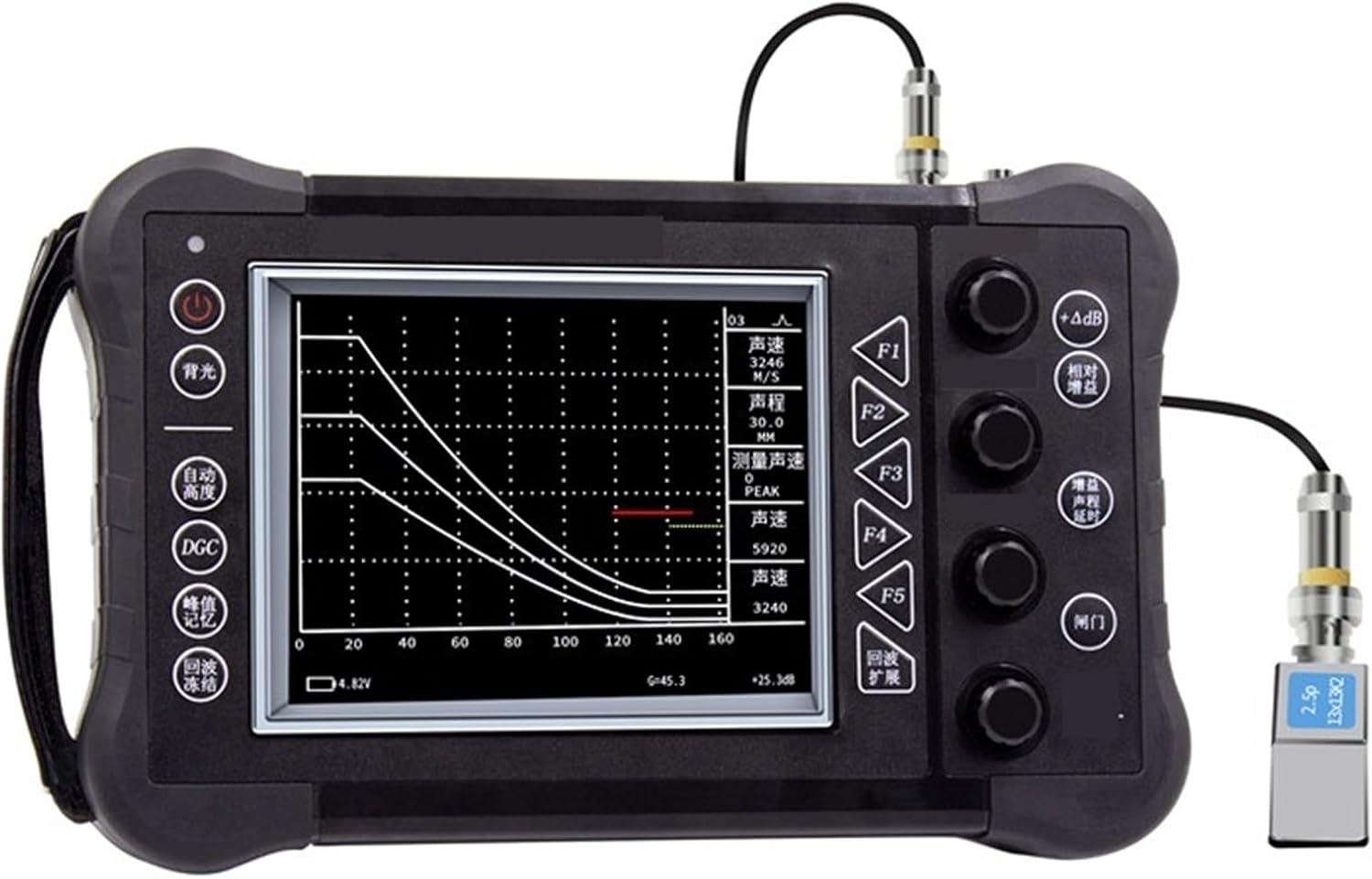

Portable flaw detector, HY-CT350 Portable Digital Ultrasonic Flaw Detector For Metal And Weld Inspection,for Welding flaw detection

Product Parameters:Material Sound Velocity: 1000-9999 msMaximum Sound Path: 6100 mm, Full-Scale Minimum Sound Path: 4 mm (Steel, Longitudinal Wave, Reflection Mode)Frequency Range: 0.4-10 MHz / 0.7-1.4, 1.8-3.5, 4-6 MHz (Bandpass)Gain Range: 0-110 dB (0.1 dB, 1 dB steps)Delay Range: 0-6000 mmK Value Range: 0.20-5.00Suppression Range: 0-50%Increment: 0-20 dBOffset: -20-20 dBLength Measurement Line: -20-20 dBQuantity Line: -20-20 dBReject Line: -20-20 dB<;3%<;0.3%Transmitted Pulse Width: Negative Square Pulse 0.05-0.6 μs Adjustable (0.01μS step size)Transmitted pulse internal resistance: No more than 10ΩProbe damping resistance: Approximately 120Ω, fixedAmplifier input: Gain 0dB, approximately 50V peak at 100% screen height; Input noise: Approximately 50μV peak (wideband); Bandwidth noise: Approximately 16nV√Hz peakDigital sampling: 8-bit real-time, 50MHz, equivalent to 200MHz (hardware implementation)Display: Detection +, Detection 1, Full Wave (320x240, 5.7-inch), LED backlightLCD refresh rate: 50HzDynamic range: >32dBSensitivity margin: >58dB (probe dependent)Resolution: >26dB (probe dependent)Thickness resolution: 0.02mm (for thicknesses less than 650mm)Power consumption: Approximately 2W (for 350mm thickness) Sound range, strong backlight, and fast transmission repetition rate) about 1.5W (350mm sound range, weak backlight, and slow transmission repetition rate)

• Compact and portable design for easy field and workshop inspections
• Advanced ultrasonic technology detects internal metal flaws accurately
• User-friendly digital interface with clear display for real-time results
• Suitable for weld crack, porosity, and defect detection in various metals
• build ensures reliable performance in industrial environments
