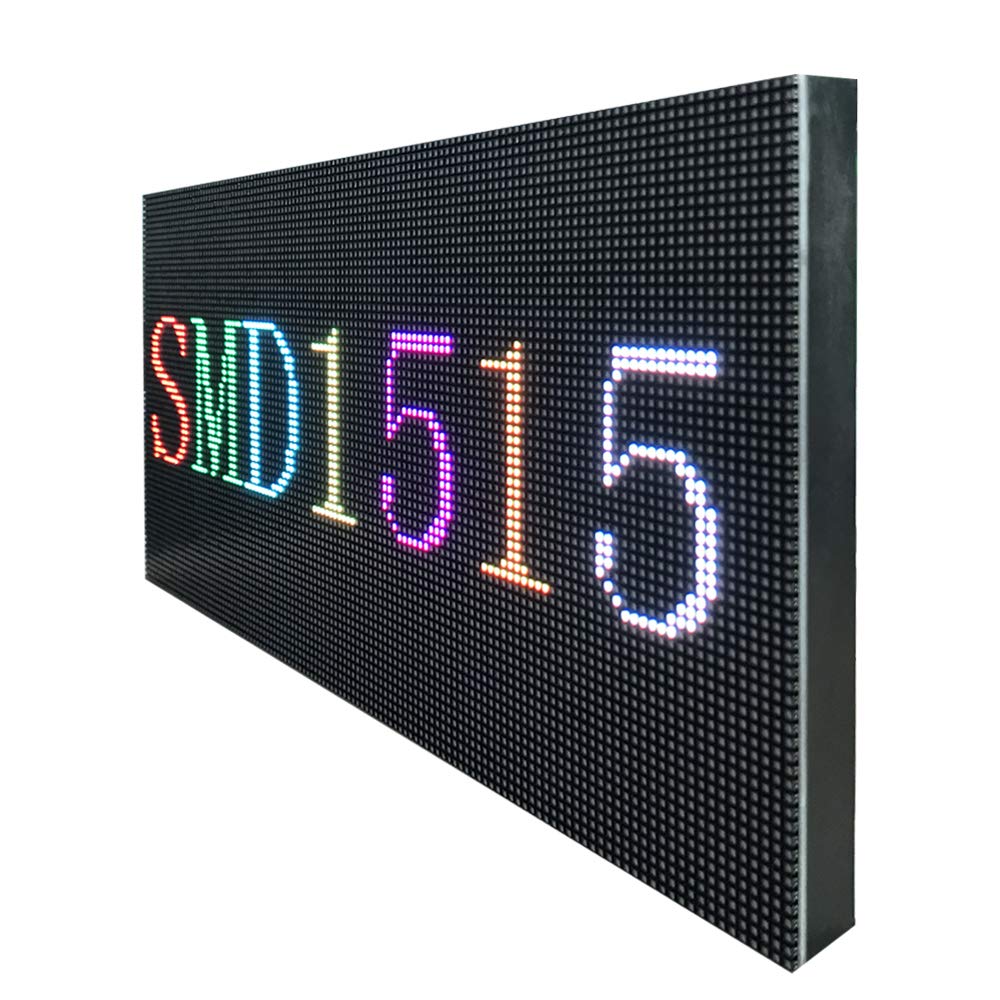

P2mm Small Pitch Indoor 128x64 Pixel SMD Stage LED Module, Led Screen Panel, Module Size 256mm128mm, Scan Mode 1/32 Scan, ABCDE Panel (RGB, 256128mm) (RGB, 256128mm)
4.3 (71 items)
Limited Time Sale$35.98 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218534973 | Release Date | 2026/05/03 | List Price | $23.98 | Model Number | 218534973 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LED Module Item Parameter Model Number: P2-32S Module size: 256mm*128mm Pixel pitch: 2mm Pixels Density: 250000 dots/m2 Pixel configuration: 1R1G1B Package mode: SMD 2IN1 -1515 Pixel resolution: 128dots(W)*64 dots(H) Max Power: 23W Module thickness: 13mm Weight: 0.352KG Drive type: Constant drive Scan mode: 1/32scan Port type: HUB75E Brightness of white balance: ≥800cd/㎡ Best viewing distance: 2M～30M Best viewing angle: 140°(W) 120°(H) Temperature: storage:-35℃～+65℃ working:-20℃～+60℃ Relative humidity: 10%-95% Cabinet Thickness: 65mm Power: Working voltage: Input 110V-240V, Output AC5V±10% Average Power consumption: <280W/㎡ Max.Power consumption: <700W/㎡ Current: <15mA(single LED) Control system: CPU: Pentium4 or above P4 Operation system WIN98/2000/NT/XP/WIN7/WIN10 Control method: Synchronization/Asynchronous Main technical parameter Driving device Constant drive IC Refresh frequency: >1920HZ Grey scale/colors: 65536,16.7M 65536gray level/16.7M colors MTBF: >9000hours Power switch: Automatic switch
- 1. Excellent visual effect, better viewing effect for text and graphic or video
- 2. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range;
- 3. High contrast ratio and good evenness, high uniformity,without mosaic
- 4. Resist of the high temperature and antioxidation and anti-statiic;
- 5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintenance.
| Item Weight | 10.6 ounces |
|---|---|
| Manufacturer | Azerone |
| Item model number | P2-256*128mm indoor |
| Product Dimensions | 10.08 x 0.51 x 5.04 inches |
