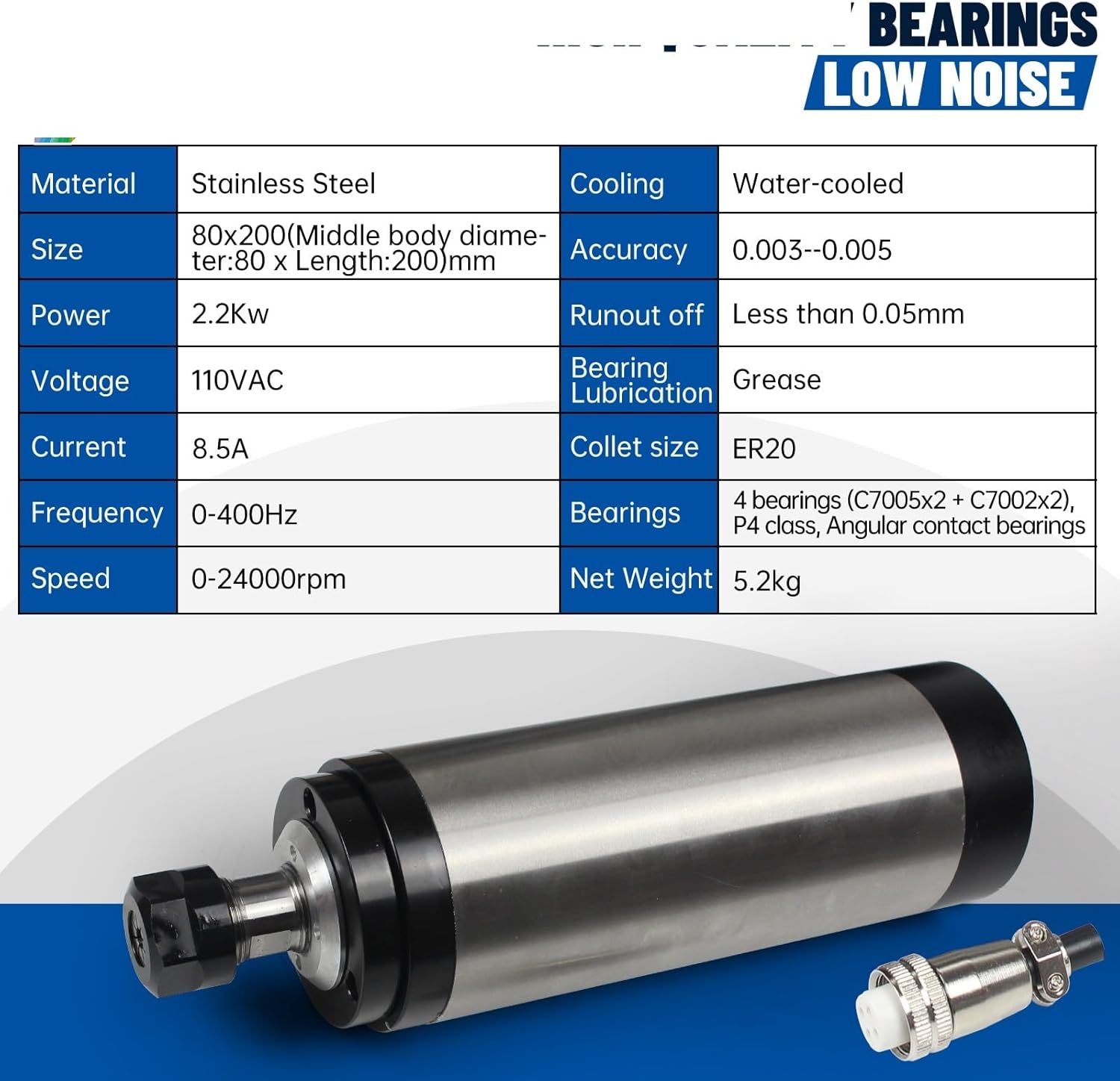

Kit Water Cooled Cooling Spindle Motor, 2.2KW ER20, For Woodworking Router, Milling Machine(2.2KW ER20 220V)

Package include:1 x Water cooled spindle motor 2.2KW ER201 x HY inverter1 x 80mm clamp1 x 5M water pipe1 x 80W water pump1 x set of ER20 colletProduct show:Size: 80x200mmSpeed regulation mode: The spindle speed can be changed by three-phase output inverter and adjusting the frequency of the inverter.Cooling method: water coolingPower: 2.2kwVoltage: 220V 380VCurrent: 8AFrequency: 0-400HzSpeed: 0-24000rpmRunout: less than 0.01mmDiameter (mm): 804 fully sealed angular contact bearingsChuck: ER20Grease lubricationMain purpose: used for wood, bamboo, PVC, PMMA, plastic, bamboo, two-color board (ABS) and other non-metallic carvings.When the spindle is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together. The specifications and parameter settings of the inverter match the spindle parameters.Before using the spindle every day, it must run at low speed for 15-20 minutes. Clamp the cutter on the spindle, the chuck nut, chuck, and cutter must be clean enough. The shank inserted into the chuck must be larger than 15mm.The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will quickly break.The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.1. Different cooling methods: The water-cooled spindle motor uses water circulation to coo

• High efficiency and energy saving： spindle motor adopts advanced cooling system, which effectively reduces energy consumption and better protects the motor, realizing high efficiency and energy saving
• Advantages of The Spindle：The design of the cover on the front of the spindle and the use of stainless steel body can effectively prevent water
• SPINDLE ADVANTAGE ：Less noise, significantly extend working life 3 times longer than ordinary spindle motor
• Stability： Advanced dynamic balance technology effectively reduce the noise and increase stability in the working process
