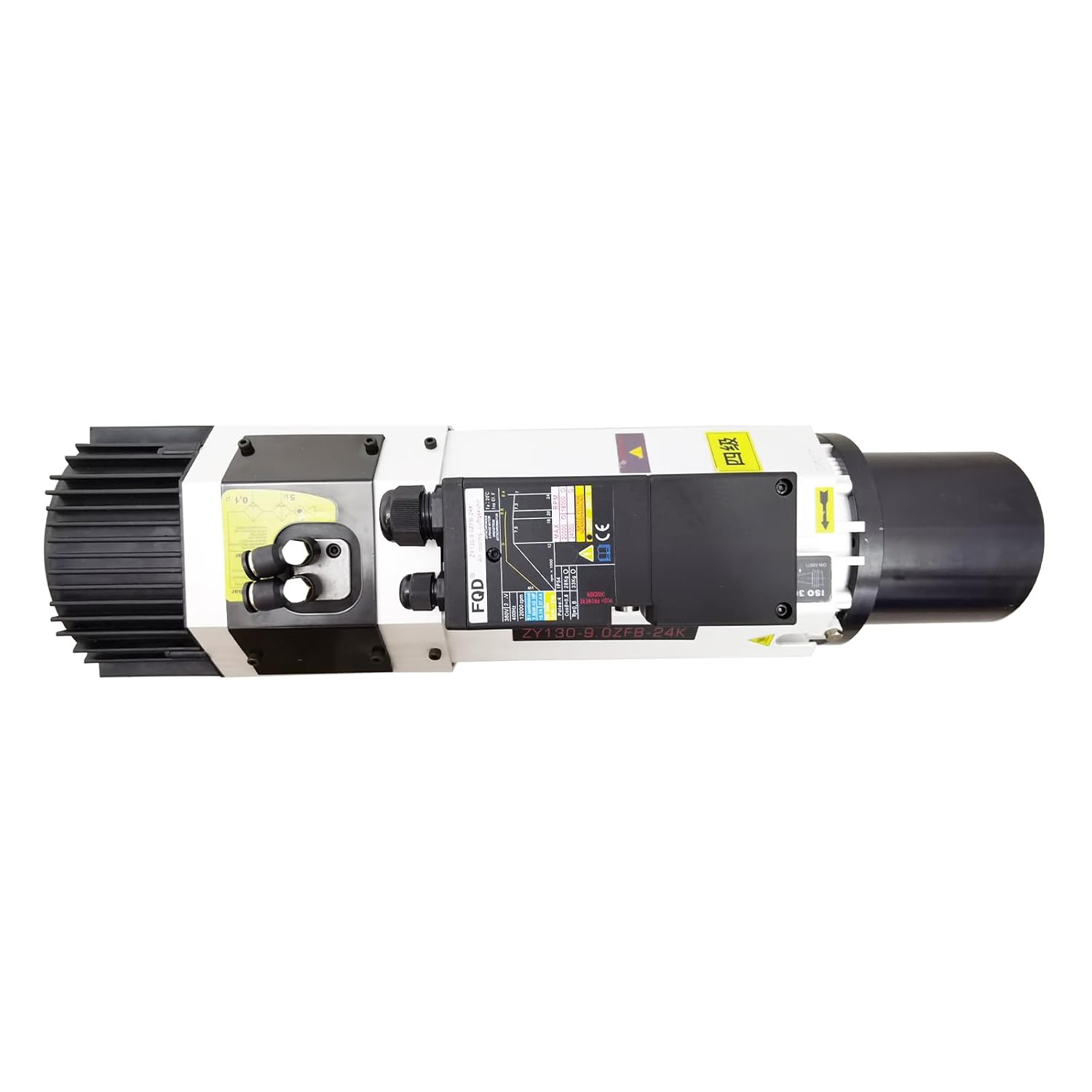

Air Cooled Spindle Motor with VFD Inverter CNC 24000Rpm Mill Kit High Precision Automatic Tool Change Machine ISO30 ATC Air Cooled Spindle Motor 220V 9KW

Product Overview Through automation and high precision design, the ATC Air Cooled Spindle Motor significantly improve productivity, machining accuracy and equipment utilization, while reducing maintenance costs and manual intervention, is an important and indispensable equipment in modern manufacturing. Product Parameters Voltage: AC220V Phase number: 1 Power: 9kW(12HP) Current: 15.7-27.4A Max speed: 24000rpm Tool holder: ISO30 Cooling type: Fan cooling Lubricate: Grease Cone hole beat: 2UM Pole number: 4 Inverter input voltage and frequency: AC 220V, 50-60Hz, 1PH Inverter output voltage and frequency: AC 0-220V, 0-1000Hz, 3PH Power of inverter: 9kW Rated current of inverter: 40A Net weight/Gross weight: 82.2lbs(37.3kg)/86.6lbs(39.3kg)

• Para: Voltage: AC220V, Phase number: 1, Power: 9kW(12HP), Current: 15.7-27.4A, Max speed: 24000rpm, Tool holder: ISO30, Cooling type: Fan cooling, Lubricate: Grease, Cone hole beat: 2UM, Pole number: 4, Rated current of inverter: 40A
• Adopts high precision ceramic ball bearings, high speed, small vibration, low noise, and durable.Automatic tool change, high speed, high efficiency and high stability operation.
• The spindle motor uses air cooling, no need to connect the water pipe, suit for woodworking processing.
• The independent cooling fan can take the heat away from the spindle heat sink, thereby reducing the temperature of the spindle. This is not only conducive to the stable operation of the spindle, but also to extend the service life of the spindle. There are some vents on the machine, which can timely discharge the excess heat generated by the machine, prevent the temperature from being too high, and protect the machine.
• The maximum speed of the air-cooled spindle can reach 24,000 RPM, which greatly improves the production efficiency, and the long shaft is convenient to install the dust suction system.
