220V Industrial Dust Collector Mobile Pulse Jet Bag Filter with 2 Cartridges, 2200m³/h Airflow 99.8% Efficiency, Pulse Vacuum Cleaner for Laser Cutting, Grinding, CNC Metal Dust Collection

Item included: 1set Mobile Industrial Pulse Dust Collector 220V 2.2KW (134175) Parameter Voltage: 220V Power: 2.2KW Processing air volume: 2200m²/h Air pressure: 2200PA Number of filtering barrels: 2pcs Filtering area: 10m² Filtering fineness: 0.3-1 micrometer Filtering efficiency: 99.8% Filtering material: Polyester fiber PTFE Compressed air pressure: 0.4-0.6Mpa Compressed air cylinder: 5L per air cylinder Filtering mode: Negative-pressure external filtration Dust cleaning mode: Pulse jet back blowing + drawer dust collection Dia of air inlet: 100-150mm (3.9-5.9 inches) Dia of air outlet: 125mm (4.9 inches) Machine size: about 23.6x24.8x62 inches Net weight: 235.4LBs Overall introduction The industrial pulse dust collector is an industrial device that separates suspended particles from gas through a physical filtration mechanism. Its core functions include dust capture, storage and emission purification of air. The dust collector adopts the negative-pressure external filtering mode and the pulse jet back blowing and drawer dust collection modes to achieve efficient filtering and effective dust collection. Equipment power supply wiring (1) Please refer to the picture, open the top door, connect the live wire to L1, the neutral wire to L2, and the earth wire to the grounding identification position, and then connect it to the female wire on the device. (2) Confirm whether the power supply is consistent with the required power supply of the device. (3) Power on the device and check if the power indicator light of the device is on. (4) Confirm that the rotating direction of the motor is consistent with the mark (if the running direction of the motor is not consistent with the mark, it will cause the air exhaust of the air inlet to be small, please exchange the power phase sequence).

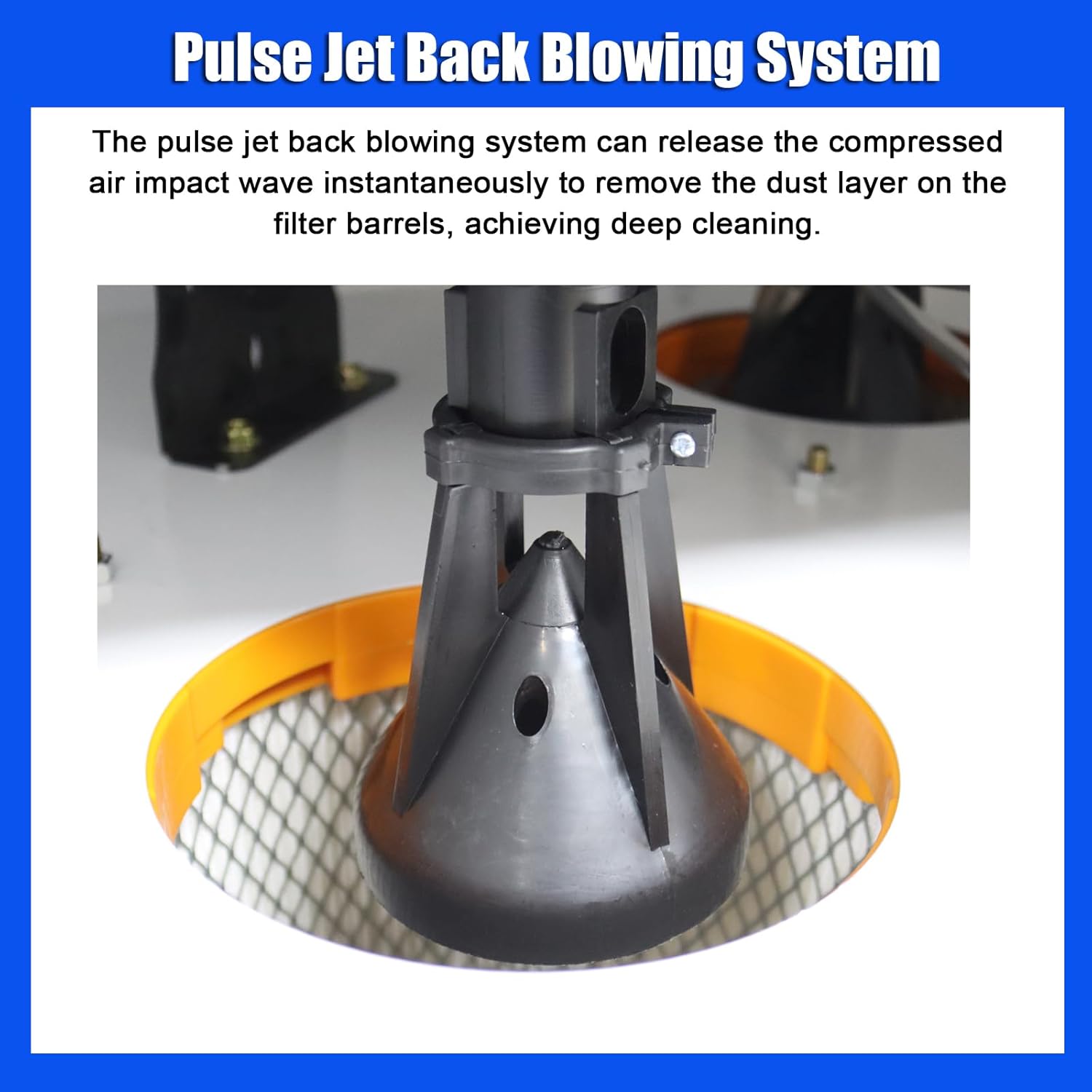

• Efficient Pulse Jet Dust Collection: This industrial dust collector features a high-efficiency pulse jet back-blowing system paired with polyester fiber PTFE filter cartridges, achieving 99.8% filtration efficiency down to 0.3 µm. With 2.2KW motor and 2200 m³/h airflow, it delivers robust suction for capturing fine particles from laser cutting smoke, metal grinding, CNC machining and workshop dust.

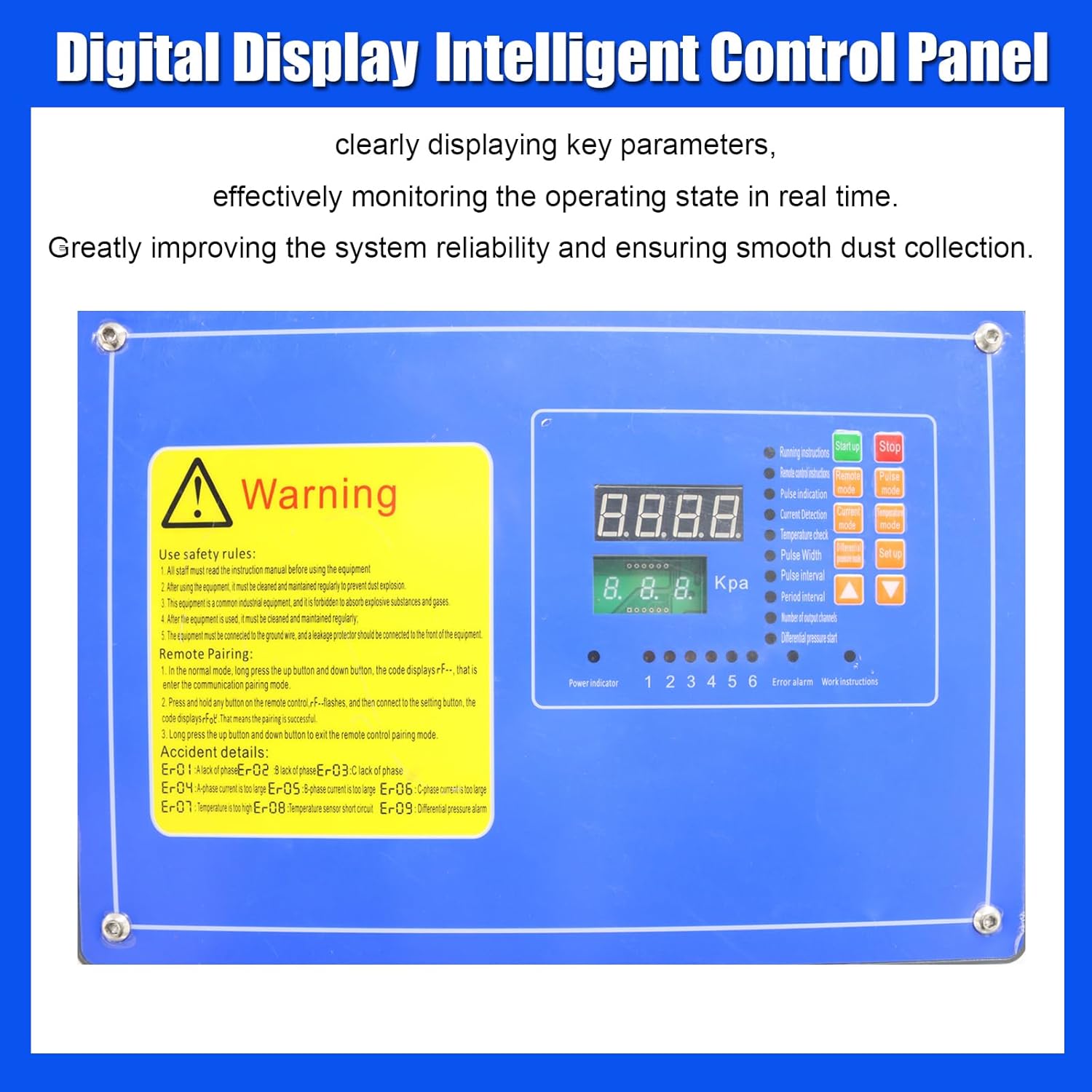

• Intelligent Control & Real-Time Monitoring: Equipped with digital control panel, the system clearly displays key parameters, such as pulse interval and pressure, enabling real-time operation monitoring. The centralized electric box supports automated operation, and enhances safety with built-in electrical and equipment protection functions.
• Reliable All-Aluminum Direct Air Blower: The integrated all-aluminum direct-drive blower supplies oil‑free compressed air directly for pulse cleaning, making the system more compact, reliable and maintenance‑friendly. This design ensures clean blowing air and prolongs filter life.
• Convenient Mobility & Easy Maintenance: Design with high‑quality universal wheels and brakes, so this pulse jet dust collector can move smoothly and lock securely in place. The drawer‑type dust storage bin adopt simple structure and the sealing design, making the cleaning process easier and preventing dust re‑entrainment.
• Durable Structure for Reliability Use: Constructed with a robust steel frame, the mobile industrial pulse dust collector adopt an air pressure gauge for real‑time monitoring and over‑pressure protection. Its modular design covering filtration, cleaning, storage and mobility, ensures long‑term reliability and safe operation in demanding industrial environments.
