1pcs CF160 ConFlat Flange 8.00 Inch (6 Bolt) Stainless Steel Vacuum Fitting for Ultra-High Vacuum Applications(CF40)

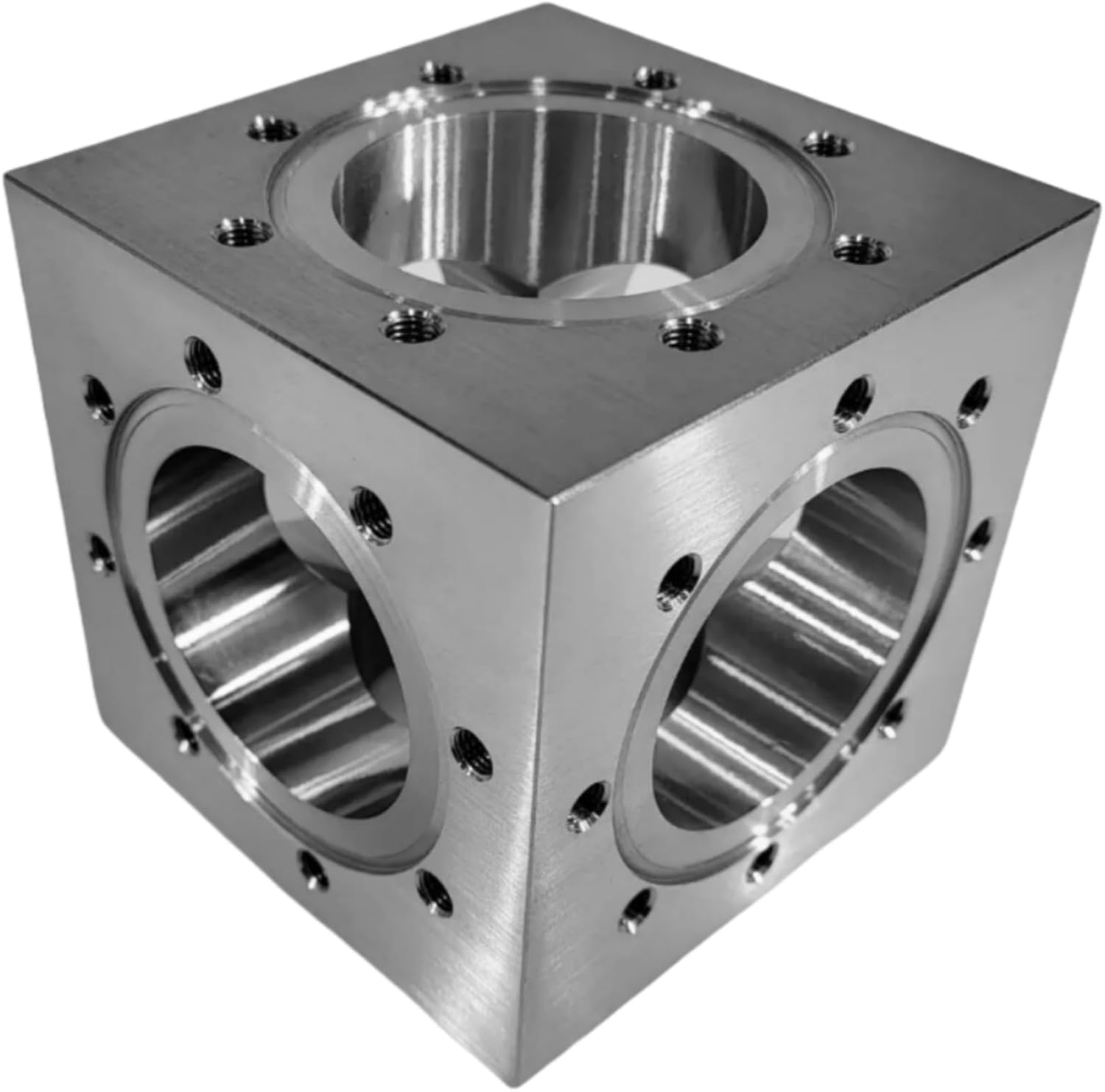

These 6-Way Cube vacuum fittings are CF 8.00 inch, 8.00 inch (CF) bored through 6 hole flanges.ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 1x10-10 torr and can be to 450°C for bake-out.In Europe and Asia, sizes are given by tube inner diameter in millimeters: CF16, CF35, CF50, CF63, CF100, CF150, CF200, CF250. These vacuum fittings are made of resistant stainless steel.Specifications:CF Flange Size: CF160, CF 8.00 inch(6 bolt) 6 sidedDimensions: A= 202.2mm , B= 152.4mm Thread Size: 8-32 Thread Depth: 8mmUltimate vacuum: Approximately 1.0E-13 Torr (UHV-XHV range)These vacuum fittings are made of resistant stainless steel.Package Contains: 1 X CF160, CF 8.00 inch (6 bolt) 6 sided

• CF160 ConFlat flange devised for ultra-high vacuum applications, ensuring optimal sealing and reliability.
• Constructed from stainless steel, this flange withstands harsh environments and maintains integrity under extreme conditions.
• Features a 6-sided devise with a diameter of 8.00 inches, suitable for a variety of vacuum systems requiring robust connections.
• Achieves ultimate vacuum levels of approximately 1.0E-13 Torr, making it ideal for UHV and XHV applications.
• Includes a copper gasket and knife-edge flanges for superior vacuum sealing and can endure temperatures up to 450°C for effective bake-out processes.
