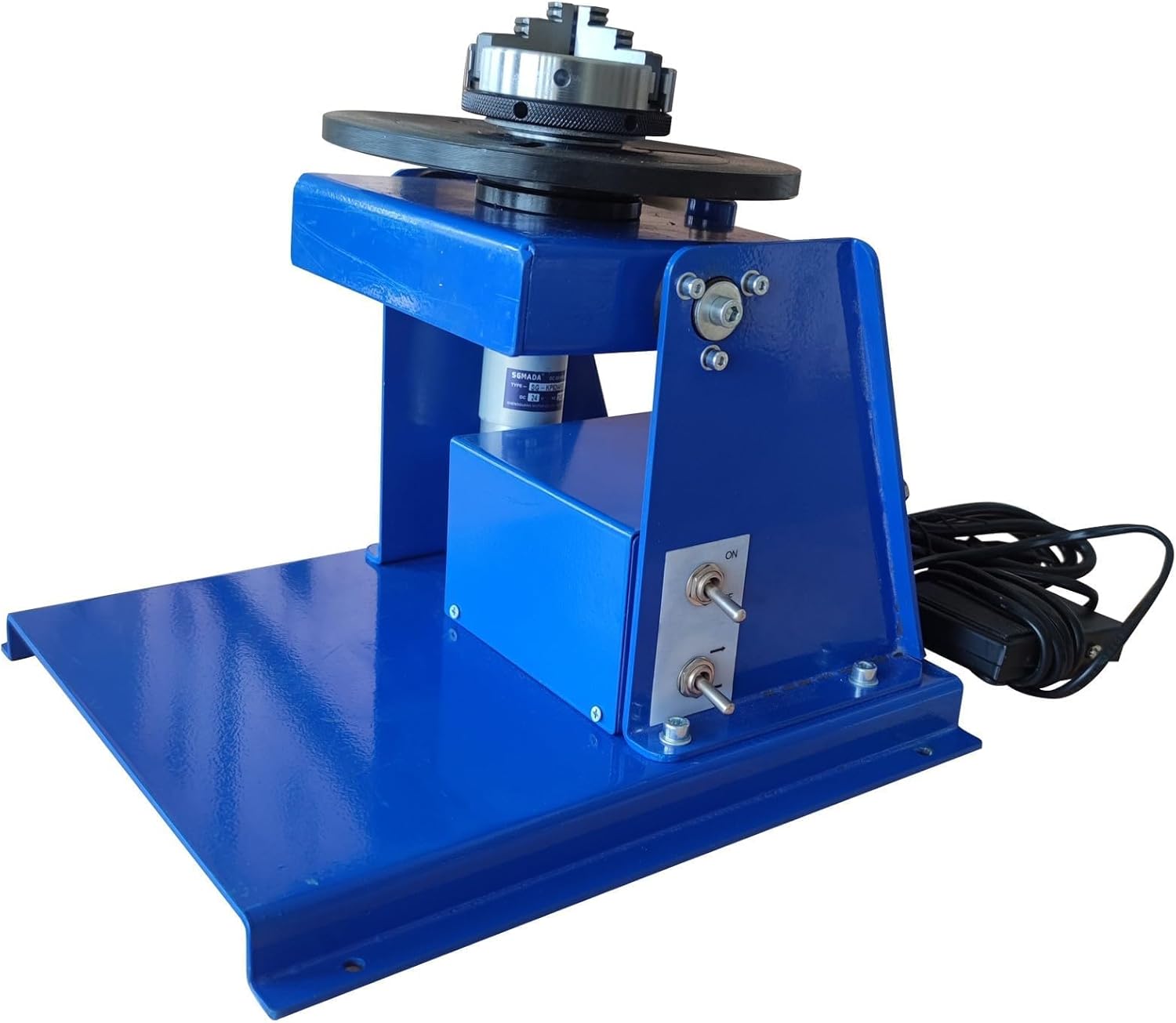

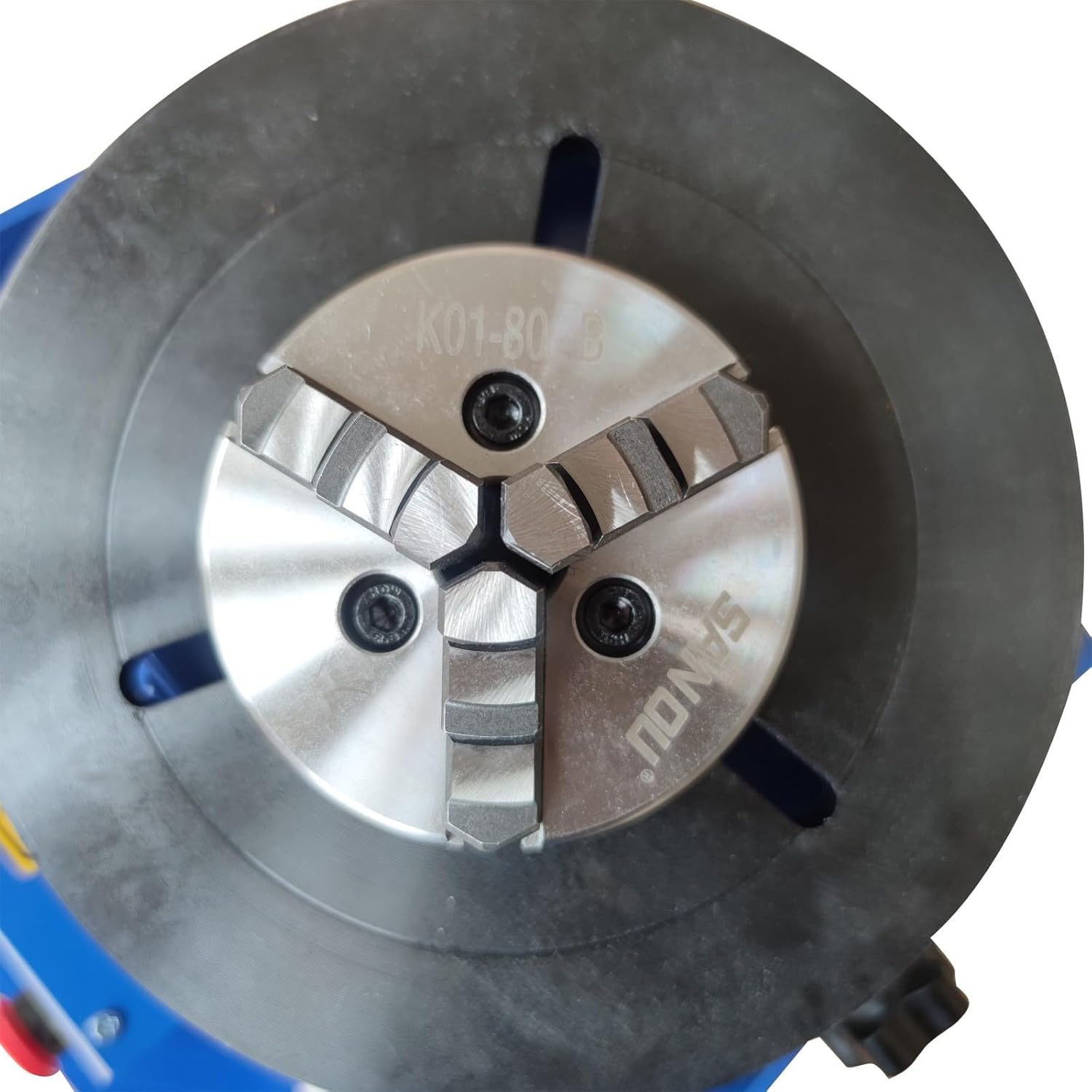

Rotary Welding Positioner Turntable with 3.15 Inch 3-Jaw Lathe Chuck 15W Portable 10kg Capacity Small Welding Positioner 2-16r/min 110V

Specification:Horizontal loading capacity: 10Kg Vertical loading capacity: 5KgWorking table diameter: 180mm Working table height: 230mm Working table tilting angle: 0-90Working table speed: 2-16r/minRated welding current: 80AInput voltage: AC110V 50HzDrive motor: 24V 15WNet weight: 8KgItem Included (290032)1 Set 10KG Small Welding Positioner with 80mm Chuck

• Adjustable speed: The rotating structure of the positioner is driven by a DC motor, which can achieve stepless speed regulation. Wide speed range ensures stable rotation speed in different welding tasks, meeting various metal processing and welding needs
• Wide welding range: The rotation range of the positioner turntable is 0-90 °. Users only need to flip the handwheel to flexibly adjust the welding angle, making it easy to achieve multi angle welding operations
• Advanced design: The special anti electromagnetic design reduces the high-frequency interference of TIG welding, ensuring the stability and reliability of the welding process, while effectively improving the welding quality
• Time controller: This positioner is equipped with a time controller that can be used to control working conditions and working time, achieve linkage between the locator and the welding machine, and improve productivity
• Application: As a key auxiliary equipment in industrial manufacturing, the main function of the positioner is to optimize the efficiency and quality of welding, inspection, assembly and other processes by precisely controlling the rotation and tilt angle of the workpiece. Whether in industrial manufacturing, construction, or other fields that require welding, positioners can provide stable and reliable welding support, greatly expanding their application scope
