SolderJaw CSJ-1 PCB Soldering Jig – Conforming Fixture Holds All Through-Hole Components at Once for PCB and Breadboard Assembly
4.2 (94 items)
Limited Time Sale$29.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218614232 | Release Date | 2026/05/03 | List Price | $20.00 | Model Number | 218614232 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- SECURE HANDS-FREE THROUGH-HOLE SOLDERING – The patent-pending SolderJaw CSJ-1 securely holds printed circuit boards and through-hole components in place using a conforming membrane. Components stay aligned while the assembly is flipped, allowing clean, controlled soldering without parts shifting, loosening, or falling out during assembly or rework.

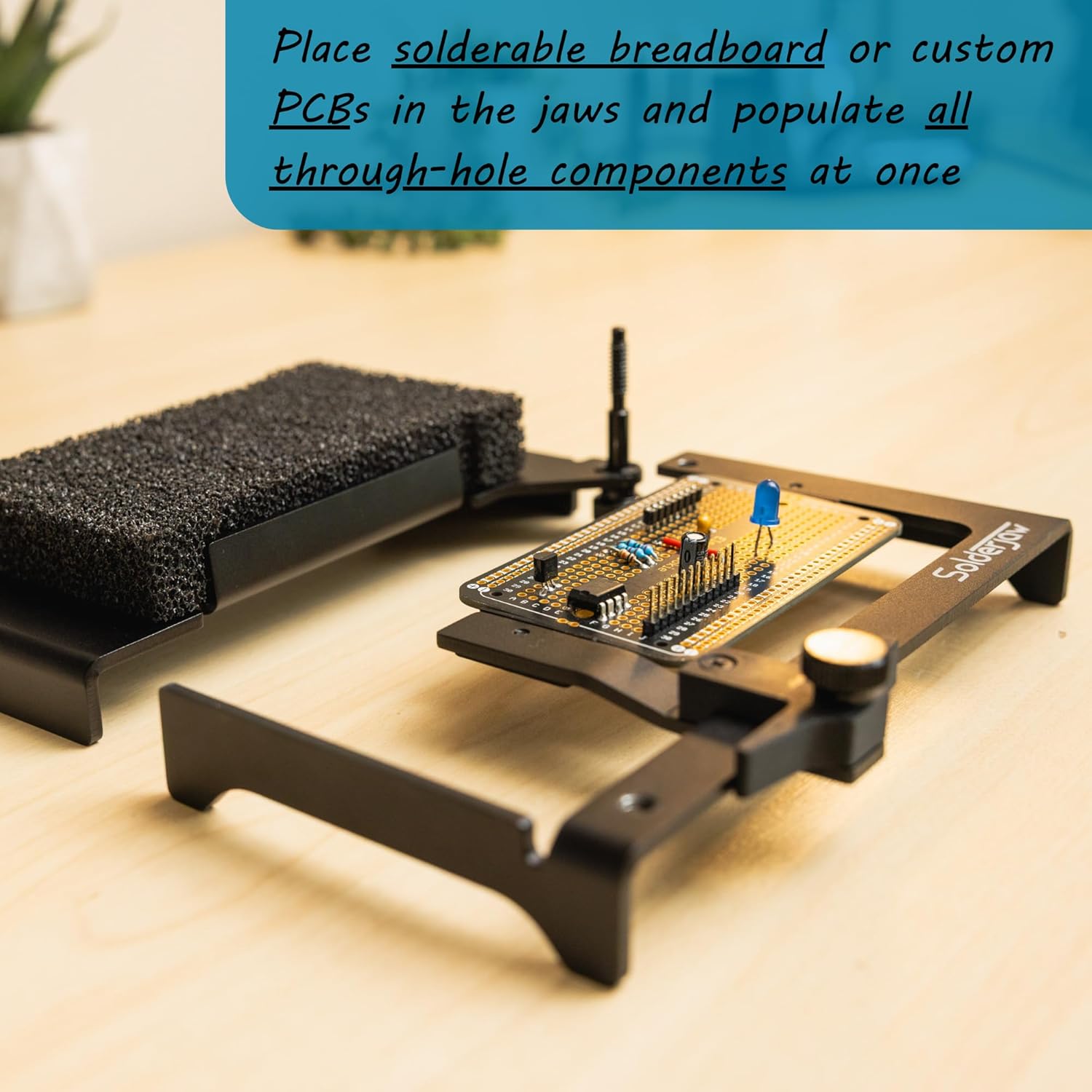

- POPULATE THE ENTIRE BOARD, THEN FLIP AND SOLDER – Load all your through-hole components at once — resistors, ICs, pin headers, capacitors — press down the conforming plate, flip the board, and solder every joint in one pass. No tape, no putty, no babysitting parts one at a time.

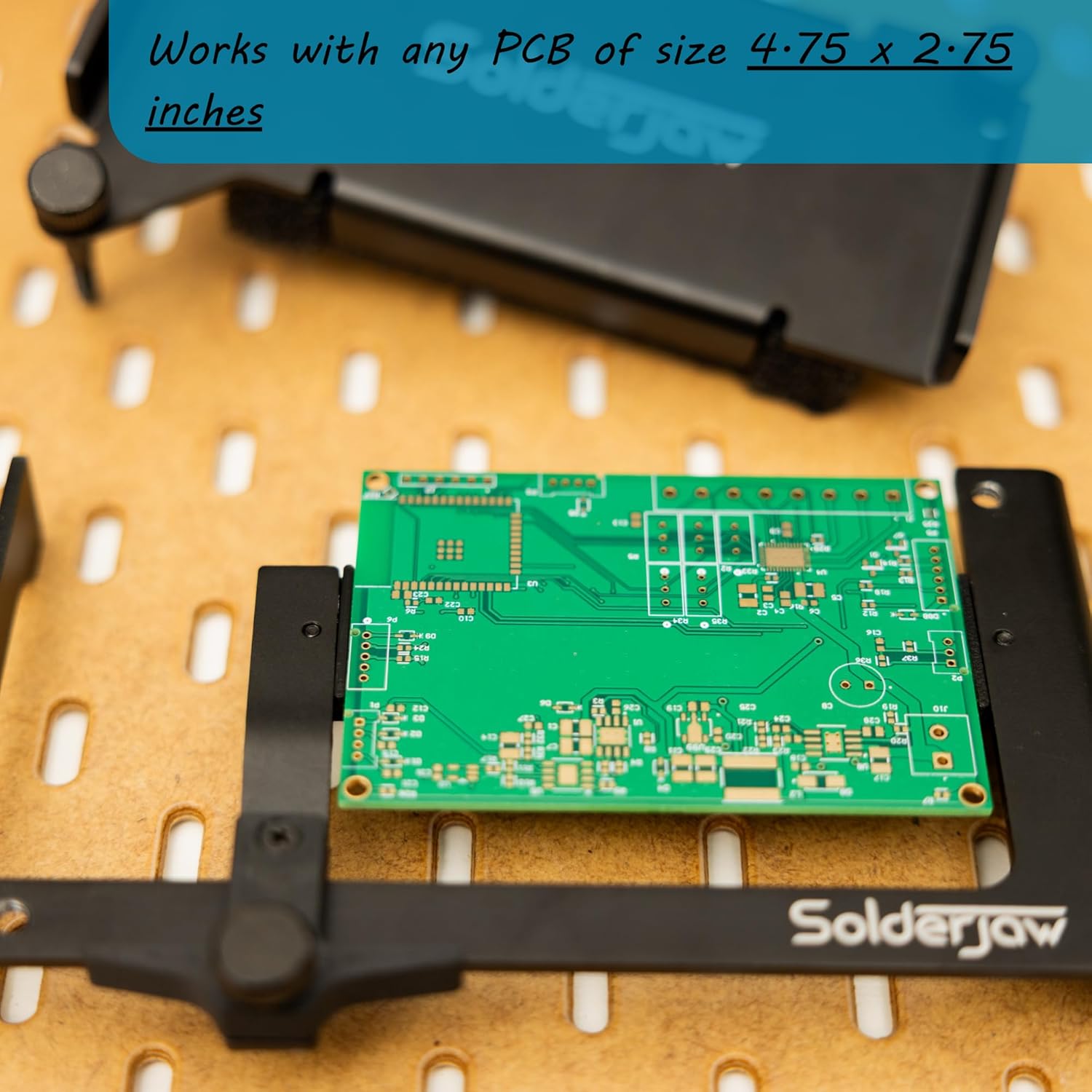

- COMPATIBLE WITH STANDARD PCB SIZES – Sliding clamp system securely holds boards up to 4.75 x 2.75 inches and components up to 1 inch tall. The 0.75-inch thick conforming membrane adapts to up to 0.5 inches of height variation across components on the board.

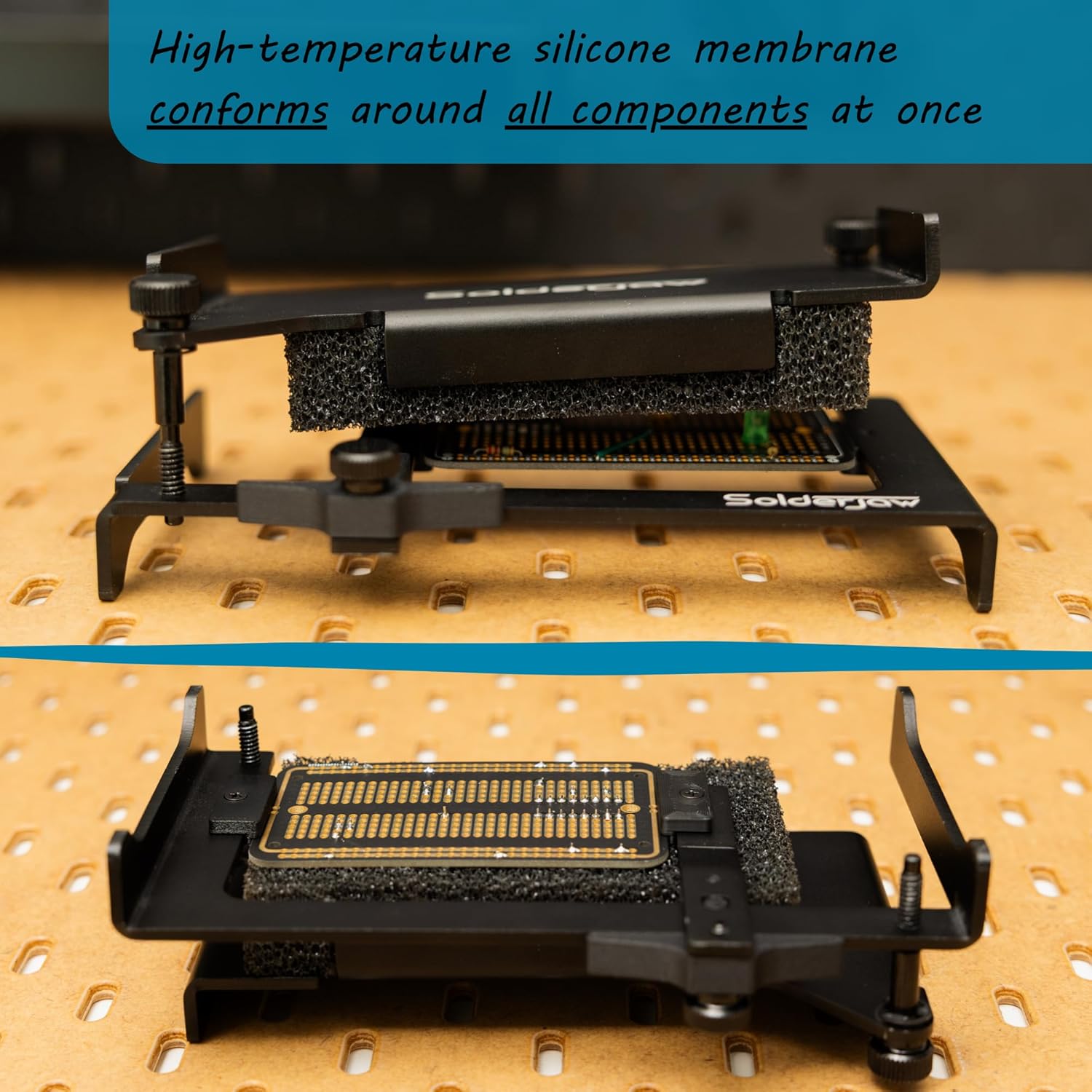

- DURABLE, HEAT-RESISTANT CONSTRUCTION – Constructed from lightweight anodized 5052 aluminum with carbon fiber reinforced ASA jaws and black oxide steel hardware. The high-temperature silicone conforming membrane withstands repeated contact with heated components during soldering.
- FAST SETUP & REUSABLE DESIGN – Simple clamp, compress, and flip workflow speeds through-hole soldering and assembly. Silicone membrane pads are removable, replaceable, and reversible, making the CSJ-1 a long-lasting tool for electronics prototyping, repair, and small-batch production.
| Display | lcd or led |
|---|---|
| Brand Name | Generic |
| Unit Count | 1.0 Count |
| Item Weight | 10 Ounces |
| Manufacturer | LifeRefinements |
| Model Number | CSJ-1 |
| Number of Channels | 1 |
| Included Components | CSJ-1 Conforming SolderJaw |
| Item Dimensions D x W x H | 5"D x 8"W x 3"H |
