TOPGREENER Motion Sensor Light Switch Dimmer, Electronic Dimmer with PIR Motion Sensor, Occupancy & Vacancy Modes, 150W LED/CFL, Single-Pole, UL Listed, TDODS5-120-BK, Black
4.5 (80 items)
Limited Time Sale$19.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218625513 | Release Date | 2026/05/03 | List Price | $13.20 | Model Number | 218625513 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Motion sensor switch with dimming automatically turns lights ON/OFF and allows you full control of light brightness; for use in residential or commercial areas, such as bathrooms, kitchens, home offices, and more

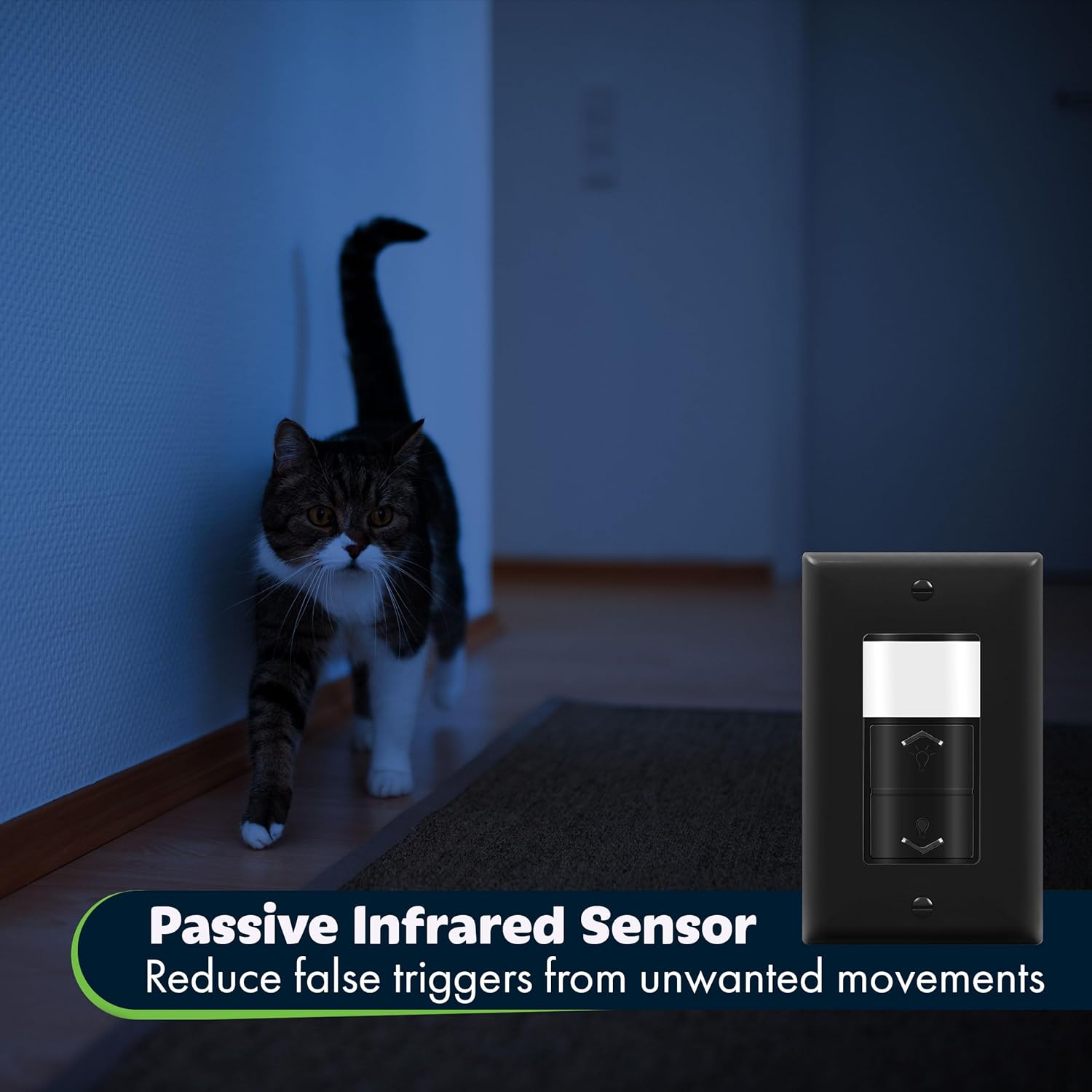

- Switch uses a Passive Infrared (PIR) sensor to reduce false triggers from unwanted movements; PIR sensor detects motion with 180° field of view to automatically turn lights ON/OFF based on the occupancy or vacancy in a room (up to 1200 sq. ft.)
- Dimmer gradually fades and brightens lights by holding the top or bottom buttons; lights will always turn ON to the last-used dim level; adjust the sensor range, ambient light level, and time delay with easy-to-use controls located under the face cover of the device
- Occupancy sensor mode (Auto ON, Auto OFF) and vacancy sensor mode (Manual ON, Auto OFF) allow you to customize the sensor according to your needs; adjustable time delay range from 15 sec (Test) to 30 min
- Black color; 120VAC, 600W incandescent/halogen, 150W LED/CFL dimmable type only; 30 lux - daylight default light level; operating temperature: 32 - 104°F; single-pole use only; no neutral wire required; UL listed; 1-year warranty
| UPC | 883951779016 |
|---|---|
| Color | Black |
| Model | TDODS5-120 |
| Wattage | 600 watts |
| Terminal | Screw |
| Brand Name | TOPGREENER |
| Unit Count | 1 Count |
| Part Number | TDODS5-120-BK |
| Switch Type | Dimmer Switch, Temperature Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Occupancy-Vacancy |
| Manufacturer | Top Greener Inc |
| Actuator Type | Hinge Lever |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Screw Terminal |
| Control Method | Push Button, Touch |
| Operation Mode | Occupancy-Vacancy |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 120 Volts (AC) |
| Specification Met | UL |
| Compatible Devices | 120VAC, 600W incandescent/halogen, 150W LED/CFL dimmable types |
| Connectivity Protocol | Infrared |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Smart Home Compatibility | Smart Home Compatible |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| International Protection Rating | IP54 |
