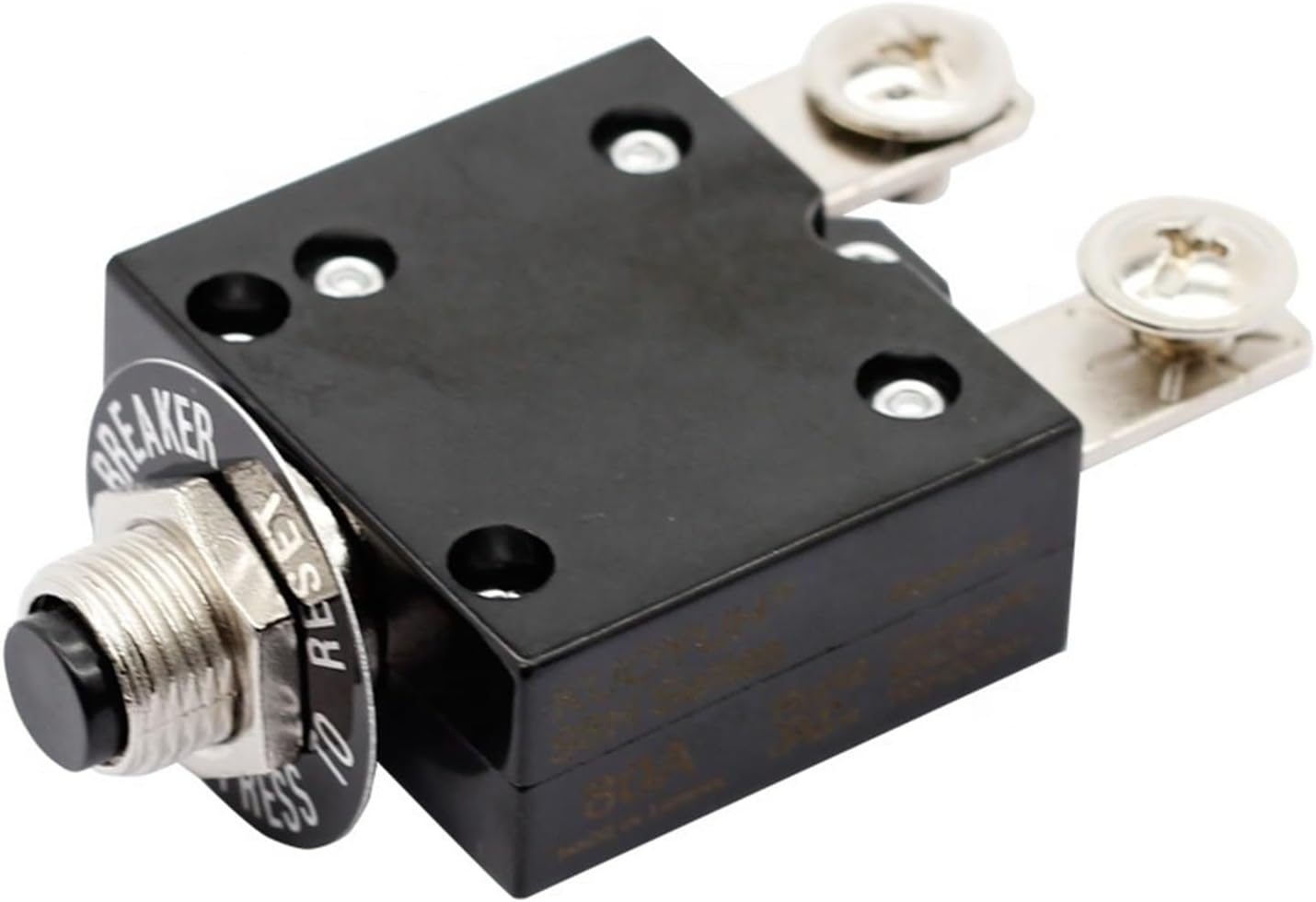

Thermal Circuit Breakers, Electronic Breaker 98H-80A 40-80A Manual Reset Protector Multicolor(70a)

Product DescriptionTechnical data.Current rating rang 40-80AInput voltage rating 125/250VAC: 50VDCInterrupting Capacity 125/250VAC X 1, 000A(UL 1077)Typical lite 500 operations at 200% overloadInsulation co-oration Rated impulse withstand voltage 2. 5kv.Dielectric Strength 1. 500VAC/minInsulation Resistance >100MOHM(DC 500V)Degree of protection Terminal area IP00, operating area IP40Mechanical/Environmental DataOperating Ambient Temperature: -10C to +60 Cermination: Thickness 1. 5mm: 10/24 unc ScrewaNickle of platedMounting: Various options. See Ordering Information and drawingsCalibration(at25)100 % of Rated Current: Hold, No Trip150% of Rated Current: Trip Within 1 Hour.200% of Rated Current: 5-38 sec Trip.300% of Rated Current: 3.0-7.5 sec Trip==========Hign-concerned : NoneType : Moulded CaseModel Number : 98H-80AIs Smarts Device : NoOrigin : Mainland ChinaPlace of Origin : ChinaModel Number : 98H-80AType : MI NIPoles Number : 1Rated Voltage : 32VDCBCD Curve : BRated Frequency : 50/60hzColor Button : Black/White/Red/BlueRating : 40-80AInput Power : 125VAC/250VAC/32VDC 50-60HzWithstand voltage strength : 1500VAC/1minReset : Manual ResetCertificate : VDE/CCC/SA/IECProduct name : electronic circuit breakerApplication : thermal protector for pump

• APPLICATION:Circuit overload protectors switch can play the role of over current protection and short circuit protection, protecting the power circuit from overheating due to overload.
• FEATURE:and wear-resistant, ensuring long service life, reliable use.
• Good insulation, heat resistance, melting resistance and good conductivity, which can maintain stable current connection and excellent thermal sensor.
• CIRCUIT PROTECTION: Compact design enables high density circuit protection configuration. Made of durable plastic, and long service life.
• Widely used for overload and short circuit protection.
