2.2KW VFD 220V 3HP, 2200W AC Motor Inverter 12.5A,1 Phase Input 220V 50/60Hz 3 Phase Output Variable Frequency Drive, 0~1000HZ CNC Motor Inverter Converter for Spindle Motor Speed Control
4.0 (67 items)
Limited Time Sale$55.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218633557 | Release Date | 2026/05/03 | List Price | $36.80 | Model Number | 218633557 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package included:1 x 2.2KW 220V Single Phase to 3 Phase Inverter VFD 1000Hz 1 x Extension cableSpecifications:Manufacturer Part Number: H100-2.2S-A1Input Voltage: 220 V (Single-phase)Input Frequency: 50/60 HzPower: 2.2 KWOutput current: 12.5 AApplicable motor: 2.2 KWControl mode: V/F, Vector controlCommunication control: RS-485Operating temperature: -10 - 40 ℃Humidity: 0 - 95%(without condensation)Vibration: Less than 0.5GOverload protection: Electric relay protection motor driver (constant torque: 150% per minute, fans: 120% per minute)FUSE protection: When the fuse blows, the motor stopsOver-voltage protection: DC voltage > 200VLow-voltage protection: DC voltage <100V;Frequency Control:Frequency Range: 0.1 - 1000 HzAccuracy: 0.1%(-10 - 40 ℃) for digital; 0.1%(25 ± 10 ℃) for analogSetting Resolution: 0.1 Hz for digital; 1% of Max. operating frequency for analogOutput Resolution: 0.1 HzKeyboard Setting Mode: Set as ← ▲ ▼ directlyAnalog Setting Mode: External voltage 0 - 5 V, 0 - 10 V, 4 - 20 mA, 0 - 20 mAOther Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively;User Manual: ( drive.google.com/file/d/1B703ta6owrPvfEdkOfG_3ovSkJhD0Nk-/view?usp=sharing )
- ✈ High-quality Motherboard: The surface of the motherboard is painted with tri-proof paint to protect the wiring from the environment and plays the role of insulation, moisture-proof, anti-leakage, shock-proof, dust-proof, anti-corrosion, anti-aging and corona-resistant.
- ✈ High-quality Motherboard: The surface of the motherboard is painted with tri-proof paint to protect the wiring from the environment and plays the role of insulation, moisture-proof, anti-leakage, shock-proof, dust-proof, anti-corrosion, anti-aging and corona-resistant.
- ✈ 8-Way Protective System: Our 2.2kw VFD has 8 kinds of protection including over voltage, over current, overload, overheating, stalling and open phase to secure the utilization. Supporting external braking resistor for fast accelerating/decelerating speed control.
- ✈ DC Cooling Fan: The variable frequency drive is equipped with a fan to improve the stability of the inverter. The fan runs automatically when the temperature rises and switches off when the temperature stabilizes.

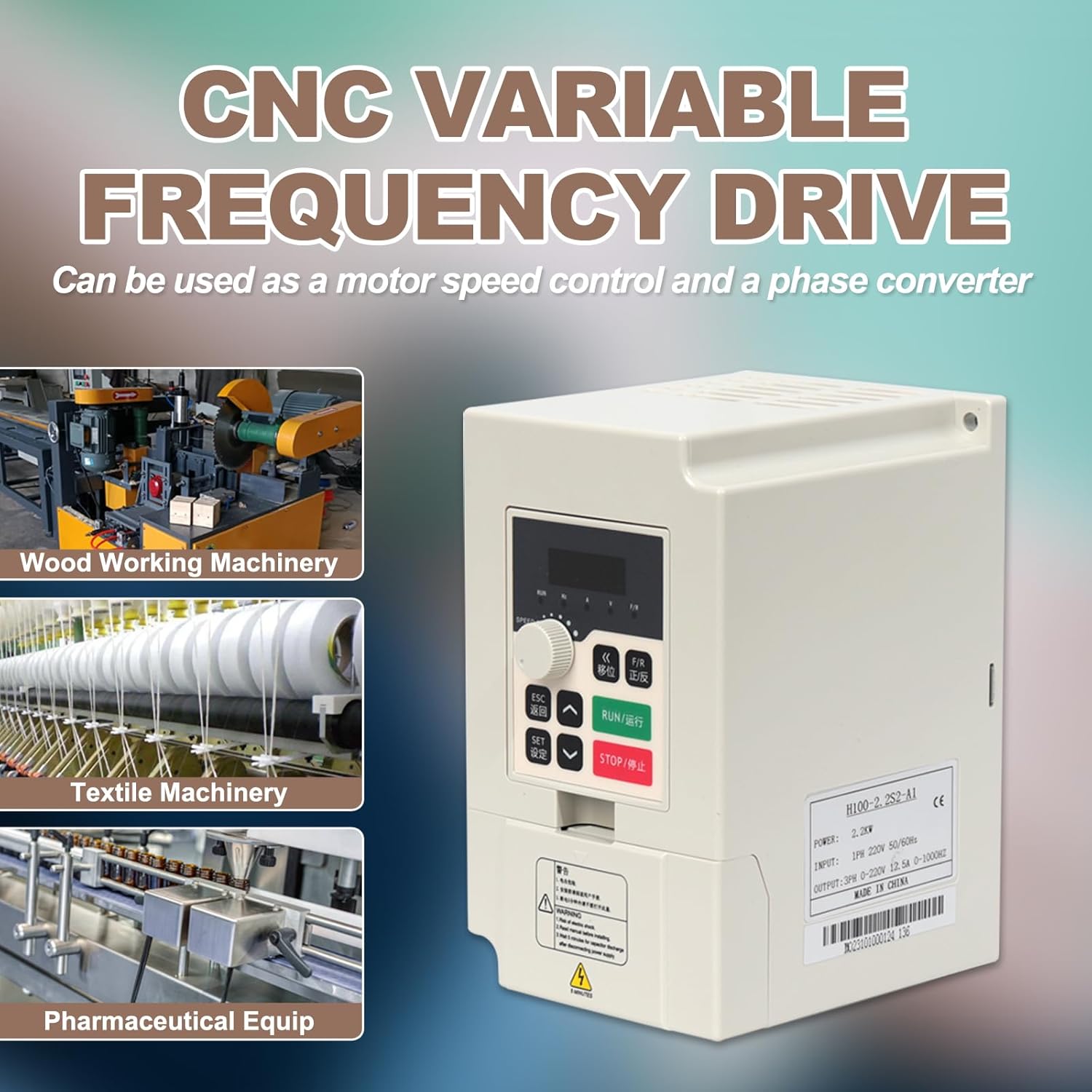

- ✈ Widely Used: This variable frequency drive could be used in various CNC, mechanical equipment, household washing machines, sewing machines, machine tool spindles, etc. User Manual: ( drive.google.com/file/d/1B703ta6owrPvfEdkOfG_3ovSkJhD0Nk-/view?usp=sharing )
| Brand | AURSNICO |
|---|---|
| Color | White |
| Voltage | 220 Volts |
| Wattage | 2200 watts |
| Frequency | 1000 Hz |
| Model Name | H100-2.2S-A1 |
| Item Weight | 2.9 Pounds |
| Manufacturer | Niko CNC |
| Model Number | H100-2.2S-A1 |
| Output Power | 2200 Watts |
| Power Source | 220V |
| BuiltIn Media | 2.2KW 220V Inverter VFD 1000Hz Motor Speed Controller |
| Input Voltage | 220 Volts (AC) |
| Output Voltage | 220 Volts (AC) |
| Mfr Part Number | H100-2.2S-A |
| Antenna Location | AC Motor |
| Item Dimensions L x W x H | 5.91"L x 3.54"W x 4.65"H |
| Electrical Output Waveform | Pure Sine Wave |
