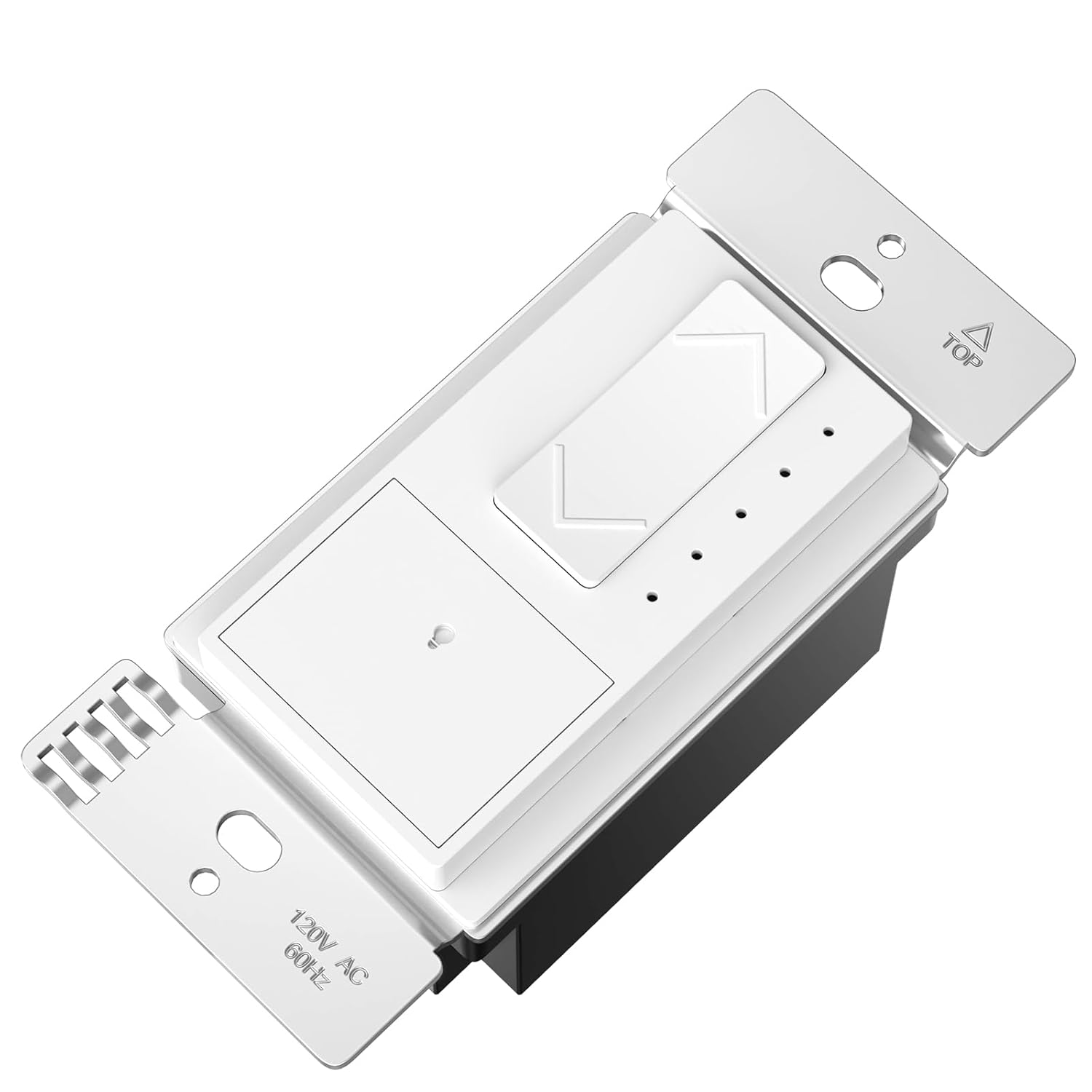

0-10V Dimmer Switch 120V Single Pole/ 3-Way Max 300W LED Light Control Commercial Grade Low Voltage Stepless Dimming Wall Switch Complete Kit with Wall Plate for Low Bay Panel Lights White ETL Listed
4.0 (72 items)
Limited Time Sale$18.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218633680 | Release Date | 2026/05/03 | List Price | $12.00 | Model Number | 218633680 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- STOP! CHECK BEFORE YOU BUY. This is a 0-10V Dimmer Switch. It is NOT a standard ELV/Triac type. Must use with 0-10V Dimmable Drivers. NOT COMPATIBLE WITH: ❌ Standard Triac/ELV Dimmable Bulbs ❌ Regular Incandescent Bulbs (without driver) ONLY WORKS WITH: ✅ Lights with 0-10V Drivers/Ballasts
- Installation Tip: While the dimmer features a 1.33" profile, a box depth of at least 2" is highly recommended to accommodate the 7 wire nuts and wiring bundle comfortably
- No More "Ghosting" – Full Power Cut-Off: Unlike cheap 0-10V signal dimmers that leave lights glowing at 0%, our switch features an integrated physical relay. It automatically disconnects the AC power for a 100% complete shut-off, saving energy and extending your LED light's life
- Commercial-Grade Precision Dimming: Tired of flickering lights? This professional 0-10V LED wall dimmer switch offers dual-mode control: Step Dimming for quick 20% adjustments and Stepless Dimming (long press) for precise, flicker-free light levels tailored to your office or warehouse
- True 3-Way & Single-Pole Versatility: Eliminate the need for multiple switch types. Our dual-control design supports both standard single-pole and complex 3-way setups, making it the ultimate solution for large rooms where controlling lights from two locations is essential
- Visual Confidence with LED Indicators: Stop guessing your light levels. Our intuitive 5-LED blue indicator panel provides instant visual feedback from 1% to 100% brightness. A steady green LED indicator tells you exactly when the power is active
- Designed for Professional Loads: Engineered to handle heavy-duty demands, supporting up to 300W for LED/CFL and 500W for Incandescent/Halogen. This is the high-capacity dimmer switch built to manage expansive commercial lighting arrays without overheating
- Night-Find Backlight: Never fumble in the dark again. The switch features a customizable backlight that can be toggled on or off with a 5-second press, providing a gentle guide at night without disturbing your sleep

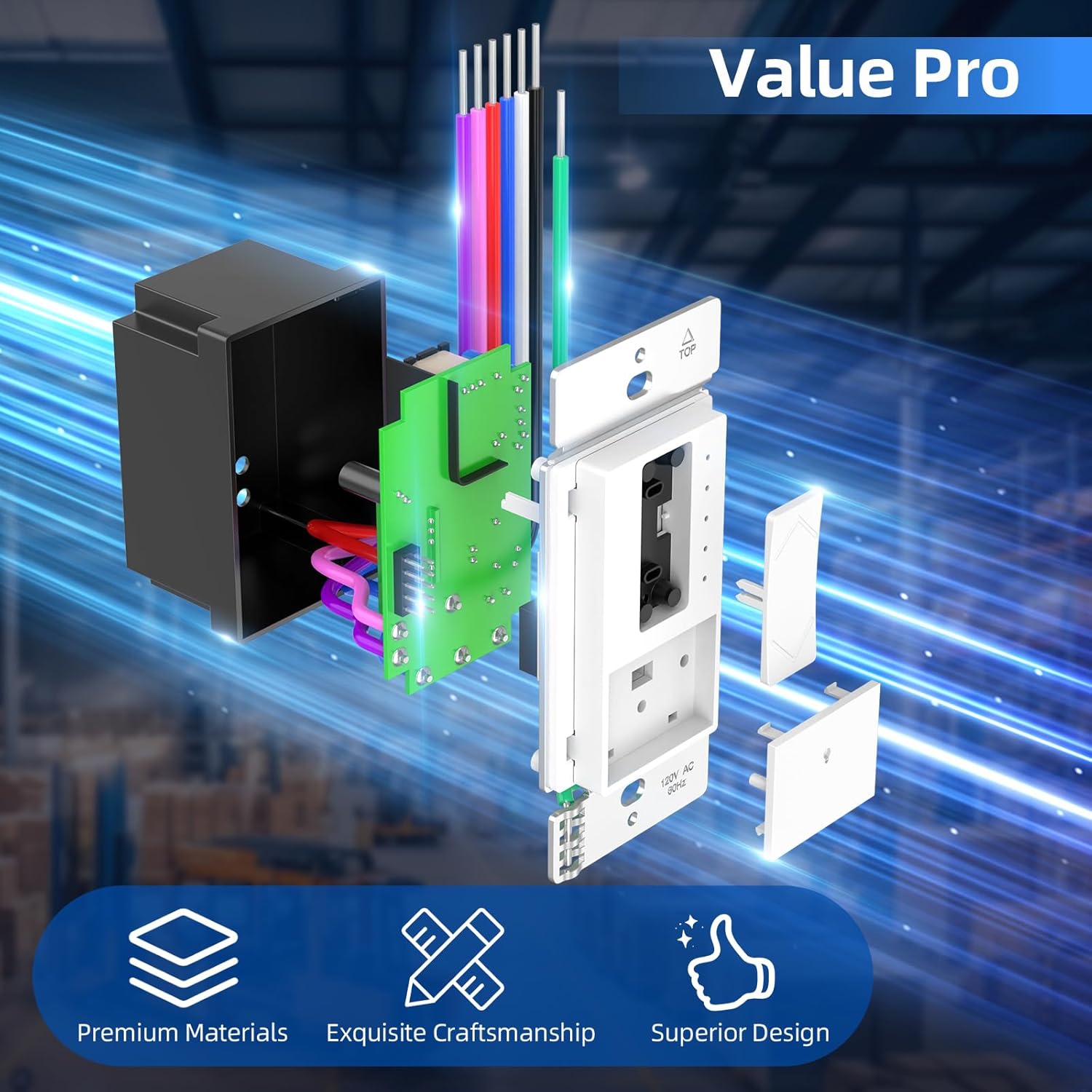

- Rugged Reliability & Thermal Safety: Built to withstand harsh environments, our switch operates flawlessly from -20°C to 40°C. The use of high-quality copper wiring and a robust internal build ensures it outperforms residential-grade plastic dimmers in durability
- Premium Quality Assurance: We stand behind the dimmer switch with a rigorous quality control process. We offer comprehensive after-sales support to assist with wiring questions or troubleshooting, ensuring your commercial or residential lighting project is a total success to ensure you receive a product that works perfectly from day one
| Color | White |
|---|---|
| Model | 010A-Dimmer |
| Wattage | 300 watts |
| Terminal | Spst |
| Brand Name | HYDUUU |
| Unit Count | 1.0 Count |
| Part Number | LED Dimmer Switch |
| Switch Type | Dimmer Switch |
| Circuit Type | 3-way |
| Contact Type | Normally Closed |
| Manufacturer | HYDUUU |
| Actuator Type | Push Button |
| Material Type | Aluminum, Copper, Polycarbonate |
| Mounting Type | Wall Mount |
| Connector Type | Wiring |
| Current Rating | 15 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 5 x 3 x 3 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 1 Volts |
| Specification Met | ETL |
| Compatible Devices | dimmable LED, Halogen, and Incandescent bulbs |
| Included Components | 1*0-10V Dimmer, 1*Wallplate, 1*User Manual, 7*Wire Connector Nuts and 2*Screws |
| Number of Positions | 2 |
| Warranty Description | One year limited warranty |
| Upper Temperature Rating | 60 Degrees Celsius |
| International Protection Rating | IP00 |
