Diode LED SWITCHEX® + R1 Driver & Dimmer Switch, Load 24V 60W, White, 120VAC Input
4.5 (48 items)
Limited Time Sale$113.47 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218633712 | Release Date | 2026/05/03 | List Price | $75.65 | Model Number | 218633712 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SWITCHEX+ R1 seamlessly combines a low-voltage power supply with a dimmer switch into one compact, innovative solution. Designed for efficiency and simplicity, it accepts 120VAC and converts it to low-voltage DC (12VDC or 24VDC), ready for installation in a standard electrical gang box. Featuring load-sensing auto-trim for exceptional dimming performance, SWITCHEX+ R1 is available in power options up to 96W, making it the ideal time-saving solution for modern LED applications. What sets SWITCHEX+ R1 apart is its quick and easy installation—complete in under 10 minutes within a single gang box. This space-efficient, time-saving device is UL Listed, ensuring top-tier safety and reliability. SWITCHEX+ R1 isn’t just a component for your lighting projects; it’s a commitment to quality, efficiency, and innovation from Diode LED.
- DIMMER: Patented technology for maximum performance and dimming range (100%-1%).

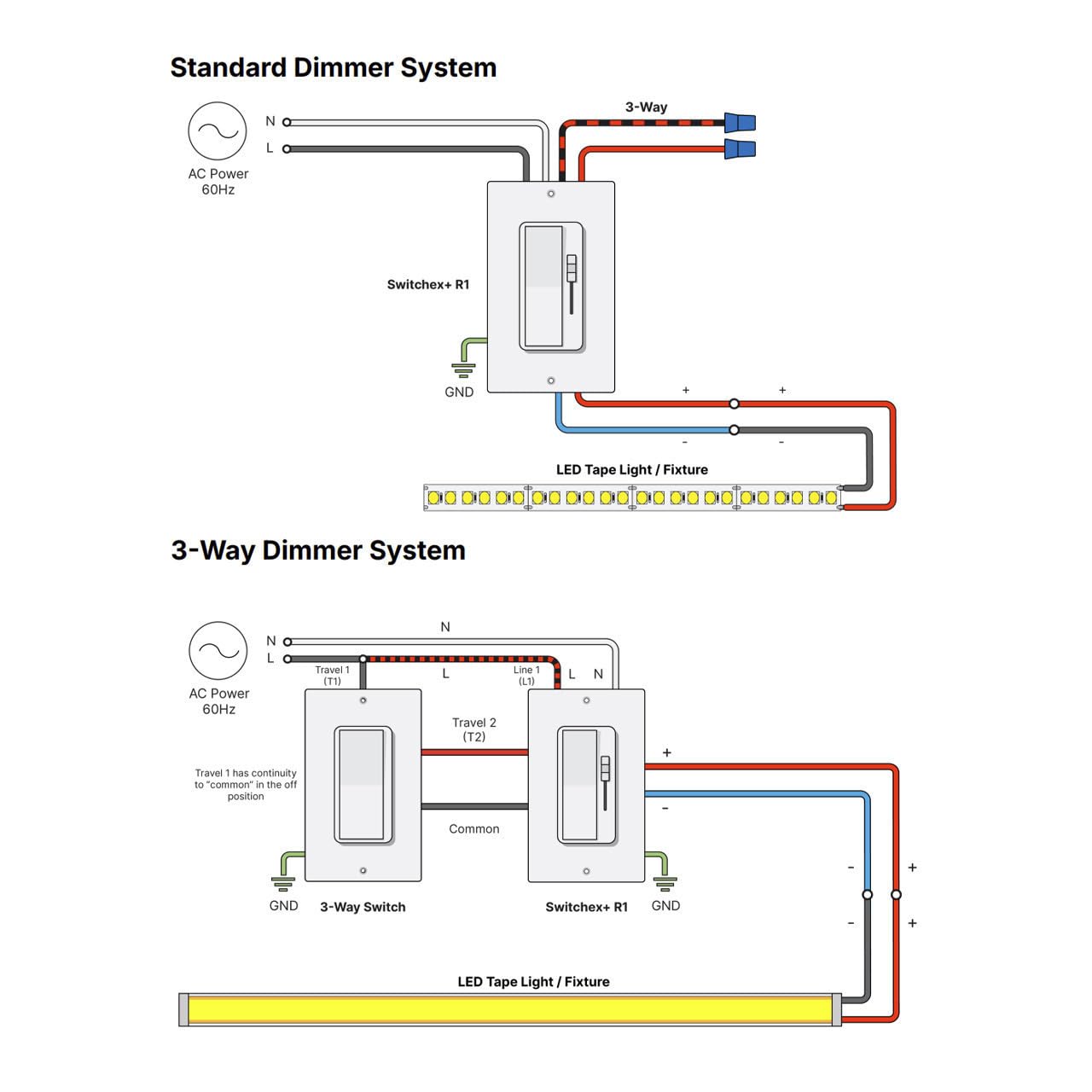

- WIRING: Single-pole or 3-way applications with a mechanical switch.
- LED DRIVER: Internal LED driver delivers 24VDC output with a maximum load of 60W. 120VAC Input.
- APPROVALS: UL Listed for US and Canadian installations. Title 24 - Can be used to comply with Title 24 Part 6 high-efficacy LED requirements. JA8-2016-E.
| UPC | 848333042331 |
|---|---|
| Color | White |
| Model | DI-SXR1-24V60W |
| Wattage | 60 watts |
| Terminal | Screw |
| Brand Name | Diode LED |
| Unit Count | 1.0 Count |
| Part Number | DI-SXR1-24V60W |
| Switch Type | Single Pole |
| Circuit Type | 3-way |
| Contact Type | Normally Open |
| Manufacturer | Diode LED |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Hard-wired |
| Current Rating | 2.5 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 1.75 x 2.13 x 4.13 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 120 Volts (AC) |
| Specification Met | UL |
| Included Components | Switch, face plate, voltage partition, 7 wire connectors, 2 mount screws |
| Number of Positions | 2 |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Celsius |
| International Protection Rating | IP20 |
