CCT Series Dimmer Lights and Driver Switch in ONE, 160W ON/Off Driver+dimmer 2 in1 UL,FCC,CE Class 2, Single-Pole or 3-Way Dimmer Switch for Led Lights,120VAC to 24VDC Power Supply for Low Voltage
4.1 (25 items)
Limited Time Sale$103.43 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218633740 | Release Date | 2026/05/03 | List Price | $68.95 | Model Number | 218633740 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tunable Color Temperature(CCT) Dimmer Lights and Driver Switch in ONE, 160W ON/Off Driver+dimmer 2 in1 Output Voltage: 24V +/-0.5V, UL,FCC,CE Class 2 Driver+dimmer Switch 2 in 1,Single-Pole or 3-Way Slide Dimmer Switch for Led Lights,120VAC to 24VDC Power Supply for Low Voltage Project, Glossy White UL Listed, Class 2
- CCT Series Driver & Dimmer 2-in-1 Design: Dimmer light switch built-in LED Driver, no need of separate dimmable power supply and dimmer light switch installations, saving 80% space in junction boxes or tight corners (4.13x2.12x2.04in compact size). Smooth glossy white finish looks great and enhances the feel of your home
- Smooth & Reliable Dimming: AC120V, 24VDC 160W LED driver & dimmer switch can easily use sliders for full-range 0.3%-100% with no flicker and no buzzing. Adjust dimming curves and set brightness ranges via the initial brightness controller for work, relaxation, or sleep
- Single Connecting Diagram or 3-Way: Circuit settings allow to control the light ON/OFF and can be wired as a single pole (1 switch) or 3-way (2 switches) to control lights from multiple locations. Note: only 1 dimmer switch can be installed in a 3-way circuit, it also can be Tunable Color Temperature.
- Safety Protection: UL/cUL Listed, FCC, Class 2 Certified, with protections of short circuit, overload, and over temperature, ensuring safety for both the power supply and your projects
- Universal Compatibility: Works with 24V DC LED lighting systems, perfect for strip lights, under-cabinet lights, and other low-voltage LED applications. 120V,built-in active PFC,typical Power Factor >0.99,THD<10%@120V Max.
- Easy to Install: Compact Slim Design is shallower to easily fit in crowed electrical boxes, directly replacing existing switches or dimmers with traditional single pole or standard 3-way wiring. easy to install and hide.Ideal for various low voltage lighting projects such as LED strips, modules,cabinet and other applications
| UPC | 789091721079 |
|---|---|
| Model | DIMMER SWITCH LEP-24160-CCT 160W 24V |
| Terminal | Screw |
| Brand Name | LED ENERGY PLUS |
| Unit Count | 1.0 Count |
| Part Number | DIMMER SWITCH LEP-24160-CCT 160W 24V |
| Switch Type | Slide |
| Circuit Type | 1-way and 3-way |
| Contact Type | Normally Closed |
| Manufacturer | LED ENERGY PLUS |
| Material Type | Plastic, Stainless Steel |
| Mounting Type | Wall Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 6.67 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 4.13 x 2.12 x 2.04 inches |
| Number of Items | 1 |
| Contact Material | Stainless Steel |
| Operating Voltage | 120 Volts |
| Specification Met | Ul,fcc,ce Class 2 |

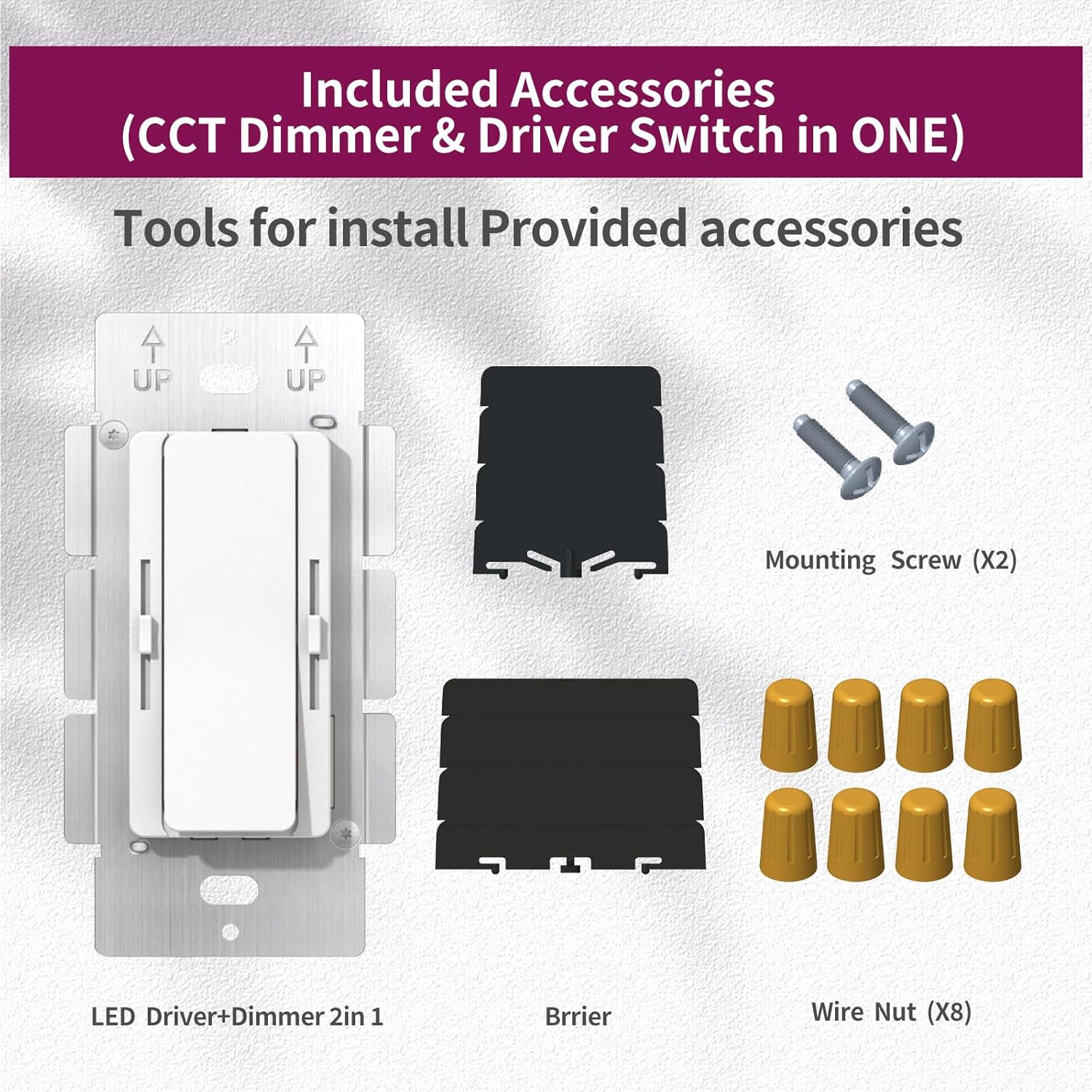

| Included Components | CCT Series Dimmer Lights and Driver Switch in ONE 160W 24V ON/OFF |
| Number of Positions | 1 |
| Upper Temperature Rating | 60 Degrees Celsius |
| International Protection Rating | IP20 |
