TK90 FULL SET TURKU 9KW 240V RESIDENTIAL STEAM GENERATOR KIT with CONTROLLER, STEAM HEAD and MANUAL DRAIN VALVE

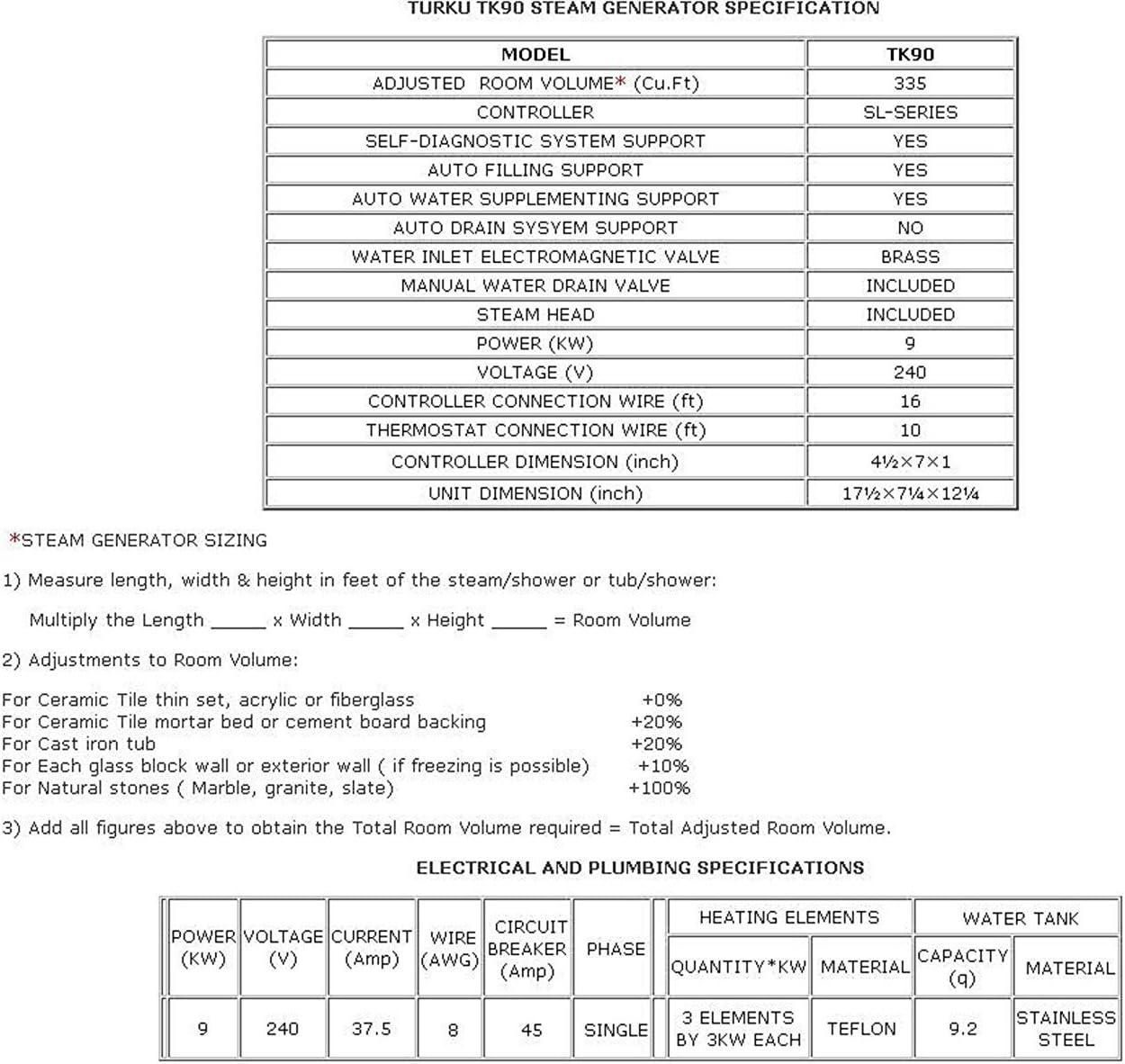

*STEAM GENERATOR SIZING 1) Measure length, width & height in feet of the steam/shower or tub/shower: Multiply the Length _____ x Width _____ x Height _____ = Room Volume 2) Adjustments to Room Volume: For Ceramic Tile thin set, acrylic or fiberglass +0% For Ceramic Tile mortar bed or cement board backing +20% For Cast iron tub +20% For Each glass block wall or exterior wall (if freezing is possible) +10% For Natural stones (Marble, granite, slate) +100% 3) Add all figures above to obtain the Total Room Volume required = Total Adjusted Room Volume. // AUTO FUNCTIONS: AUTO FILLING: electromagnetic inlet valve will open automatically once the system is started and fill in with water automatically until the water level reaches the maximum level. If the water level is still lower than the minimum required level 10 minutes after the start, it indicates faults of the water supply system, so all heating elements will turn off automatically. // AUTO WATER SUPPLEMENTING: if the water level is lower than the required level during operation, auto water supplementing function will be ON and will open the inlet valve. Once the water level reaches the required level, auto water supplementing function turns OFF automatically. If water level is lower than the required level 3 minute after the water supplementing order is given, it indicates faults of the water supply system, all heating elements will turn off.

• SET INCLUDES: - 9KW 240V TURKU STEAM GENERATOR; - SL-SERIES EXTERNAL DIGITAL CONTROLLER; - STEAM HEAD; - MANUAL DRAIN VALVE; - SAFETY PRESSURE RELIEF VALVE; - THERMOSTAT; - CONTROLLER & THERMOSTAT CONNECTION WIRES; - INSTALLATION AND OPERATION GUIDE.
• ADJUSTED (!) ROOM VOLUME* 335 Cu.Ft / 16 Ft CONTROLLER CONNECTION WIRE / 10 Ft. THERMOSTAT CONNECTION WIRE (ft) / CONTROLLER DIMENSION (inch) - 4½×7×1 / UNIT DIMENSION (inch) - 17½×7¼×12¼
• AUTO FUNCTIONS:- AUTO FILLING, - AUTO WATER SUPPLEMENTING
• TEMPERATURE CONTROLLING RANGE - 95~131F; TIME RANGE - 01~60 min
• FOR RESIDENTIAL, PERSONAL USE ONLY!
