CT-300 Hydraulic Tube Expander, 3/8 to 1-1/8inch Hydraulic Copper Tube Expander Tool with Tube Cutter, Deburring Tool

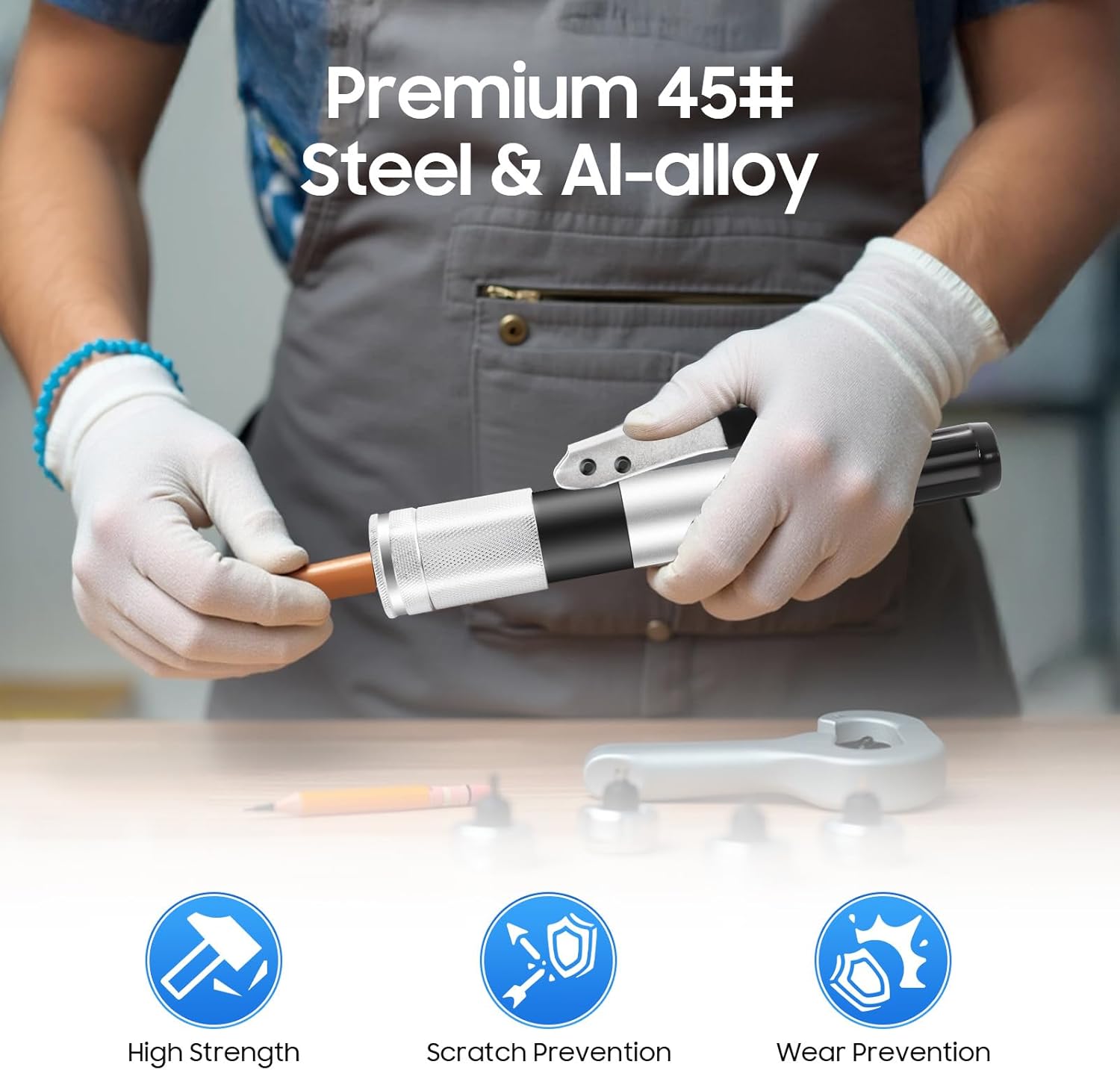

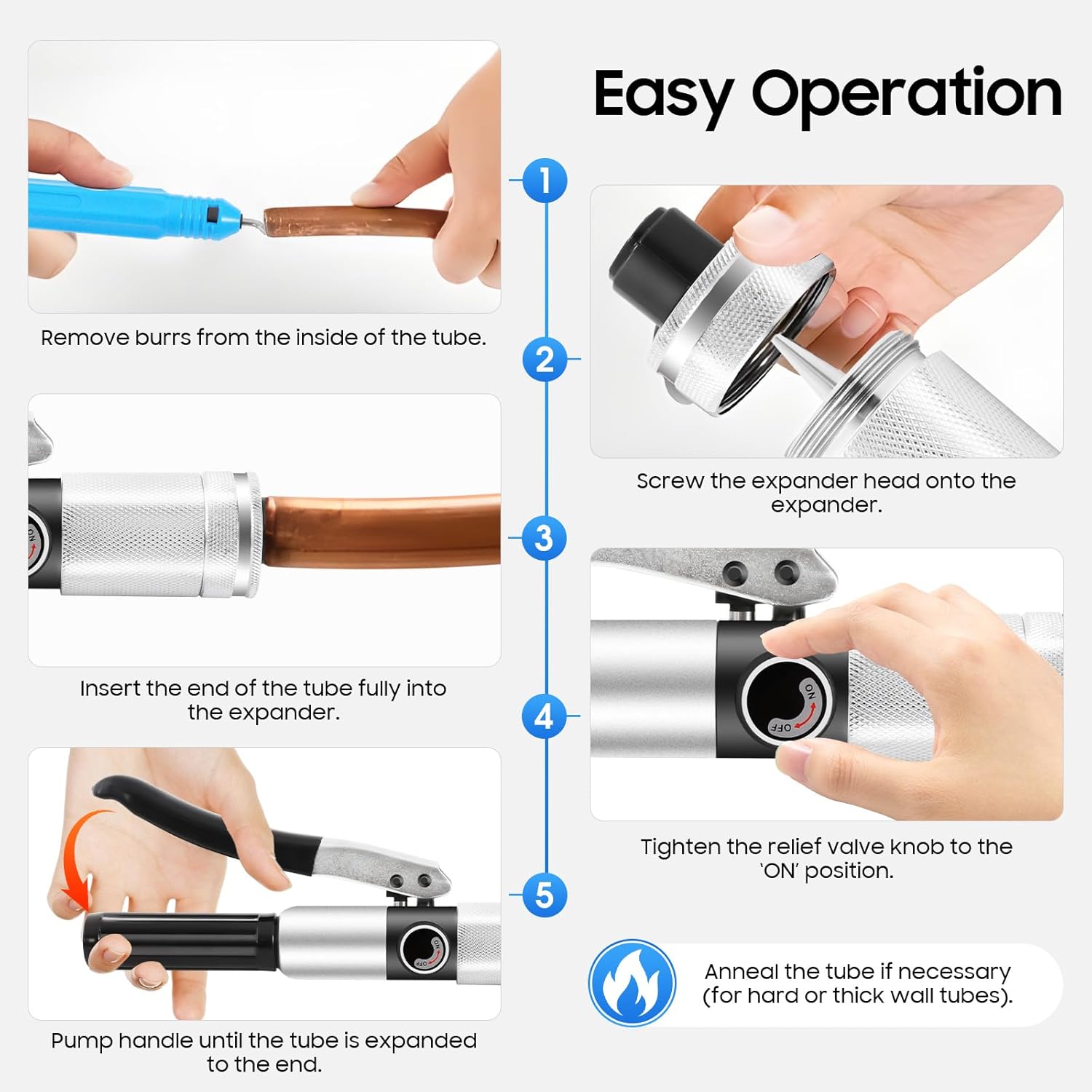

Description This is an essential tool kit for air conditioning, underfloor heating, sanitary ware, and other repair work. This hydraulic tube expander can be used to expand copper and aluminum tubes quickly and efficiently. It is mainly made of robust 45# steel and aluminum alloy to ensure long service life. It will be the ideal choice for you. Application It is mainly used in underfloor heating, air conditioning, sanitary ware and other areas to expand copper or aluminum tubes. Specification Model: CT-300 Material: 45# Steel and Aluminum Alloy Color: Silver, Black Power Source: Manual Hydraulic-powered Carrying Case Color: Blue Expander Heads Size: 3/8'', 1/2'', 5/8'', 3/4'', 7/8'', 1'', 1-1/8'' Hydraulic Tube Expander Size: 28*12cm/11*4.7in Cut Tube Size Range: 6-50 mm/0.25-2in Tube Cutter Length: 18cm/7.1in Deburring Tool Length: 15cm/5.9in Packing Size: 45*25*7cm/17.71*9.84*2.75in Gross Weight: 3kg/6.61lbs How to Use 1. Remove burrs from the inside of the tube. 2. Anneal the tube if necessary (for hard or thick wall tubes). 3. Screw the expander head onto the expander. 4. Insert the end of the tube fully into the expander. 5. Tighten the relief valve knob to the ‘ON’ position, then pump handle until the tube is expanded to the end. 6. Turn the pressure-reducing valve to the OFF position to release the expander head and remove the expanded tube. Package Included 1 * Hydraulic Tube Expander 1 * Tube Cutter 1 * Deburring Tool 7 * Expander Heads 1 * Blue Carrying Case 1* English User Manual Notes 1.For hard tubes, please anneal the tube before expanding to prevent cracking or hard expanding. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• 【HIGH EFFICIENCY】: The hydraulic oil chamber of the hydraulic expander is 20% larger than the normal one. This allows for greater expansion when using the same force, without having to worry about the R410 thickened pipes.
• 【EXPANDING JOINT】: Compared to traditional welding, this hydraulic tube expander requires only one side to be welded, reducing installation costs and the possibility of leakage.
• 【MULTIPLE EXPANDER HEAD SIZES】: With 7 expander head sizes, it can be used to expand a wide range of tubes from 3/8" to 1-1/8" to meet your different needs.

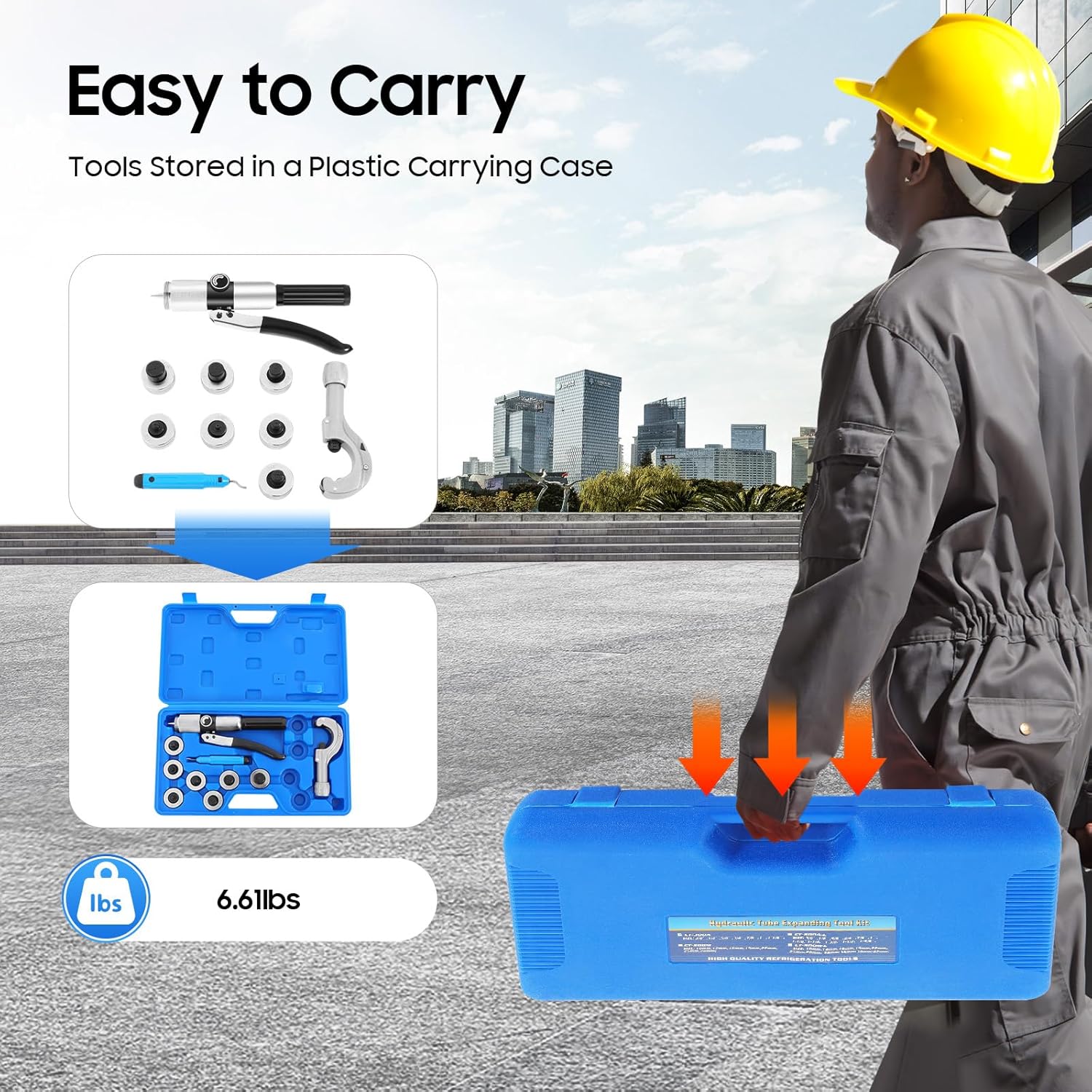

• 【COMPLETE KIT】: This is a complete hydraulic expansion kit with all the tools you need for expanding the pipe, so you don't need to buy them separately, which is very convenient and hassle-free.
• 【DEBURRING TOOL】: The deburring tool can remove burrs left after cutting in the tube quickly and easily for better expansion effects.
