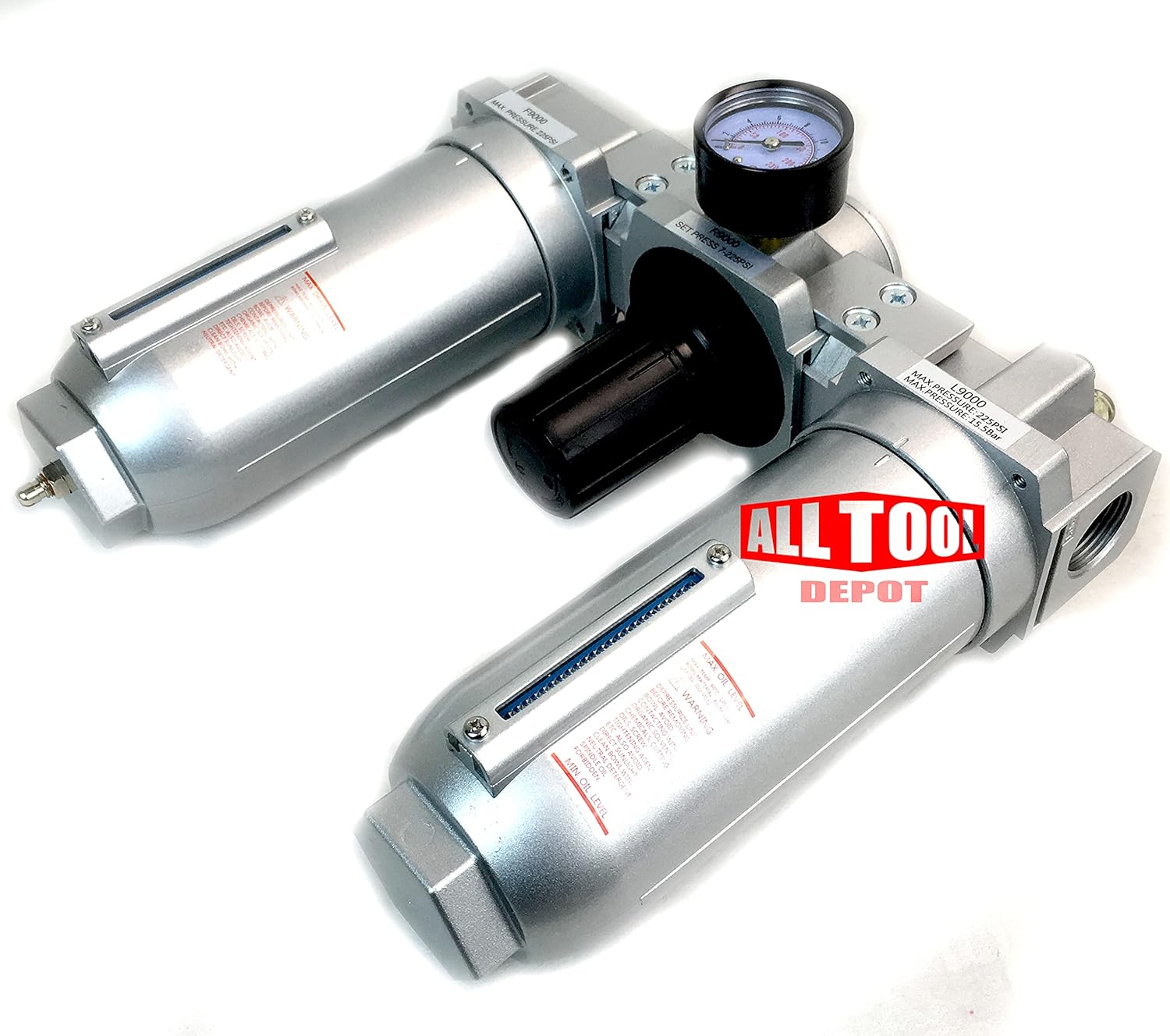

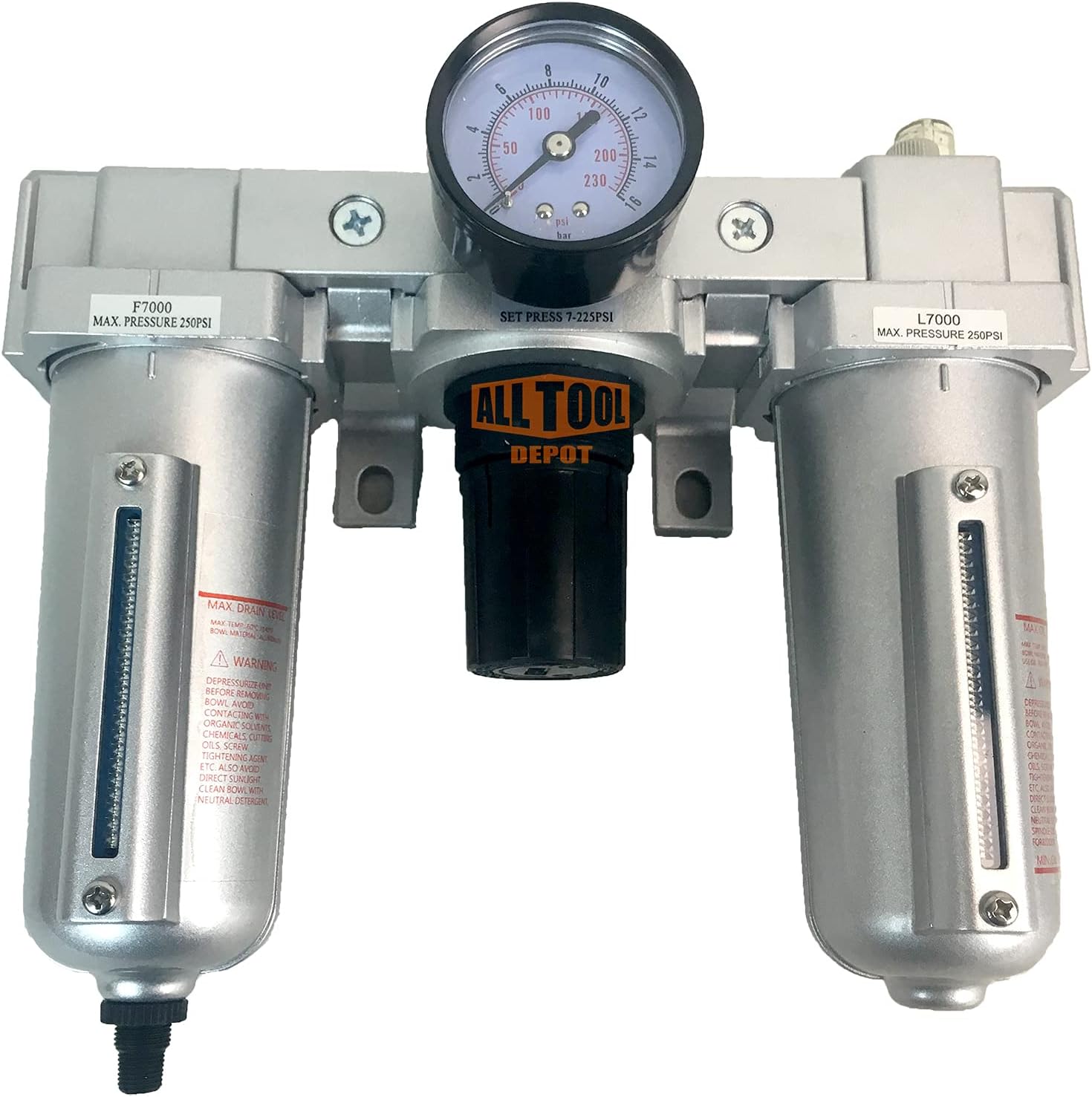

3/4" NPT SUPER DUTY Compressed Air In Line Filter Regulator Lubricator Oiler Combo, Metal Bowl, 5 Micron Element, Adjustable From 7 to 215 PSI (MANUAL DRAIN)
4.2 (64 items)
Limited Time Sale$99.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218666346 | Release Date | 2026/05/03 | List Price | $66.40 | Model Number | 218666346 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
3/4" Compressed Air Moisture Filter Regulator Oiler Separator Lubricator Combo Brand new in line compressed air moisture filter, regulator, lubricator combo. This is a high quality unit that gives you the power to keep moisture out of your air lines, regulate air pressure, and lubricate your air lines all at once! This is a perfect set up for when you do not have a lot of room to add all of these components individually. This has 3/4" female NPT input as well as a 3/4" female NPT output port. This assembly has a 155 CFM max flow rate and comes equipped with a pressure gauge. You can adjust the regulated pressure between 7 - 215 PSI. The moisture filter features a 5 micron filter (5?), 11 oz bowl capacity, as well as a visual sight glass to easily monitor the moisture level. The lubricatior has a 11.1 oz oil capacity with a visual sight glass to easily monitor levels. The compact design of this combo makes for convenient and easy installation and comes standard with an attached wall mounting bracket. Overall this unit measures 12.25" Long x 3.5" Wide x 11.75" Tall at the widest points. Recommendable Lubricants ISO VG-32. FOR REPLACEMENT 5 MICRON FILTER ELEMENTS. COPY AND PASTE ASIN TO YOUR AMAZON SEARCH B06Y1XJT9J
- PLEASE NOTE: 3/4" NPT MEASURES 1.050" OUTSIDE THREAD DIAMETER IN INCHES. 3/4" NPT, Industrial Rated Super Duty Water Filter Regulator Lubricator / Oiler For Pneumatic Air Tools On Compressed Air Lines. With Wall Mounting Bracket And Internal Float Drain (MANUAL DRAIN)
- 225 PSI Max Output. 155 CFM Flow Rate. This Unit Will Removing Moisture Water And Moisture Vapor From Your Compressed Air Lines. Metal Bowl Has Visible Sight Glass To View Oil Levels At A Glance. You Can Control The Amount Of Oil Flow By Adjusting The Adjustment Screw On Top Of The Lubricator.
- Water Trap Filter Equipped With 5 Micron Element To Remove 95% Of The Initial Moisture And Debris From Your Compressed Air Line. 11oz Metal Bowl With Visible Sight Glass.
- Manual Push Drain Located On The Bottom Of Metal Bowl. Visible Sight Glass To View Moisture Levels At A Glance. Wall Mounting Bracket And Operation Instructions Included.
- Replacement Filters Can Be Found On Amazon. ASIN: B06Y1XJT9J.
| Size | 3/4" NPT |
|---|---|
| Color | 155 Cfm, 215 Psi (Manual Drain) |
| Material | SUPER DUTY, FULL METAL |
| Item Weight | 18 pounds |
| Part Number | C906N-2 |
| Manufacturer | ALL Tool Depot |
| Air Flow Capacity | 155 Cubic Feet Per Minute |
| Item model number | C9XXN |
| Batteries Included | No |
| Batteries Required | No |
| Product Dimensions | 3.5 x 12.25 x 11.75 inches |
| Is Discontinued By Manufacturer | No |
