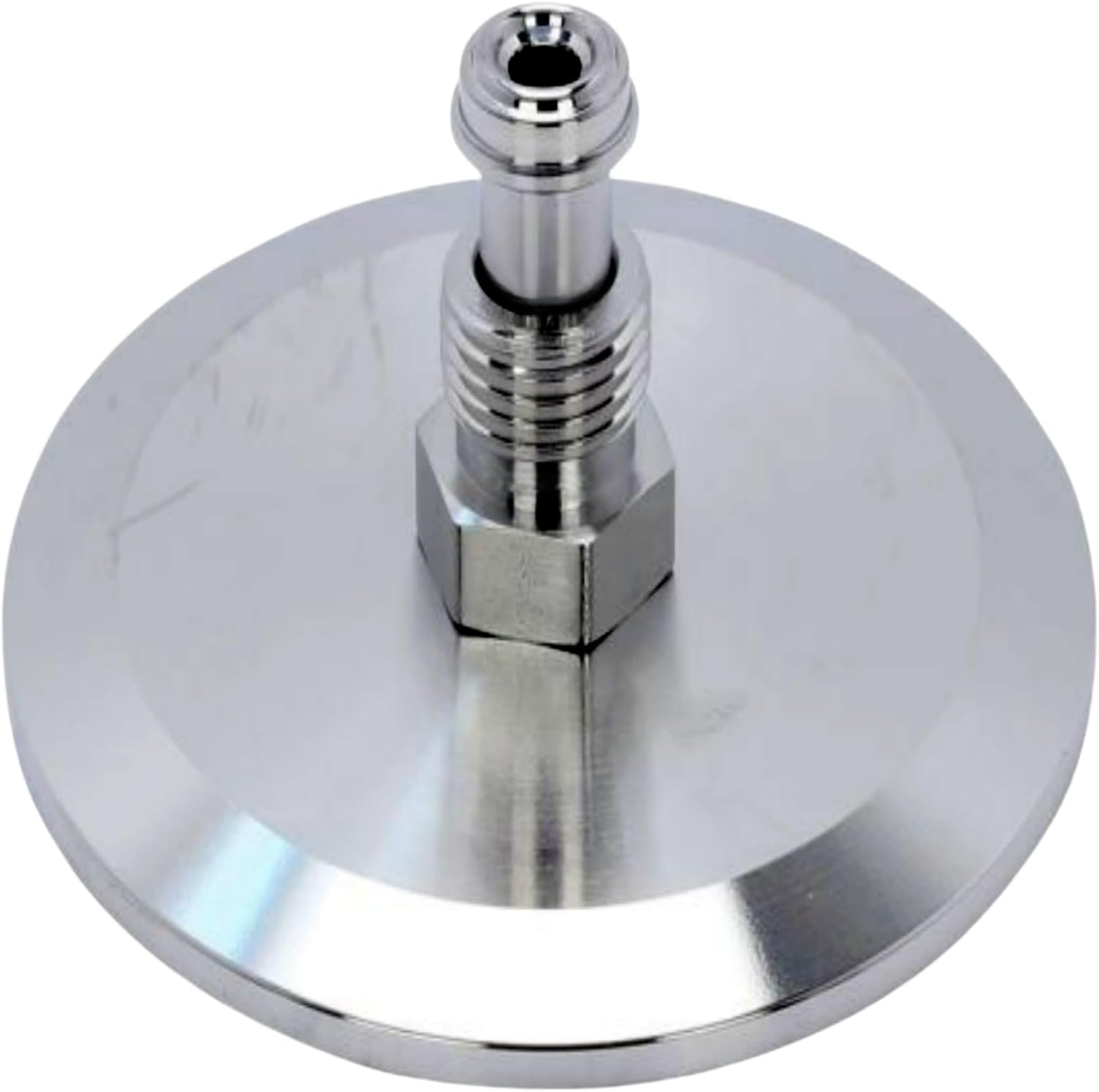

Stainless Steel KF 50 to 1/4" VCR Male Adapter - Vacuum Fitting Coupler Connector(KF-10 3/4inch VCR)

DescriptionMale VCR to KF Adapters allow for the adaptation of a Male VCR fitting to a KF flange as a single interface vacuum component. Used to connect items with two different type flanges.KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp.The KF - VCR Male Adapters are made out of Stainless Steel. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.Specifications:Flange Size: ISO-KF NW-16Tubing Size: 1/2 VCRThe KF to VCR Adapters are available in the following sizes:NW 16 x 1/4" VCRNW 16 x 1/2" VCRNW 16 x 3/4" VCRNW 16 x 1/8" VCRNW 25 x 1/4" VCRNW 25 x 1/2" VCRNW 40 x 1/4" VCRNW 40 x 1/2" VCRNW 50 x 1/4" VCRNW 50 x 1/2" VCRPackage Contains: 1 *Adapter KF-50 to 1/4" VCR Male

• stainless steel construction ensures durability and resistance to corrosion for long-lasting use.
• devised for seamless adaptation from Male VCR fitting to KF flange, facilitating connections between different flange types.
• Easy-to-use wing nut clamps provide a secure fit without the need for tools, simplifying assembly and disassembly.
• Uniform pressure application on the clamp guarantees a reliable vacuum seal, enhancing system performance.
• Compatible with various sizes, including NW 16, NW 25, NW 40, and NW 50, making it versatile for multiple applications.
