Baileigh 26-Inch Gear-Driven Drill Press, 3 HP, 220V 3Ph (Model DP-1500G)

The Baileigh DP-1500G gear head drill press is rigidly designed for heavy drilling. This machine offers a lot of power, at an economical value, to the machine shop or fabrication shop owner. The column is a massive 5.5" diameter to help reduce possible flexing during heavy feeds at maximum capacity (which is 1.5" inches through mild steel). The base and table are made from a heavy casting, and both have large T-slots to ensure a proper hold of the material being drilled. The DP-1500G has a heavy industrial-grade gear system that allows for an array of speeds (108 to 1,800 rpm) to work with many different materials for drilling and tapping. To properly transfer the power from the gear head drill press to the material, we include a #4 morse taper. The drill press comes standard with a coolant system, guarding, a chuck, and a halogen light. Baileigh covers this heavy-duty drill press with a one-year parts warranty and lifetime technical support by phone.

• 3-1/2 hp motor runs on 220-volt 3-phase power
• Drills a maximum capacity of 15" mild steel
• Auto tapping feature with a 13" capacity
• Eight speeds: 108, 162, 240, 360, 528, 805, 1175, and 1800 RPM
• Standard #4 Morse taper transfers power from the gear head to the material

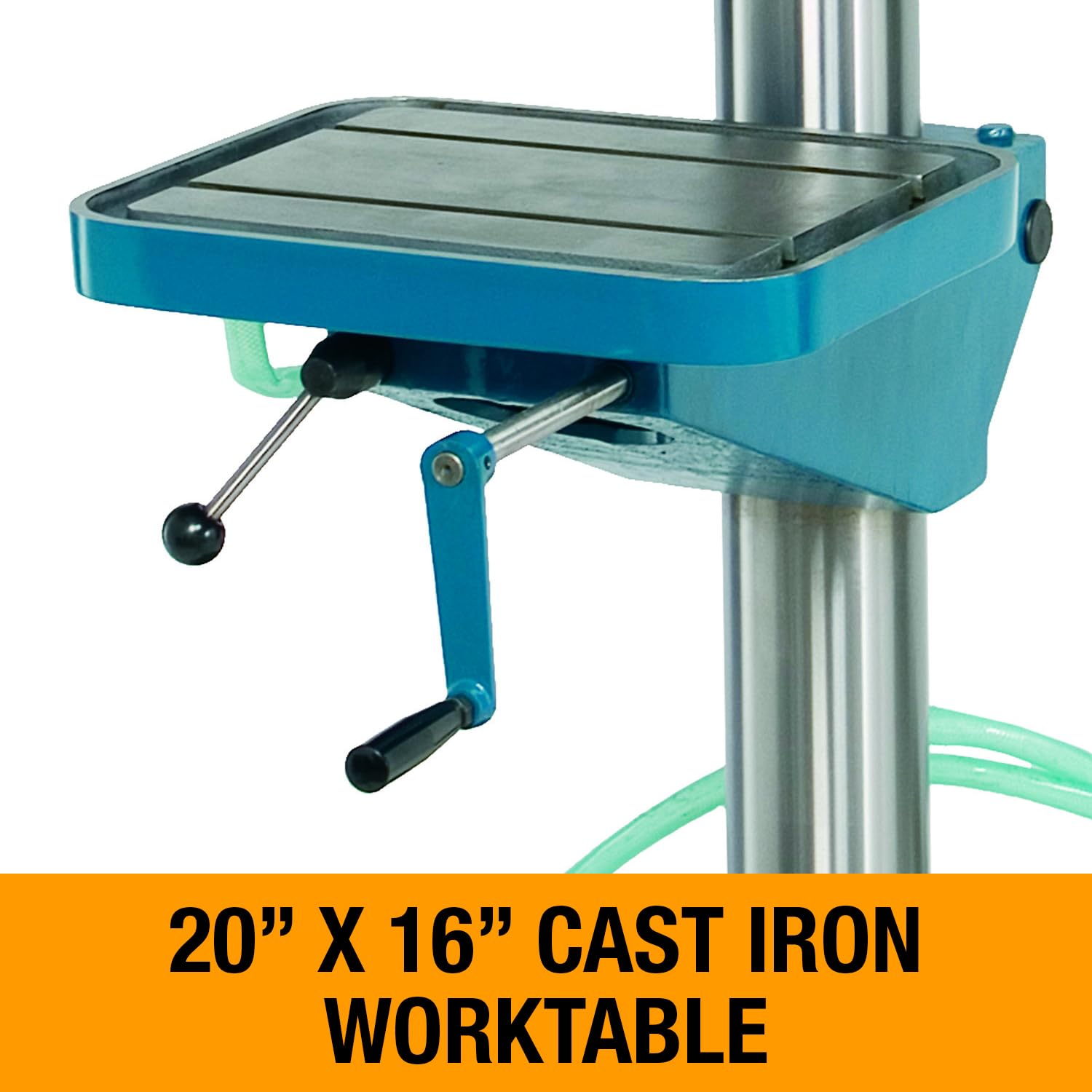

• 20-inch x 16-inch table features large T-slots for a vise or fixture to hold material securely
