220V Heavy-Duty Woodworking Benchtop Jointer and Planer with Precision-Ground Cast Iron Table, Wood Surface Planer Dovetail Lifting Mechanism for Professional Woodworking 4pcs Cutting Blades

Electrical Parameters Motor Type Induction Motor Rated Power 2200W Rated Voltage 220V Rated Frequency 50Hz Switch NHD Safety Electromagnetic Switch Planing Capacity Maximum Planing Width 8.0" (203mm) Minimum Planing Width 1" (25.4mm) Maximum Planing Depth 0.125" (3.175mm) Minimum Stock Thickness 0.5" (12.7mm) Minimum Stock Length 12.0" (305mm) Minimum Stock Width 1" (25.4mm) Mortising Dimensions 0.5*8" (12.7*203mm) Cutter Shaft Parameters Blade Cutting Diameter φ2.95" (φ75mm) Number of Blades 4 pieces Blade Specification 8.0*0.78*0.11" (205*20*3mm) Cutter Shaft Speed (5000RPM) Worktable Parameters Total Table Length 72.2" (1835mm) Infeed Table Length 35.3" (897mm) Outfeed Table Length 35.3" (897mm) Table Height (from floor)‌ 32.2" (820mm) Stock Guide Parameters Fence Dimensions 5*35" (127*890mm) Positioning Angle 45°/ 90°/ 135° Dust Port Diameter φ3.9" (φ100mm) V-Belt Specification a1219 Push Handle Quantity 2 Machine Info Material Chrome-plated, Cast Iron Net Weight 413.3lbs (187.5kg) Gross Weight 525.8lbs (238.5kg)Item Included (022828)

• 2200W Copper Wound Induction Motor with Built-in Overload Protection: The jointer is equipped with an efficient 220V all copper wound motor, providing consistent torque for demanding welding and planning tasks. The integrated NHD safety electromagnetic switch continuously monitors motor current and temperature, automatically cuts off power in case of thermal overload to prevent damage, and ensures safe and uninterrupted operation in professional or home workshop.
• Design Precision Grinding of Cast Iron Tables and Heavy-duty Fences: The working surface is precision ground to maintain flatness and smoothness over time, minimizing friction and supporting stable workpiece movement. Paired with rigid cast iron fences, this setup provides reliable reference edges for both straight milling and angle milling, improving dimensional accuracy and repeatability across multiple channels.

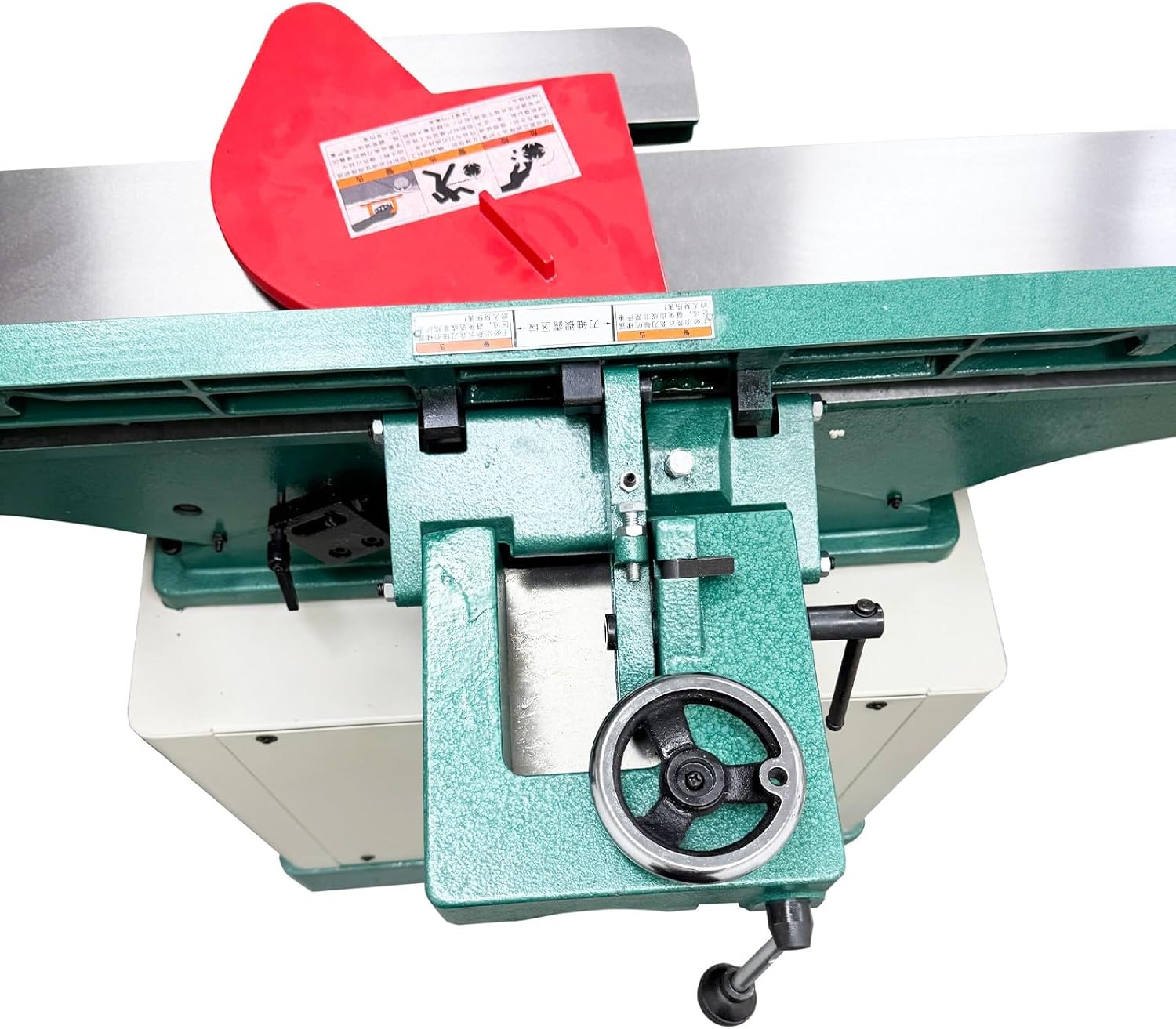

• Including a Sturdy Dovetail Lifting Mechanism, Stable and Precise Depth Control: The worktable is vertically adjusted through a dovetail guided lifting system, which can resist deflection under load and ensure consistent cutting depth even during severe cutting. By combining clearly marked lifting scales and ergonomic adjustment handles, users can quickly and accurately set material thickness without guessing or recalibrating.
• Support Multi Angle Milling and Fence Quick Setting System: The sliding fence platform can be safely locked at common angles (including 45 ° and 90 °), achieving efficient diagonal connection and edge preparation. Stopping design reduces setup time while maintaining alignment accuracy, making it suitable for cabinet, furniture making, and other woodworking applications that focus on details.
• Lockable Casters and Standard Dust Ports Improve Workshop Mobility and Cleanliness: Four rotating casters with foot pedal locks can easily reposition within the workspace while stabilizing the machine during operation. The standard circular dust port is directly connected to most industrial vacuum or dust collection systems, capturing chips and fine particles from the source to maintain visibility, extend tool life, and support a cleaner working places.
