EZRODI Chrome Faucet Diverter Valve Adapter Female M22x 1 Thread with Aerator Kitchen Faucet Diverter Attachment Water Diverter(1/4" O.D RO Tubing Outlet, One-Way Faucet Diverter Valve Kit）

Installation Guide 1. Turn the water supply off. 2. Remove the aerator if the faucet has one, or any mesh screens on the faucet exposing the faucets threads, and determine if your faucet has inner theads or outer threads 3, Internal threads M24 x1 Faucets-use the metal adapter and 2 sealing washers to connect the diverter valve to the faucet 4. External M22x1 threads Faucets-Verify the position of the washer in the faucet diverter valve. Screw the diverter valve onto your faucet until it is snug and the body of the valve will not move. (The diverter valve built in Female M22 x 1 threads and depending on your faucets threads you may need an adapter for a proper fit that can be purchased separately.) 5. Unscrew the compression fitting nut, and slide it over the 1/4" RO tubing you wish to connect to the valve. 6. Push the RO tubing over the barbed nipple on the valve. 7. Slide the compression fitting nut back onto the valve, and screw it on hand tight. 8. With the black valve handle straight down slowly turn your water supply back on. 9. Turn the diverter handle in line with the connector for regular tap water, Turn the black handle 90 degrees perpendicular to the connector for filtered water. Water will now travel through the RO line to your system. 10. Check for any leaks around the compression fitting and faucet threads and determine if you need wrap teflon tape or not

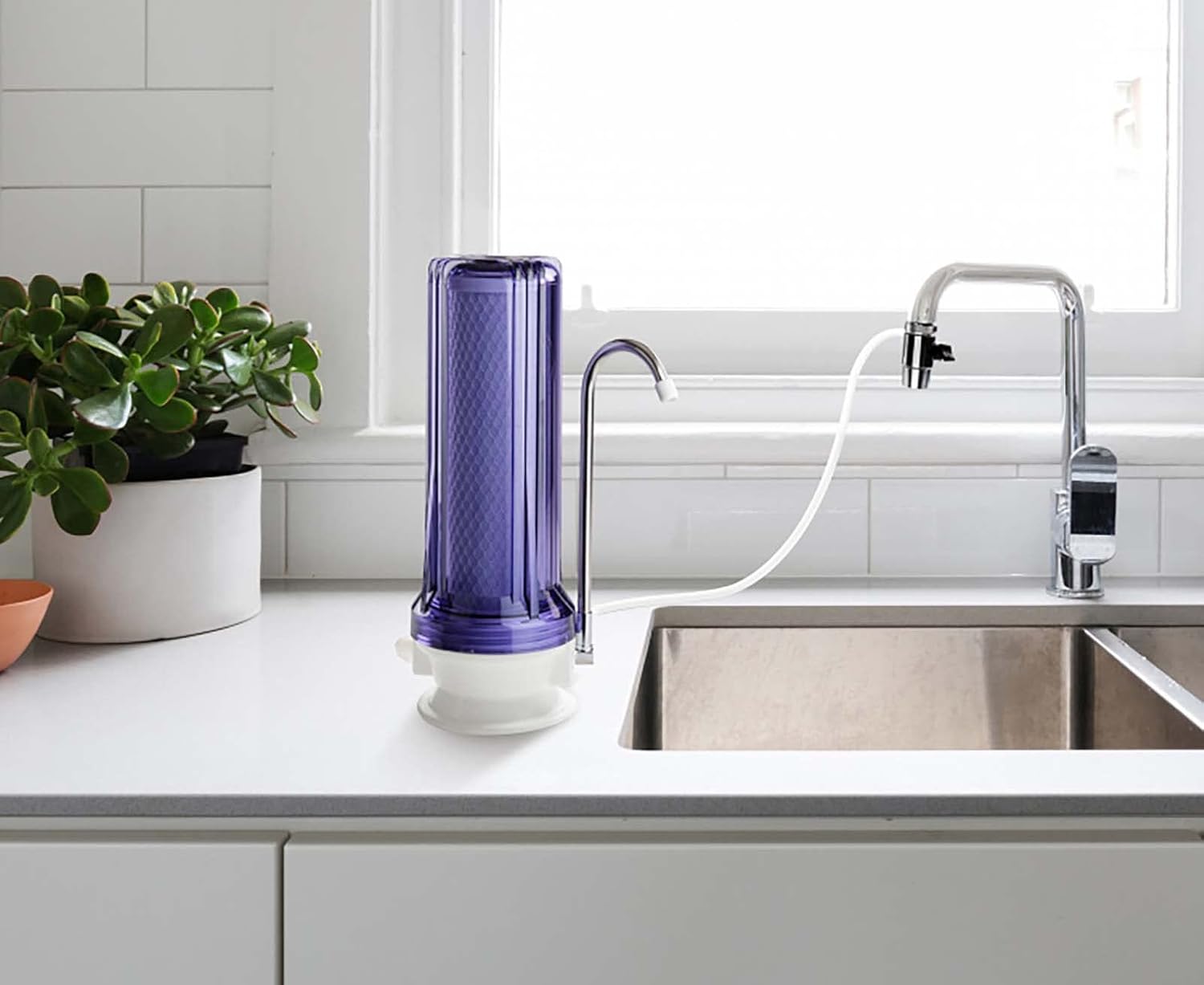

• {WHAT IS IT FOR?}-Faucet water filter control valve attaches to most standard kitchen faucets using a device that simply screws onto your existing faucet to the above counter home water treatment system.It is a great solution that lets you connect your RO system to your household faucet without any permanent modifications. The adapter lets you either use your sink as normal or divert the flow through the faucet to your RODI system.

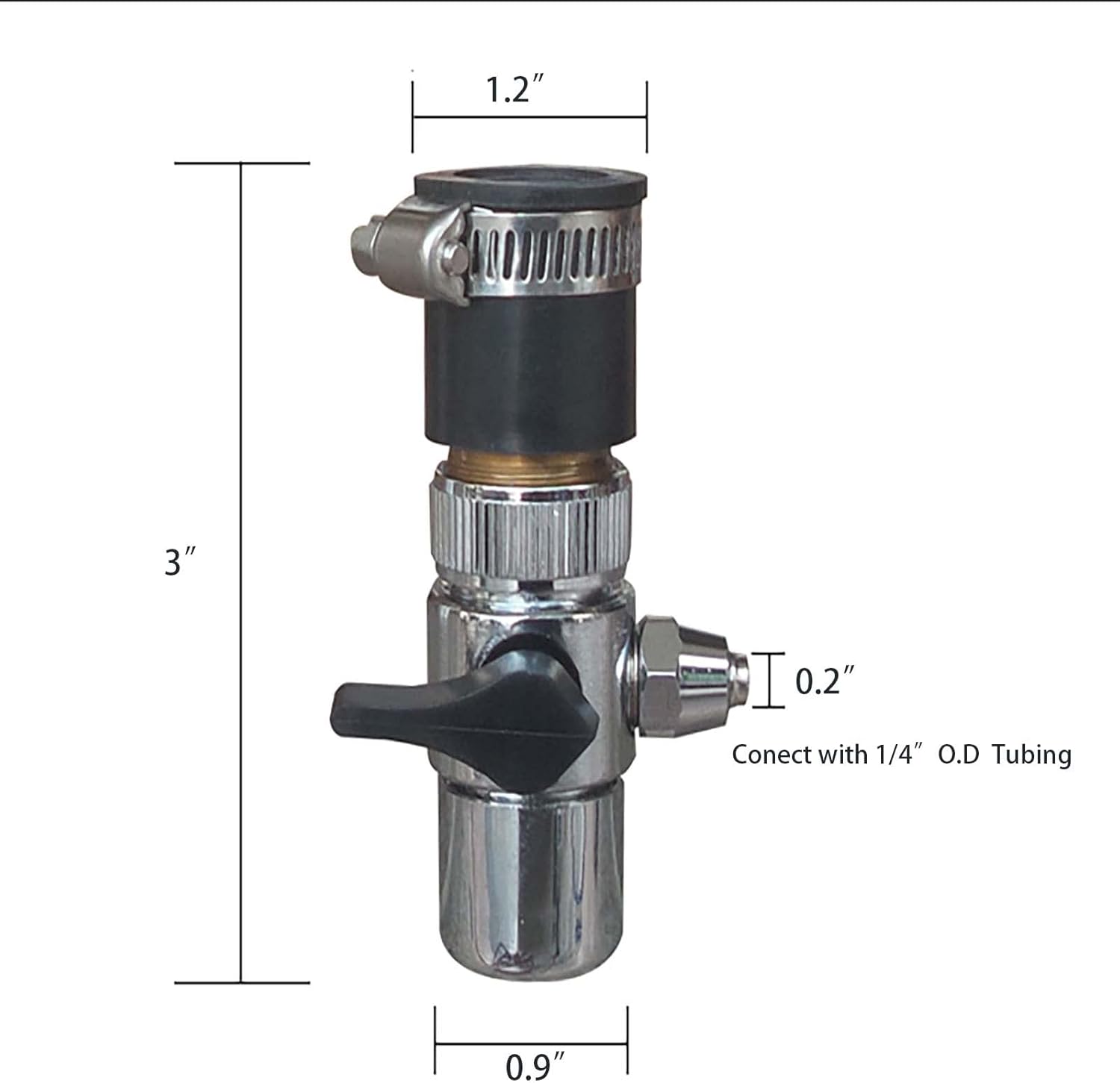

• {CONNECTION SPECIFICATION}-Faucet water filter diverter connection-Built-in female M22 x 1 Thread to work with Regular Faucet with Male M22x 1 Thread or Female M24 x 1 Thread( by adding adapter Dual Male M22 x M24 Thread), or other old style Faucet without thread outer diamerter 0.6“ to 0.75" (by adding universal faucet adapter); Single way RO Tubing Connection-1/4" Compression.
• {TOOL-FREE EASY INSTALLATION}-Kitchen faucet diverter valve can be completed within just a few minutes.No drilling required. Portable and easy to install, check instaillation guide in the product description below
• {UNIVERSAL COMPABILITY}-Compatible with most standard faucets in the market ( except pull-out or hand-held style faucets),Water faucet diverter for ionizer faucet diverter, anchor water filter, doulton,espring water filters and more
• {WHAT PACKAGE INCLUDED}-Ultra safe brass matt chrome finish body with plastic black handle diverter valve x 1; White 1/4" RO Tubing NSF/ANSI Standards 42, 58, 61. x 3 feet ; Dual Male M22 x M24 Thread adapter x 1; Universal faucet adapter x 1; Teflon Tape x 1; Washwer x 2
