Podazz DIY SMD SMT Welding Practice Board Soldering Skill Training Kit

Porduct Features:1. Board Size: 90 x 60mm2. Board Thickness: 1.6mm3. Board Material: International standard board, all pads are tinned, high-strength fireproof and drop-proof material, can be disassembled and assembled repeatedly.4. The PCB board is reasonably designed and uses commonly used patch components.5. The 3 columns of components on the left and right are used to practice welding, and each column has a test point.6. The circular circuit in the middle is a running light circuit, which is composed of CD4017, NE555, and light-emitting diodes. After correct welding, it can work when powered on.7. The back of the circuit is also used, equipped with a ruler to facilitate the measurement of components. There are PCB routing examples inside to facilitate PCB design and use.8. The circuit operating voltage is 3~12V.

• 【Practice Area】There are 125 components and 274 solder joints.Welding time reference: 35 minutes.
• 【International Standard Sheet Material】all gaskets are tin-plated, high-strength fireproof and drop-proof material, can be disassembled repeatedly.
• 【Professional Skills】This is a perfect Soldering skills training materials for beginners. Complete this kit.need a certain professional knowledge base, practical training experience.

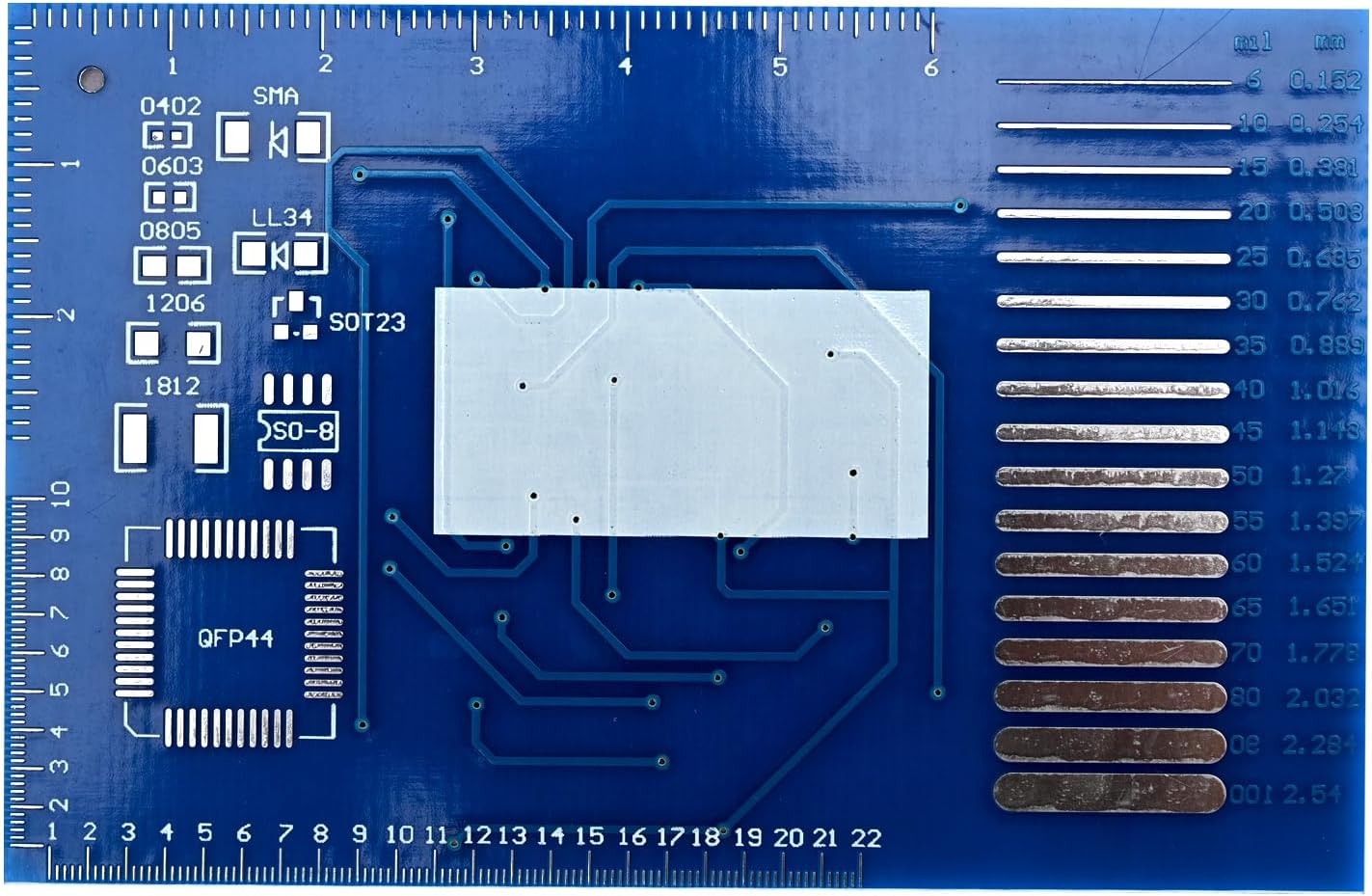

• 【High Quality Material】There is a ruler on the back of the circuit, which is convenient for measuring components. This circuit board is easy to solder and not prone to oxidation, which helps success.
• 【Water Lamp Circuit】3~12V. It is recommended to use 4.5V or above.after welding, just connect electricity to see the effect. You can quickly judge the welding effect. The welding product is a beautiful water lamp circuit.
