TY28 2 Pin 45A Female Male Connector, Panel Mount Socket and Angled 90°Wire Plug, Screw Connection Solder-Free Quick-Disconnect 28mm for Waterproof Outdoor Electrical Power

Features: The connector can provide a safe and reliable connection in the harsh environment . TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box. Specifications: TY28: Model: 2-9 Pin IP Rating: IP68 Panel Cutout Diameter: 28.5mm Cable Outer Diameter Range:10-15mm Coupling Type: Threaded Coupling Shell material: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PA66, max temperature 200℃ Contact Material: Pure copper plated gold Wiring way: Free-Solder / Screw Crimp Mating Cycle: >500 times Temperature Range: -25~+85℃ Package Includes: 1 x Angled plug with male contact 1 x Socket with female contact 1 x Waterproof / Dustproof Cap

• TY28 2-pin waterproof free-solder screw crimp connector, easy for wire cable assembly
• Features Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance

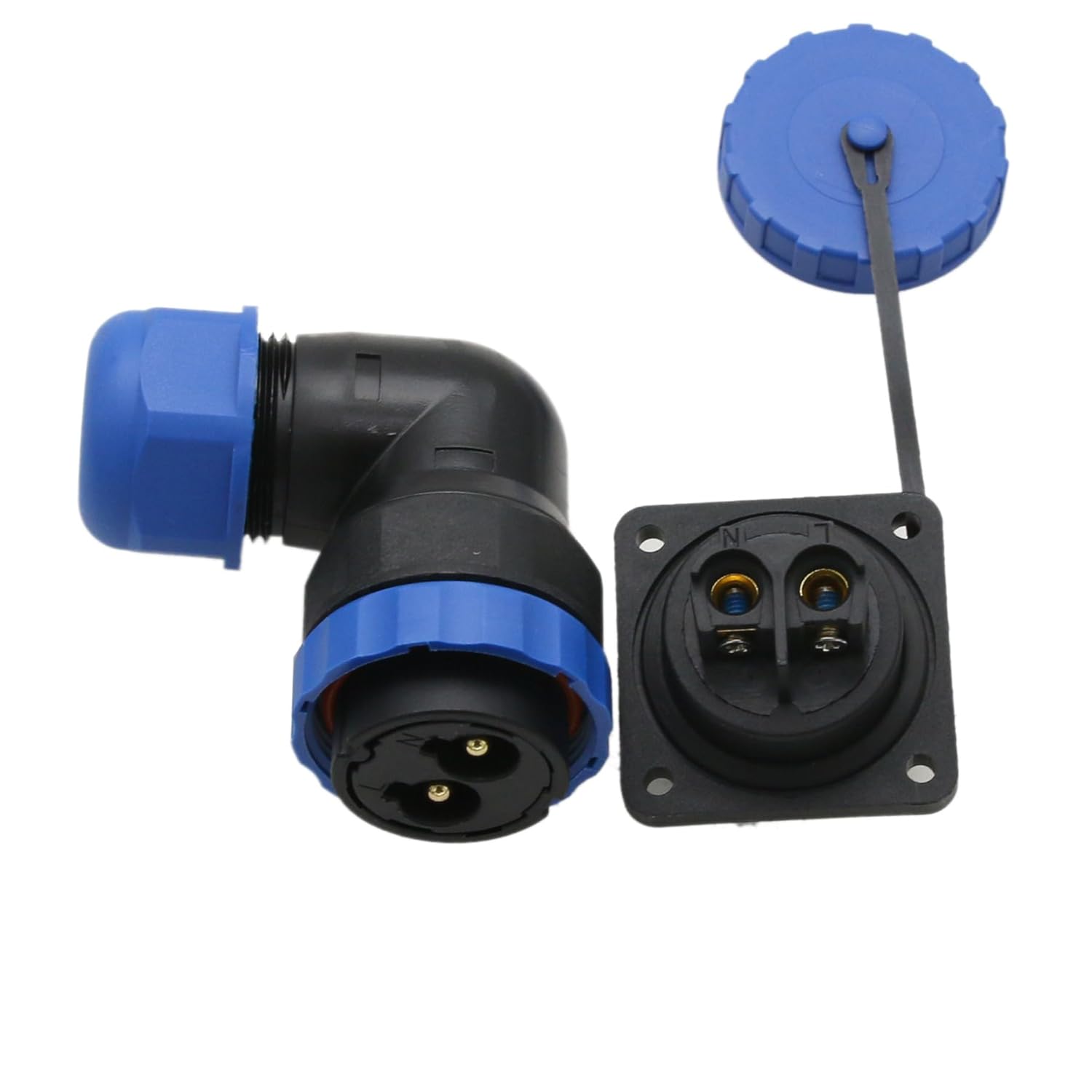

• 4-screw panel mount female socket and 90-degree angled cable plug with watertight cap. Panel cutout diameter is 28.5mm
• Rated Voltage/Current AC 380V/45A, Contact resistance 0.5mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 10-15mm, Wire gauge 6mm² or 10AWG, Contact Diameter Φ3.6mm
• Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment
