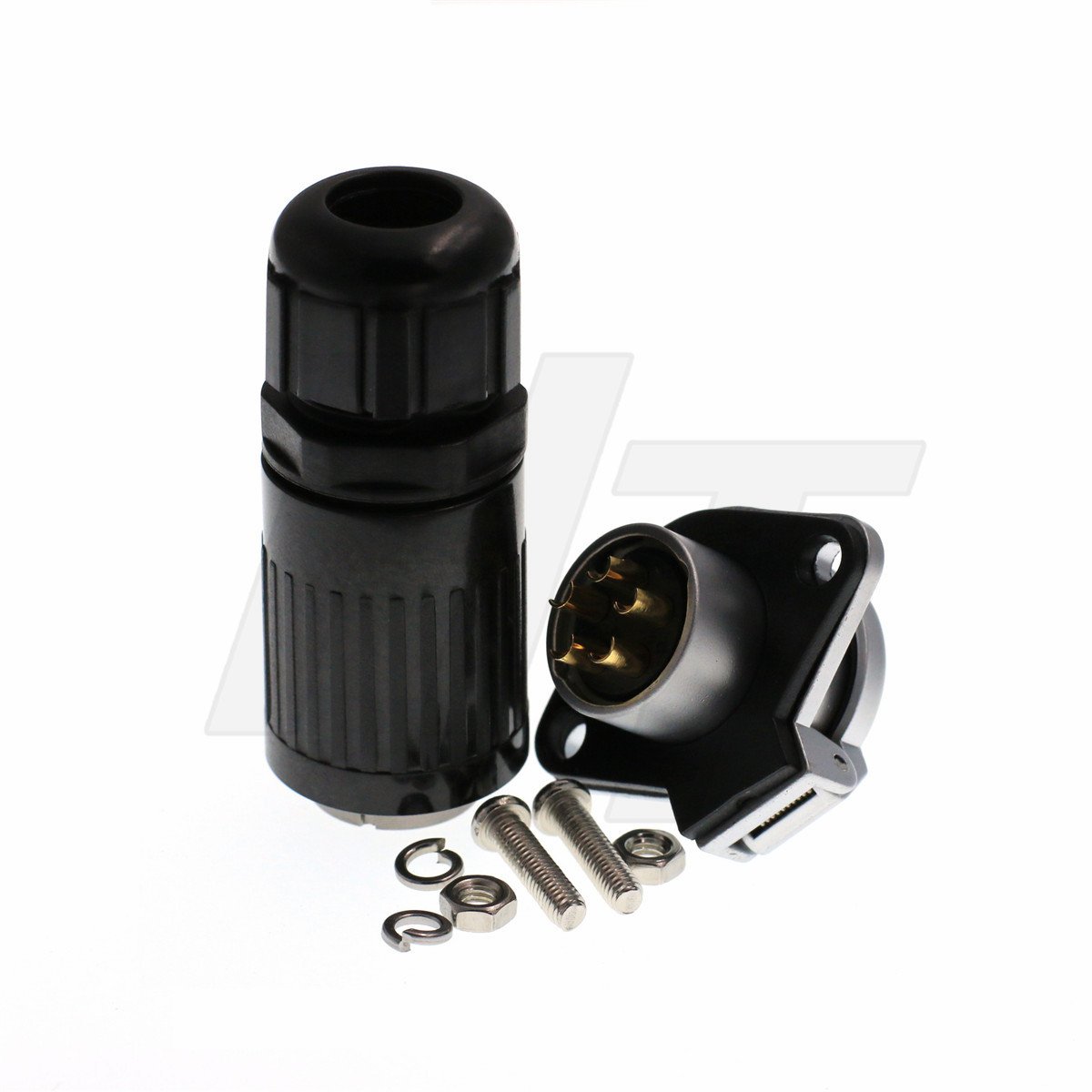

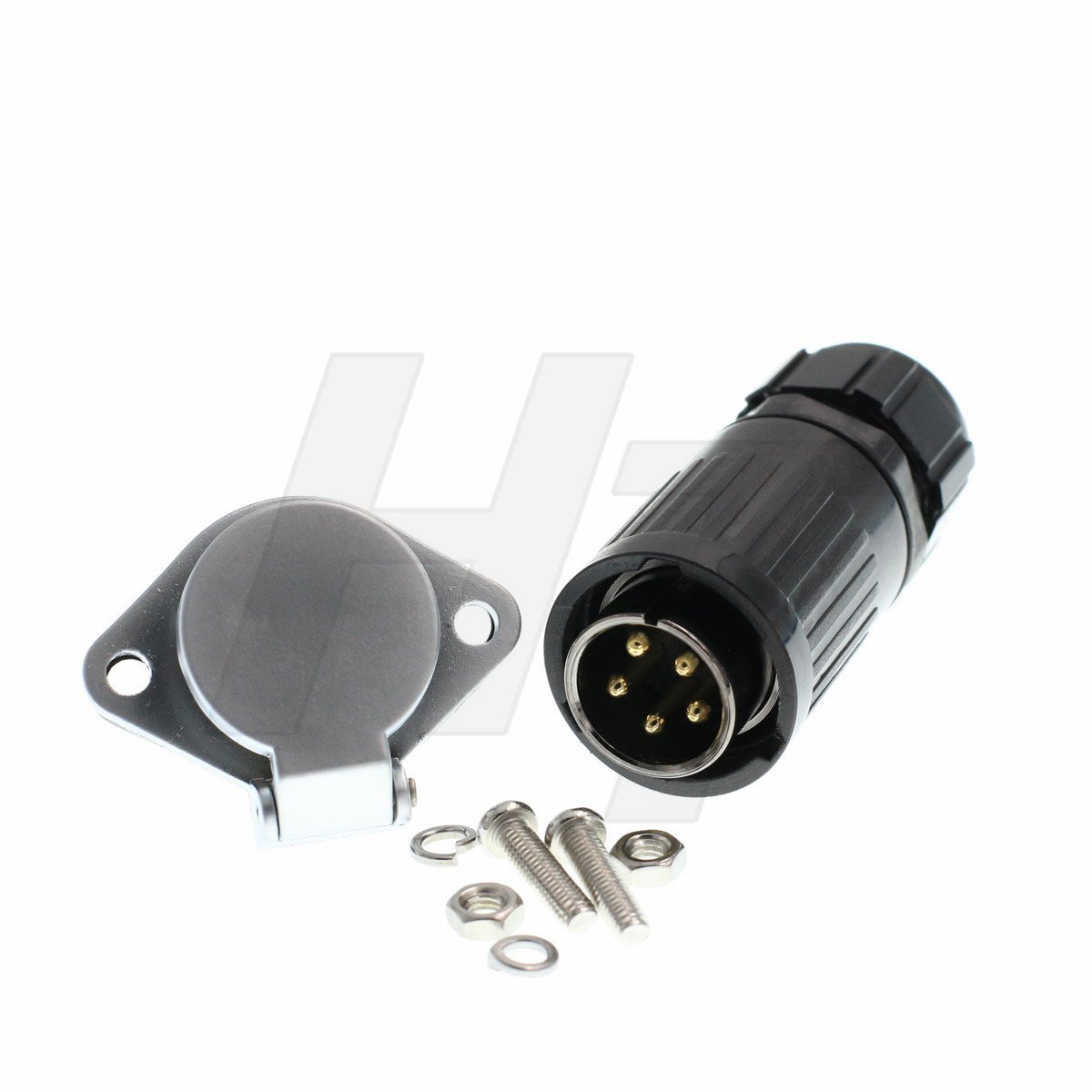

HangTon HP20 5 Pin Connector Waterproof Male Cable Plug Female Panel Socket 500Volts 30A for Industrial Electrical Automotive Marine Devices
4.5 (59 items)
Limited Time Sale$7.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218812486 | Release Date | 2026/05/03 | List Price | $5.20 | Model Number | 218812486 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: In the harsh environment can provide a safe and reliable connection. HP20(Bayonet) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, marine or automatic equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, for data and power distribution. Specifications: HP20: Model: 5 Pin Material: Plastic IP Rating: IP67 Panel Cutout Diameter: 20mm Cable Outer Diameter Range: 8pin ~ 12pin: 4-6mm, 2pin ~ 7pin: 6-12mm Coupling Type: Bayonet Coupling Shell: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Termination: Solder Mating Cycle: >500 times Temperature Range: -25~+85℃ Package Includes: 1 x Cable Plug with Male Pins 1 x Chassis Socket with Female Pins 1 x Waterproof / Dustproof Cap
- Cable Range: 6-12mm, Wire Size: ≤4.17mm² or 11AWG, Contact Diameter: Φ3
- Rated Voltage/Current: AC 500V/30A, Resistance: 1mΩ
- For machines & automotive & LED & marine equipment, lighting system, indoor & outdoor electrical equipment
- Reliable, watertight, dust-proof, explosion-proof, deformation-proof
- Bayonet coupling, quick disconnect, solder cable plug & socket
| Color | Black |
|---|---|
| Gauge | 11.0 |
| Model | HP20 |
| Terminal | Pin Terminal |
| Brand Name | HangTon Connect |
| Unit Count | 1 Count |
| Part Number | HP20 |
| Manufacturer | HangTon Connect |
| Material Type | Plastic |
| Connector Type | Pin |
| Maximum Voltage | 500 Volts |
| Number of Items | 3 |
| Connector Gender | Male |
| Contact Material | Brass |
| Specification Met | Ip |
| Temperature Rating | 85 degree celsius |
| Warranty Description | 1 Year Manufacturer |
| Insulation Material Type | Thermoplastic |
