Wired Banana Jack and Power Pole 10 Outlet DC Power Distribution Strip Box
4.0 (109 items)
Limited Time SaleUntil the end
09
11
45
$57.60 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $96.00
Product details
| Management number | 218813676 | Release Date | 2026/05/03 | List Price | $38.40 | Model Number | 218813676 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

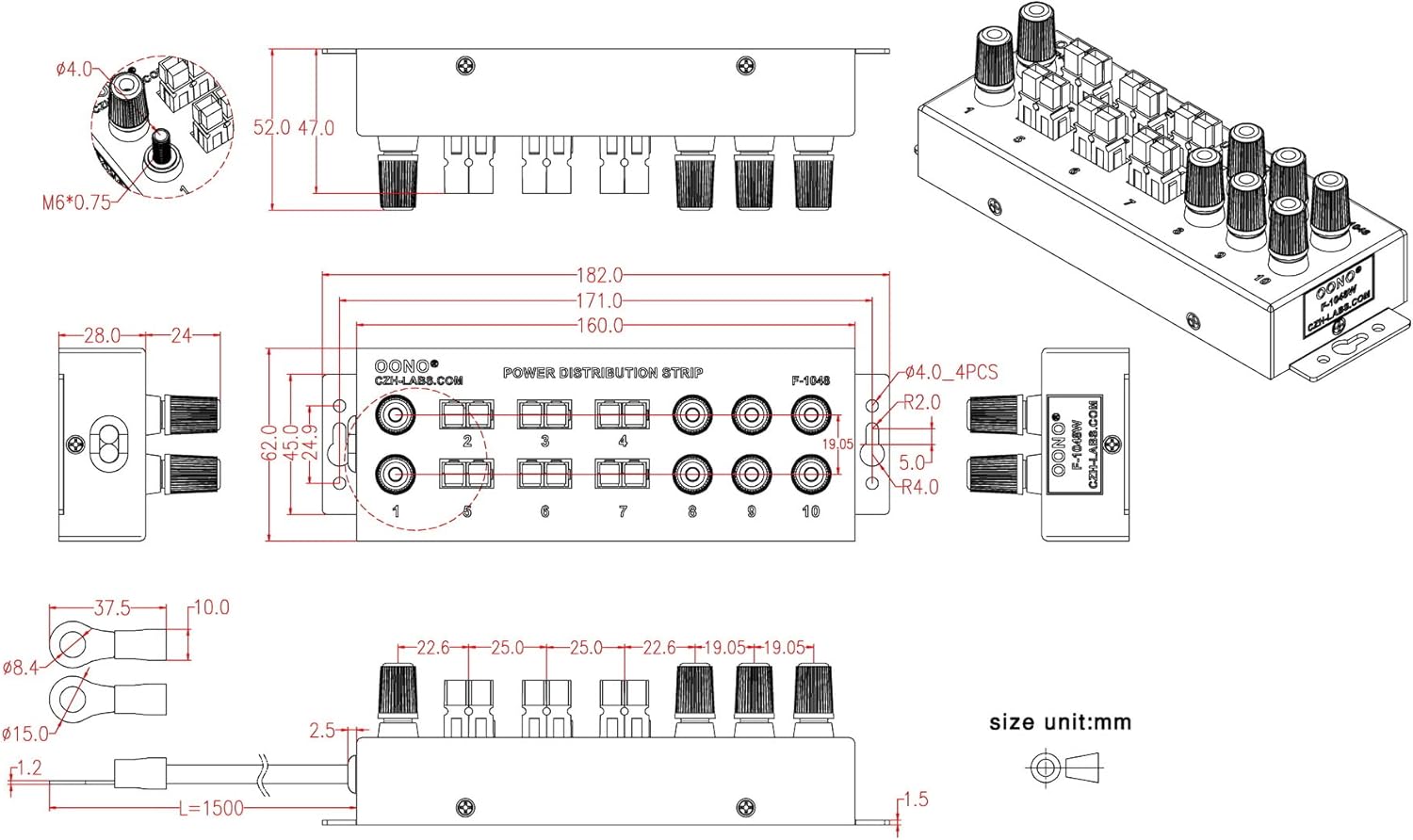

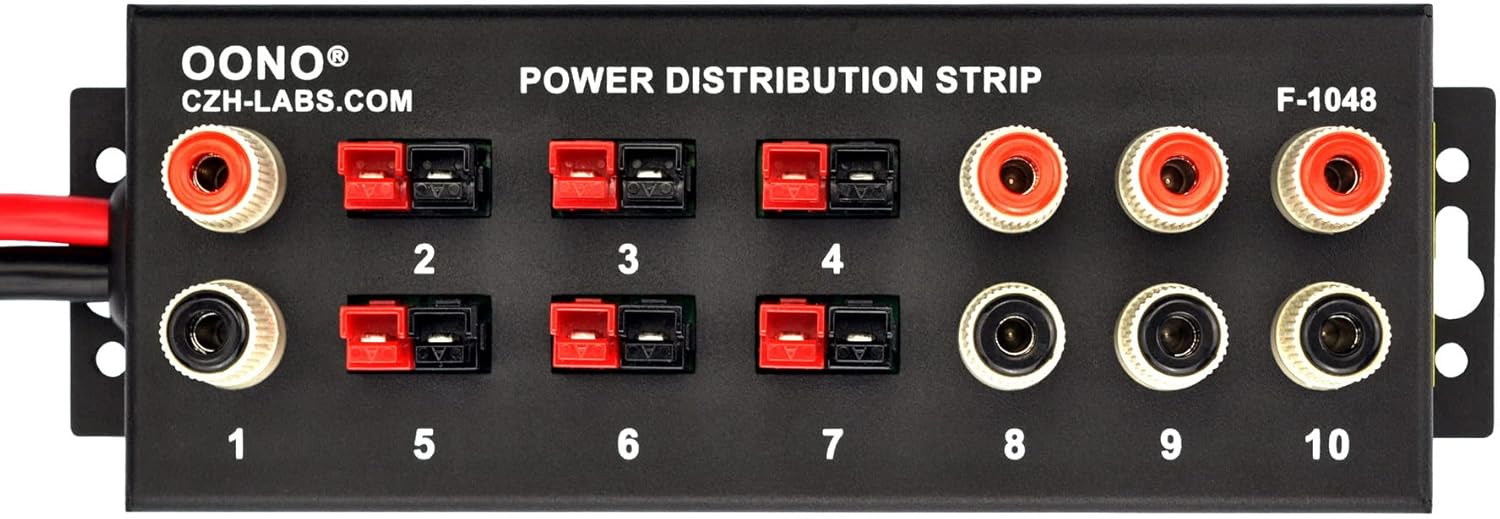

- F-1048W DC power distribution outlet strip are a heavy-duty power distribution strip. 6x (+ and -) position power pole and 4x (+ and -) position banana jack output.
- Operating voltage: Maximum AC/DC 60V. Maximum input/output current for each position: 30 Amp. Maximum total input/output current: 50 Amp. No-load current: 0mA.
- Red(+) and Black(-) colors DC input cable, length 1.5m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals.
- Output: 6 positions power pole socket, can compatible 15A, 30A or 45A power pole connectors. 4 positions high current brass (nickel-plated) standard banana jacks, support standard banana plugs, 1/4 (6.4mm) ring / spade terminals. (Note: the item not include power pole plug, banana plug, 1/4 ring / spade terminals).
- High quality aluminum enclosure, material thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail.
| Brand | OONO |
|---|---|
| Color | Red |
| Shape | Square |
| Voltage | 60 Volts |
| Amperage | 50 Amps |
| Plug Type | Type B |
| Manufacturer | CZH-LABS |
| Model Number | F-1048 Series |
| Maximum Current | 50 Amps |
| Mfr Part Number | F-1048 Series |
| Number of Ports | 10 |
| Number of Outlets | 10 |
| Compatible Devices | Electrical Appliances, Audio Equipment, Solar Panels, Inverters, Battery Packs, TV, Restaurant Equipment, Hotel Appliances, Office Equipment |
| Enclosure Material | Aluminum, Brass |
| Surge Protection Rating | 50 Amps |
| Other Special Features of the Product | Mountable |
