1/2" Male Thread Elbow x 3/8" PE Hose OD Push-In Quick-Connect Fitting for RO Reverse Osmosis Water Filter Plastic Joint, Beverage Dispenser & Water Filtration/Purification Systems (5PCS)

Upgrade your water filtration system with these professional grade quick connect accessories. These 5 packs of white connectors feature a push in design with internal/external threads up to 3/8 inch PE hose, ensuring quick and safe installation. These multifunctional accessories are ideal choices for reverse osmosis systems, water filters, and beverage dispensers. The straight through configuration ensures optimal flow, while the push in mechanism allows for toolless hose connections. Each accessory is carefully designed with durable materials, ensuring reliable performance in water purification applications. The externally threaded pipe provides a secure seal, and the quick connect function makes maintenance and system modifications simple. These connectors are compatible with standard 3/8 inch PE pipes commonly used in residential and commercial water treatment systems. The packaging of multiple accessories provides you with sufficient connectors for new installations or spare parts for future needs.

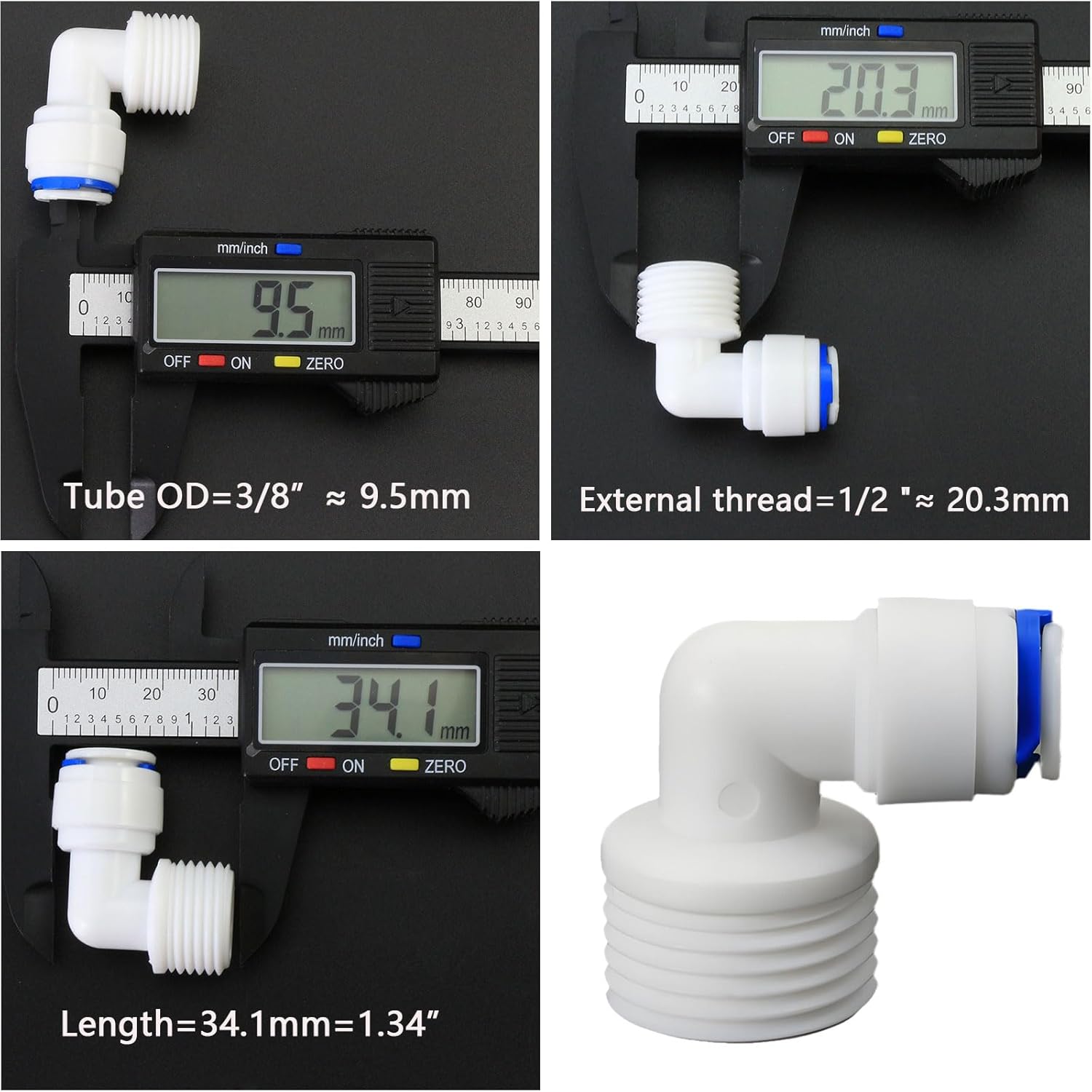

• Specification: 1/2 inch Male Thread Elbow to 3/8inch quick-connect fitting, compatible with PE water filtration system tubing/piping of approximately 9.5mm (3/8 inch) diameter. Features 1/2 inch thread (approx. 20mm/0.79 inch length) for reverse osmosis (RO) water systems and water purifiers. Also compatible with any other connections utilizing 1/2 inch male threads.

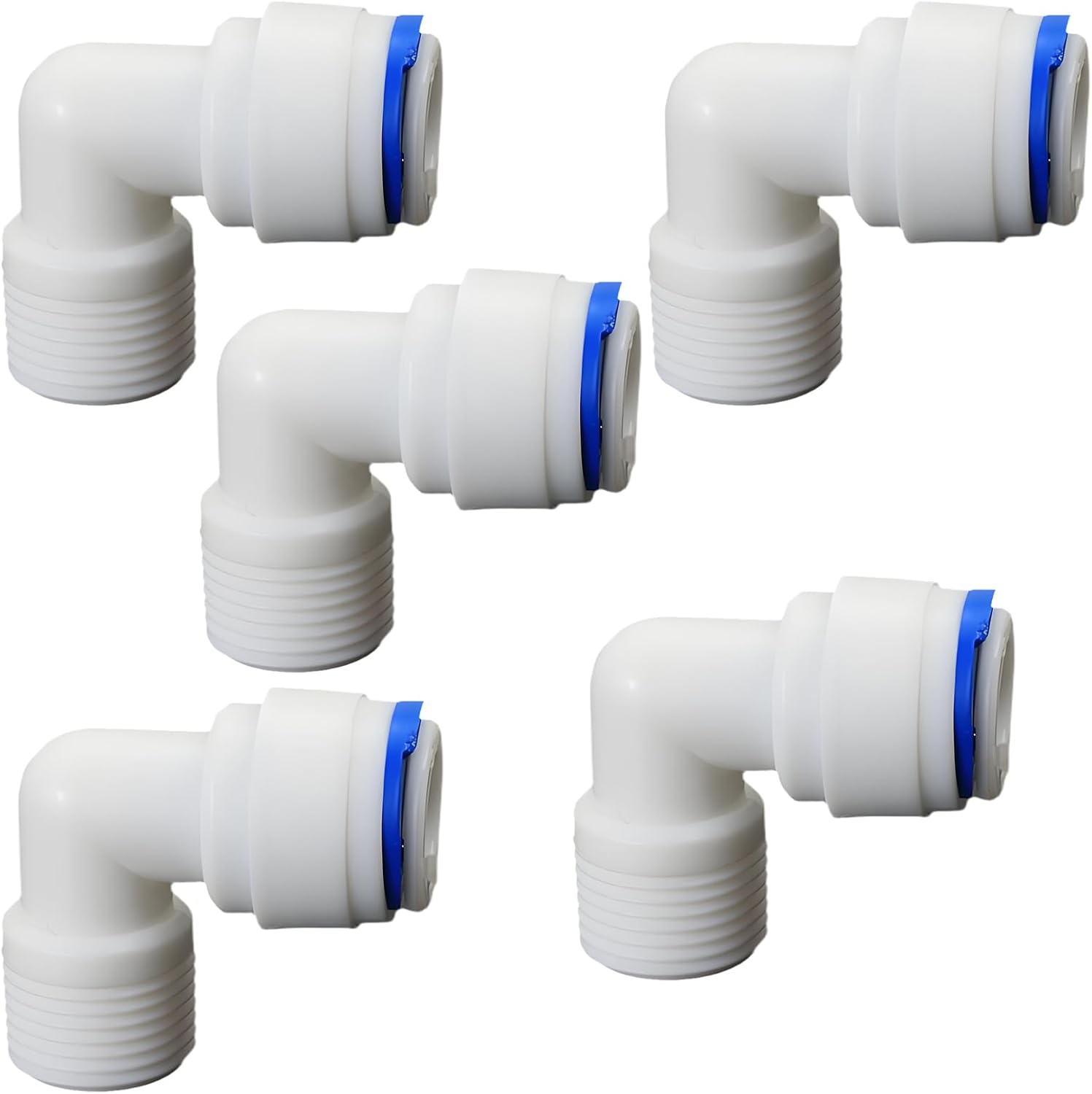

• Package Contents: This set includes 5 straight-through fittings designed to connect 1/2 inch male threads to 3/8 inch tubing. The quick-connect fittings are constructed with durable white plastic and blue locking clips, ensuring reliable performance with leak-proof construction.
• Material: Polyoxymethylene (POM). Features high durability, pressure resistance, and shatter-proof properties for extended long service life. Lightweight design enables flexible application while maintaining easy installation and disassembly capabilities.
• Installation: Wrap the outer thread with appropriate tape, then tighten it by hand and tighten the thread. On the other side of the push in quick connect, first remove the blue buckle, then push the tube into the accessory, insert it firmly, open the water source for testing, confirm there is no leakage, and then insert the blue card. It is recommended to use a professional pipe cutting machine or fruit knife to cut the PE pipe flat, reducing the leakage caused by uneven PE pipe interfaces and quick connections.
• Application: It is commonly used as an outlet hose for reverse osmosis (RO) systems, such as laundry rooms, garden hose faucets/splitters, water purifiers, filters, beverage dispensers, refrigerators, ice makers, coffee machines, aquariums, etc.
