Ting Ao 4X Battery Quick Connect Disconnect Tool Winch Electrical Wire Harness Kit Handy

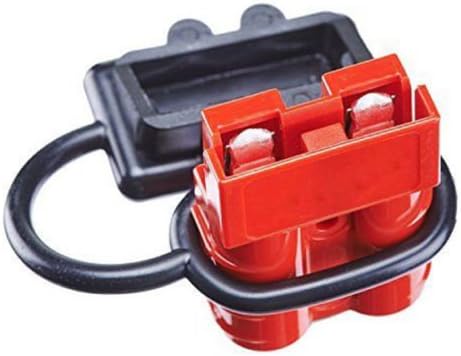

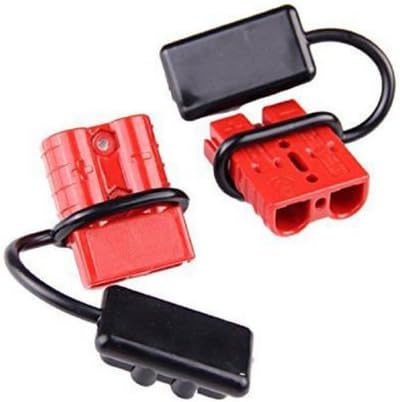

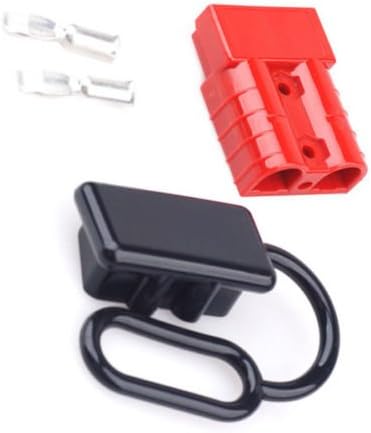

Features: This connector kit allows for quick and convenient connect/disconnect of power from a winch or from another electrical devices such as a remote battery charger, trailer, etc. It is made of durable polycarbonate allowing for over 10,000 connect/disconnect actions. The bottom of the devise features a fitted rubber boot to protect against dust, moisture and corrosion Both ends are suitable for connection to the power or load side because of its identical connectors. The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another. The connectors are ideal for 12-36 volts DC low-voltage and direct current use The heavy duty components are ideal for low or medium current use. Featured with 0.25" inner diameter, the terminal pins accept wire 6AWG, 8AWG, 10-12AWG How to Install: Insert the wires into the terminal pins, then solder or crimp them. Insert the terminal pins into the connector housing and lock them in place Connected Set Dimension: 3 3/16” long x 1 3/8” wide x 1/2” thick Operating Temperature Range: -4°F-221°F / -20°C-105°C Connector Dimension: 1 7/8" long x 1 3/8" wide x 1/2" thick Vibration Resistance: Excellent Impact Resistance: High Package includes: 4 x Connectors 8 x Terminal pins 4 x Rubber boot caps

• This connector kit allows for quick and convenient connect/disconnect of power from a winch or from another electrical devices such as a remote battery charger, trailer, etc.
• It is made of durable polycarbonate allowing for over 10,000 connect/disconnect actions.
• The bottom of the devise features a fitted rubber boot to protect against dust, moisture and corrosion
• The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another.
• Featured with 0.25" inner diameter, the terminal pins accept wire 6AWG, 8AWG, 10-12AWG
