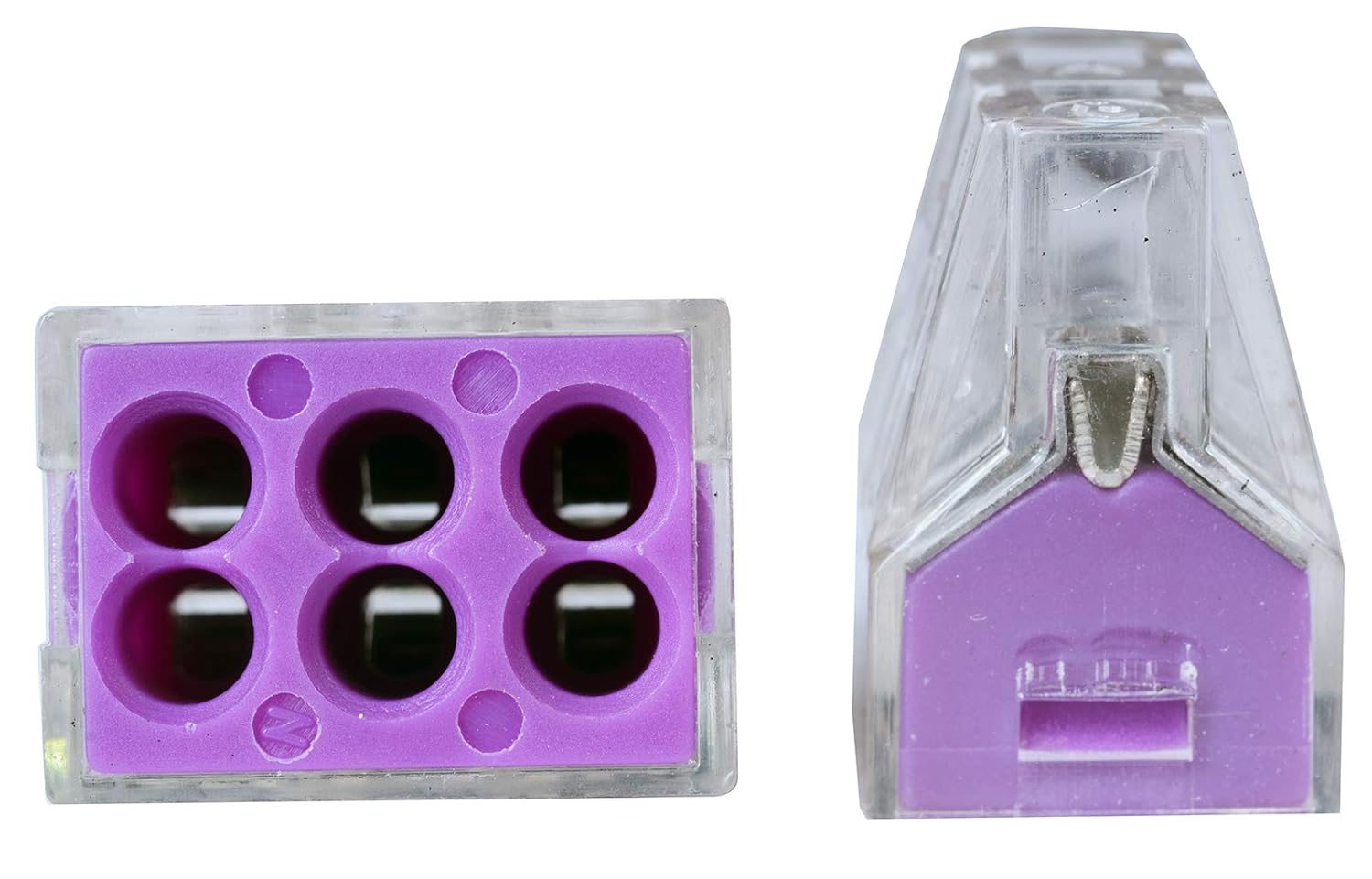

YXQ 6 Port Push-in Wire Connector Wall Nut PCT-106 Conductor 18-12AWG Wires for Junction Boxes (50pcs)

Features: ▪Made of high quality PC insulating material cover, brass conductive strip, long service time, anti-aging, pressure-resistant, anti-corrosion. ▪There is a test hole for check whether the wires have electricity or not by test probes. Specification: ◆Model: PCT-106 ◆Rated Voltage: 250V ◆Rated Current: 24A ◆Rated Impulse Voltage: 4KV ◆Number of connection hole : 6 ◆Terminates: 18-12 AWG solid /16-12 stranded(not fit RV/flexible cable) ◆Size: 19.8x18.8x13.3mm(L*W*H) ◆Weight: 198g Installation notes: 1. Connectors should be installed inside a suitable enclosure, but maybe installed inside cavity's when installing back-less equipment such as domestic lighting. 2. There is no requirement to secure the connectors providing the cables are secured with clips or glands outside the enclosure. 3. As with all connectors these can be reused time after time with no loss of connectivity or capacity. Package include: 50pcs 6 hole connectors

• Fit -Solid wire:0.75~2.5mm2(18-12AWG), Stranded wire: 1.5~2.5mm2
• 6 conductor/6 Port(PCT-106), Wire strip length: 12~13mm
• Electrical Specs: 24A 250 V / 4KV;Made of high quality insulating material cover, brass conductive strip
• Just strip wire and push-in,No twisting, taping or crimping required,Clear housing for visual inspection,easy to use.
• 50pcs 6 pole connectors widely use for HVAC control circuits, mains voltage ring-main, domestic lighting, cooker installations, or as an alternative to the conventional junction box.
