Industrial IP67 Waterproof DC-DC Converter 10-60V to 5V 3A 15W - Solar/Truck/Marine Voltage Regulator, Suitable for Harsh Environments - Dustproof/Shockproof (1-Year Warranty)

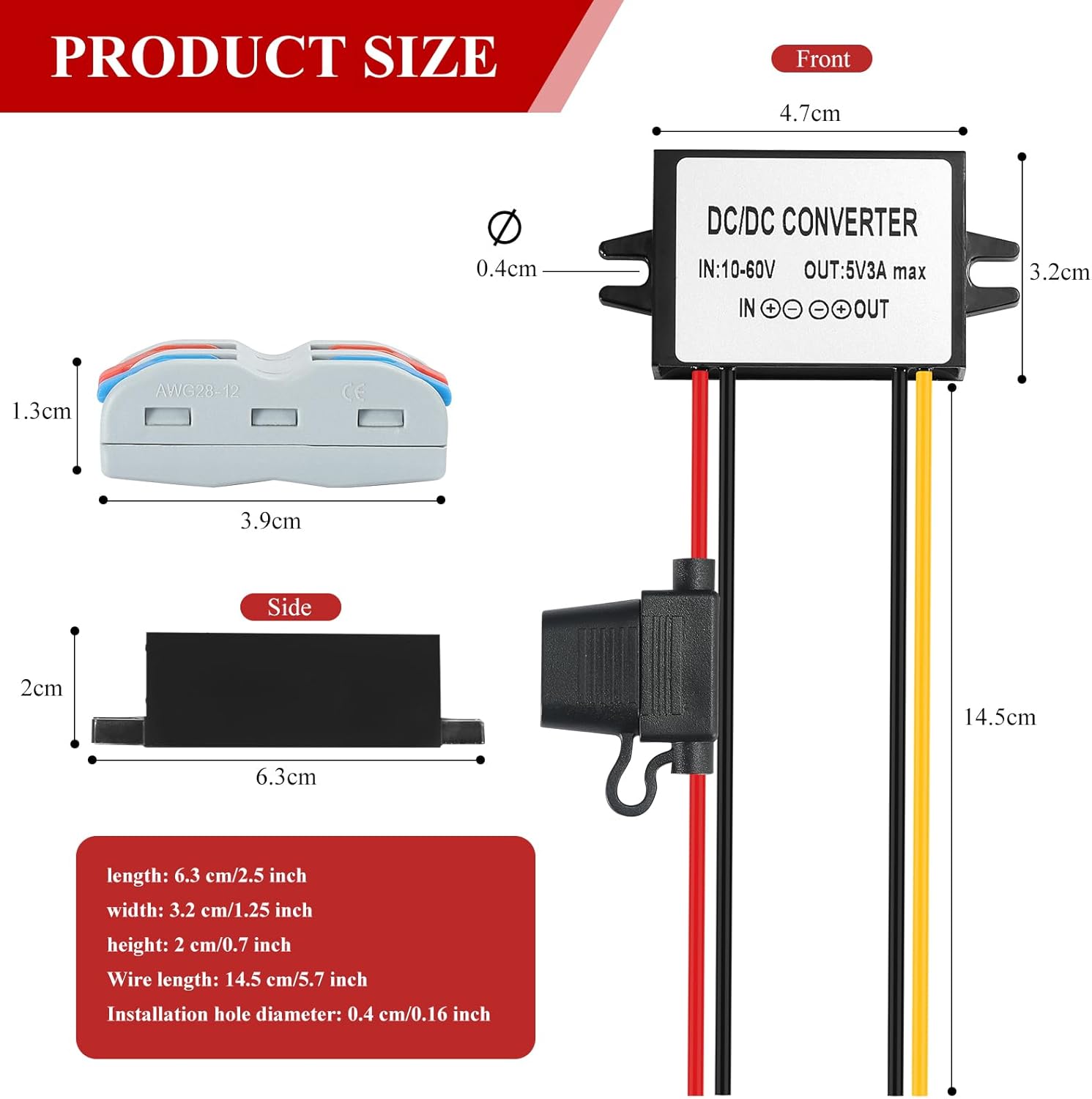

Electrical parameters model: C10-60J5V3A2S input parameter Input range：10-60V Rated input voltage：12/24/36/48V transfer efficiency：95% incoming line：15-16CM(R+ B-) out parameter output voltage：5V Output：3A MAX Maximumoutput：15W MAX No-load adjustment rate：2% load regulation：3% quiescent dissipation：≤15MA ripple wave：200mVP-P The oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor. outlet line：15-16CM(Y+ B-) enviromental parameter working temperature：-20-65° Storage temperature：-40-85° Working humidity：10%-90%RH defencive function classification of waterproof：IP67 Other Weight：0.11 lb Size：1.81*1.26*0.71 inch Heat dissipation method：natural heat dissipation matters need attention 7.memory：The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources. 8.Do not use it near a heat source (such as a fire or a heater). 9.Do not connect the input line to 220V electricity. 10.Do not put the product into the fire or heat it. 11.Do not short-circuit the positive or negative poles of the product with wires or other metal objects. 12.Non-professional personnel are prohibited to disassemble and repair by themselves.

• Buck Converter : Input voltage range: 10-60V; Rated input voltage: 12/24/36/48V; Output voltage: 5V; Output current: 3A MAX; Output power: 15W MAX.
• Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage step-down regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.
• Fuse Protection Function: The 10-60V to 5V5A buck converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.
• IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous step-down technology and has IP67 waterproof function.
• Wide Range of Applications: DC-DC waterproof step-down converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans and DIY.
