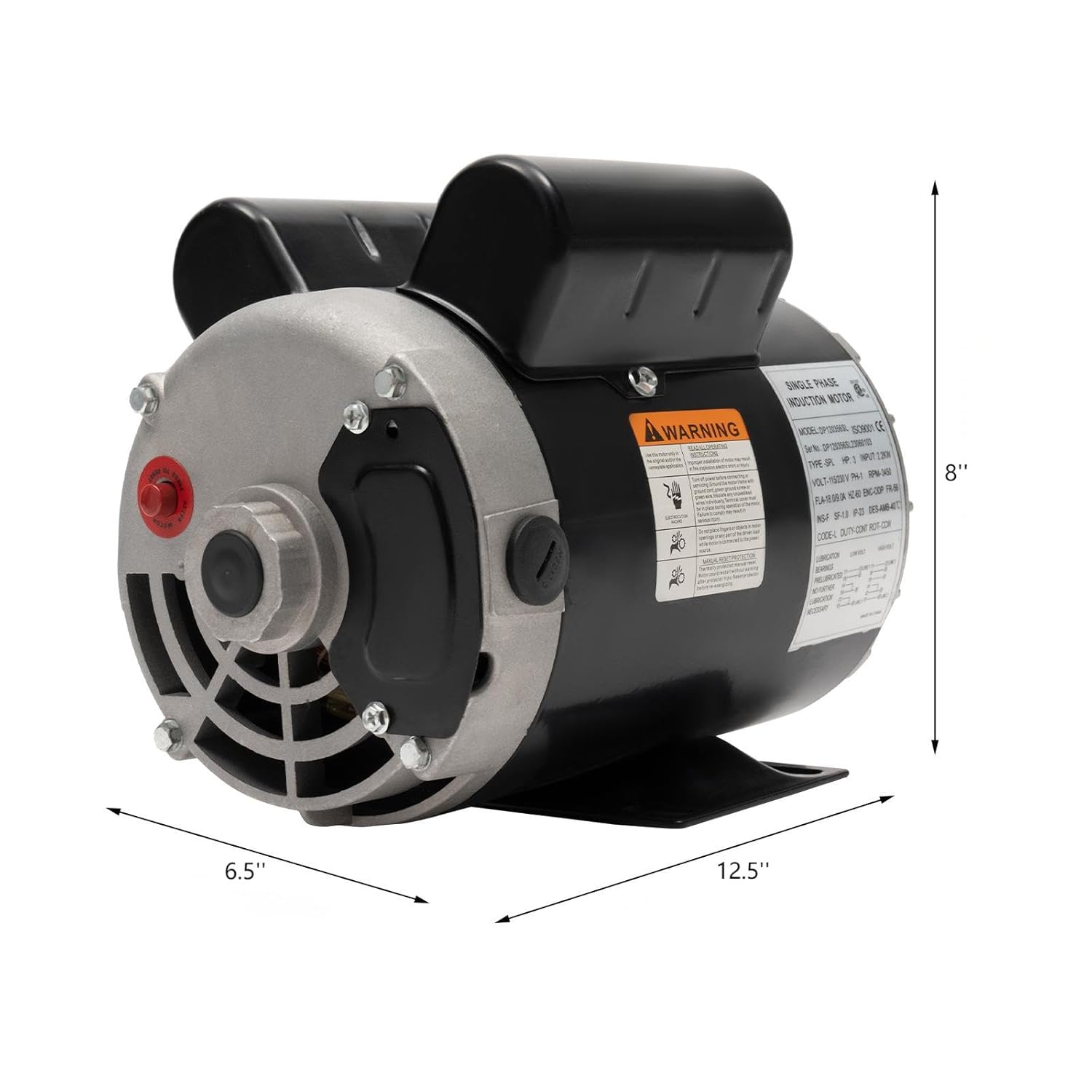

3HP Air Compressor Electric Motor, 3450RPM General Purpose Single Phase Farm Duty Electric Motor for Air Compressor 115V 56 Frame 5/8" Key Shaft

Description:◆ This air compressor electric motor is made of steel plate, aluminum wire, and high-quality ball bearings with high strength and good rigidity, ensuring excellent performance and long service life. ◆ The steel base ensures stable fixation, reduces running vibration and friction, and improves running stability.◆ The 2.2kw high power and the high precision rotor and bearing give this product a rated speed of 3450 rpm, providing efficient, continuous, and stable running, saving you time and cost.◆ The overload, over-current, over-voltage protection, and multi-heat dissipation holes allow it to automatically shut down in non-normal operation and can effectively guarantee safety during use.◆ The reduced amperage starting can ensure it starts at rated load to avoid burnout or breakdown. It can prevent chips and objects from dropping into the motor, so you can use it with confidence.◆ After the machine starts safety protection, you need to press the reset button to restart the motor, making it more convenient.◆ The simple structure and clear English wiring diagram help you achieve a quick and easy assembly, and you just need to make sure all parts are properly and tightly nested.◆ This 5hp electric motor is suitable for various kinds of air compressors and other related appliances.◆ It is widely used in medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, industrial and agricultural production, transportation, commercial and household appliances, and other fields.Specifications:◆ Color: Black◆ Material: Steel Plate, Aluminum◆ Model: DP120356SL◆ Phase: Single Phase◆ Input: 2.2KW◆ Voltage: 115V 60Hz◆ Rated Speed: 3450 RPM◆ Synchronous Speed: 3600 RPM◆ Current: 18/9A◆ IP Rating: IP23 ◆ Insulation Class: F◆ Number of Capacitors: 2 Capacitors◆ Rotation: CCW◆ Frame: 56 Frame◆ Environment Temperature: 104℉◆ Efficiency: 80%◆ Noise: 68 dB◆ Enclosure Type: ODP (Open Drip-Proof)◆ Mounting Type: Base-Mounted◆ Shaft Diameter (Key Shaft): 5/8''◆ Shaft Length: 1.9''◆ Motor Size: 12.5'' x 6.5'' x 8''◆ Package Size: 13'' x 7'' x 10''◆ Shipping Weight: 28 lbsPackage Includes:◆ 1 x Air Compressor Electric Motor◆ 1 x English Instructions

• 【HIGH QUALITY MATERIALS】Our air compressor electric motor is made of steel plate, aluminum wire, and high-quality ball bearings with high strength and good rigidity, ensuring excellent performance and long service life. The steel base ensures stable fixation, reduces running vibration and friction, and improves running stability.
• 【HIGH WORKING EFFICIENCY】The 2.2kw high power and the high precision rotor and bearing give this product a rated speed of 3450 rpm, providing efficient, continuous, and stable running, saving you time and cost.
• 【MULTIPLE PROTECTIONS】The overload, over-current, over-voltage protection, and multi-heat dissipation holes allow it to automatically shut down in non-normal operation and can effectively guarantee safety during use.
• 【SAFETY DESIGN】The reduced amperage starting can ensure it starts at rated load to avoid burnout or breakdown. It can prevent chips and objects from dropping into the motor, so you can use it with confidence. After the machine starts safety protection, you need to press the reset button to restart the motor, making it more convenient.
• 【WIDE APPLICATION】This 5hp electric motor is suitable for various kinds of air compressors and other related appliances. It is widely used in medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, industrial and agricultural production, transportation, commercial and household appliances, and other fields.
• 【SIMPLY ASSEMBLY】The simple structure and clear English wiring diagram help you achieve a quick and easy assembly, and you just need to make sure all parts are properly and tightly nested.
