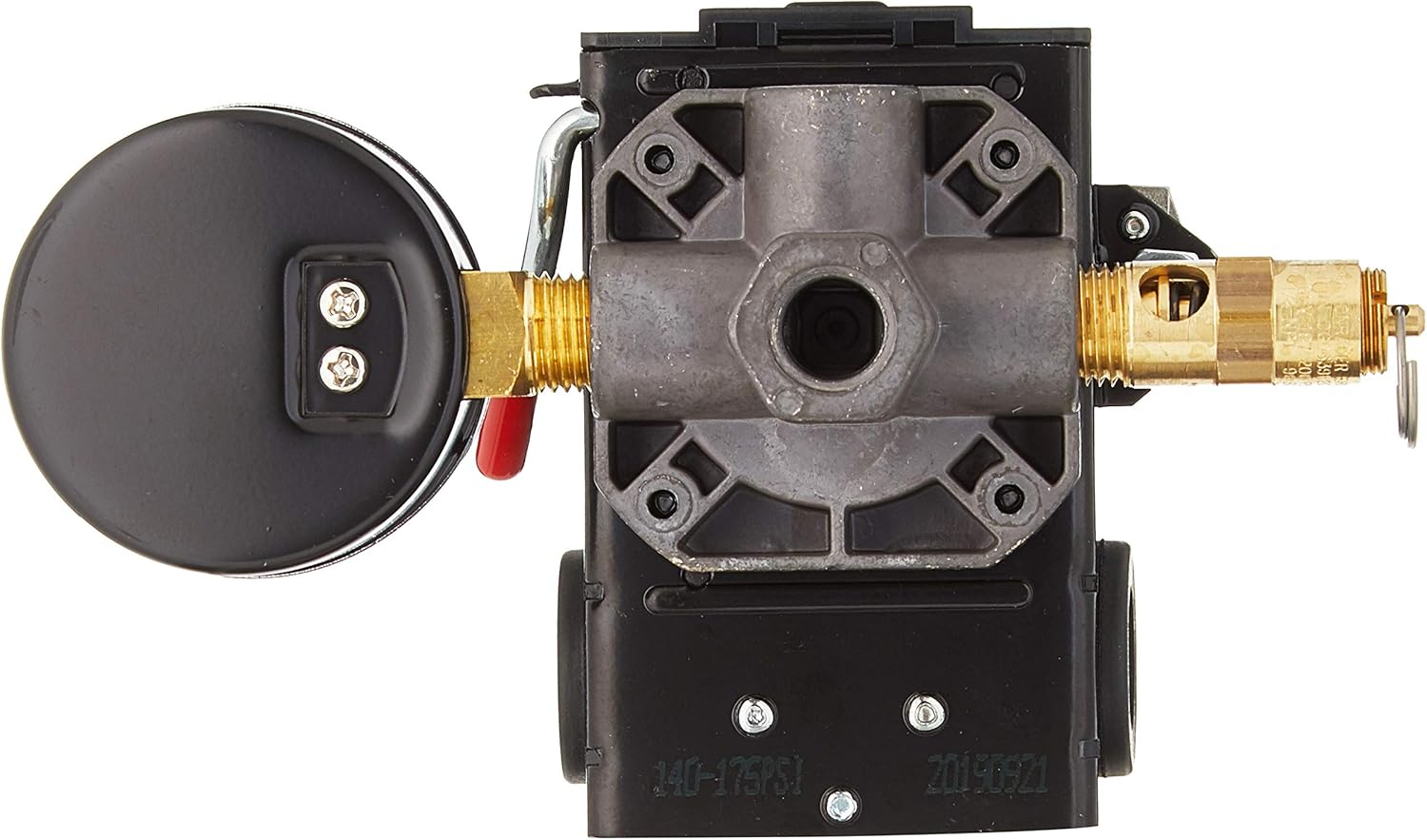

26 AMP H/D PRESSURE SWITCH AIR COMPRESSOR 145-175 4 PORT w/0-200 psi Gauge & 200 psi Pop off valve
4.5 (137 items)
Limited Time Sale$15.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219159153 | Release Date | 2026/05/03 | List Price | $10.40 | Model Number | 219159153 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
H/D PRESSURE SWITCH AIR COMPRESSOR 90-125 4 PORT 26 AMP w/ Gauge & Pop off valve 0-200 PSI Pressure Gauge 200 PSI Pop off valve HEAVY DUTY 26 AMP PRESSURE SWITCH Lefoo AIR COMPRESSOR CONTROL VALVE LF10A-L4,Four port, 145-175 PSI 26 AMP AMP RATING: 26 AMPS SINGLE PHASE OR THREE PHASE, 110/230 · Air Compressor Pressure Switches · For all global air compressor applications. · LF 10A Four Port Series (LF10A-L4) · UL Listed and CSA Certified. · DPST switch · Rated 26 Amps · Temp. range: -22° to 257°F Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 145-175 PSI, Pressure Range 35 to 150 PSI, Burst Pressure 500 PSI, Port Type 4-Port 1/4 In NPT (Female), 1/4" Compression Unloader, Diaphragm Actuation Type, Manual Switch Action Auto/ Off, Single Phase, DPST Contact Type, 26 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA TYPE Air Compressor ITEM Pressure Switch ACTION Standard FACTORY ON/OFF SETTING (PSI) 145-175 PRESSURE RANGE (PSI) 35 to 150 BURST PRESSURE (PSI) 500 NUMBER OF PORTS 4 PORT TYPE 1-Port 1/4" NPT (Female) UNLOADER 1/4" Compression ACTUATION TYPE Diaphragm MANUAL SWITCH ACTION Auto/ Off PHASE Single CONTACT TYPE DPST AMPS 26 HP @ 1 PHASE - 120V 2 HP @ 1 PHASE - 230V 3 ENCLOSURE NEMA 1 TEMP. RANGE (F) -22 to 257 STANDARDS UL/CSA SERIES LF10 WEIGHT 0.850000
- H/D PRESSURE SWITCH AIR COMPRESSOR 145-175 4 PORT 26 AMP w/ Gauge & Pop off valve 0-200 PSI Pressure Gauge 200 PSI Pop off valve
- efoo AIR COMPRESSOR CONTROL VALVE LF10A-H4,Four port, 145-175 PSI 26 AMP AMP RATING: 26 AMPS SINGLE PHASE OR THREE PHASE, 110/230
- Air Compressor Pressure Switches · For all global air compressor applications. · LF 10A Four Port Series (LF10A-L4) · UL Listed and CSA Certified. · DPST switch · Rated 26 Amps · Temp. range: -22° to 257°F
- Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 145-175 PSI, Pressure Range 35 to 150 PSI, Burst Pressure 500 PSI, Port Type 4-Port 1/4 In NPT (Female), 1/4" Compression Unloader, Diaphragm Actuation Type, Manual Switch Action Auto/ Off, Single Phase, DPST Contact Type, 26 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA
| UPC | 795525335507 |
|---|---|
| Color | Black |
| Noise | 40 Decibels |
| Style | Other |
| Voltage | 120 Volts, 230 Volts |
| Brand Name | I.E.E |
| Model Name | LF10A-H4 Gauge + Popoff |
| Unit Count | 1.00 Count |
| Item Weight | 0.85 Kilograms |
| Manufacturer | Lefoo |
| Model Number | LF10A-H4 Gauge + Popoff |
| Power Source | Corded Electric |
| Material Type | Metal |
| Maximum Power | 2 Horsepower |
| Maximum Pressure | 200 Pound per Square Inch |
| Maximum Horsepower | 2 Horsepower |
| Additional Features | Heavy Duty |
| Included Components | Pressure Gauge |
| Manufacturer Part Number | LF10A-H4 Gauge + Popoff |
| Recommended Uses For Product | Air Brushing, Drilling, Nailing, Spraying |
