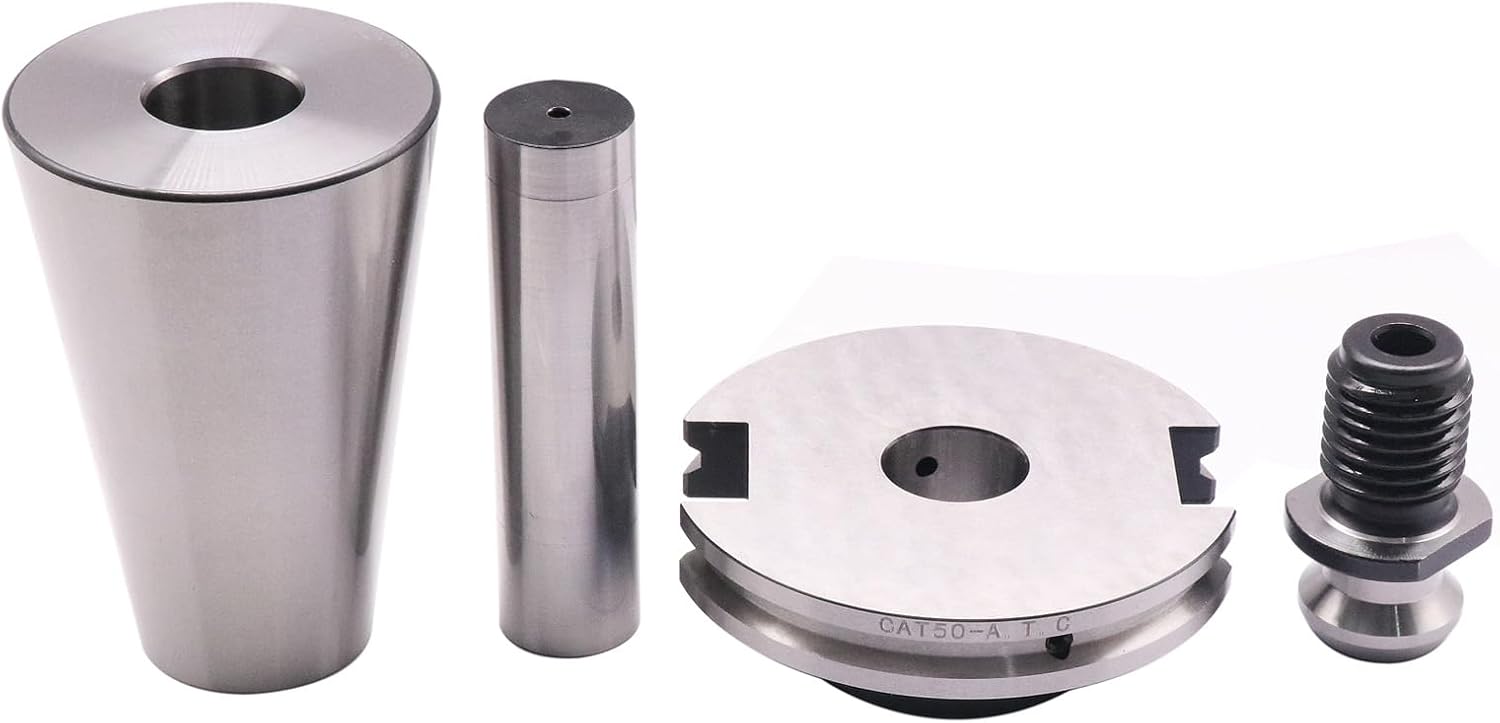

BestParts CAT50 Alignment Gage Steel Tool Holder Set For CAT50-A.T.C Spindle CNC Milling machines

Descriptions:Holder Type: Gage ToolModel: CAT50 AlignmentMaterial: SteelShank Type: CAT50Arbor Diameter: 1"Drawbar Thread: 5/8"-11Gage Length: 4.0"Run Out(TIR): 0.0001"Features:All the end faces are finely ground which can well ensure the overall accuracy of the tool holder, so as to ensure the accuracy of the measurement!First carburizing and then quenching processHigh surface precision, high wear resistance and fatigue strength, maintain the toughness of the core after quenching of low carbon steel, so that the handle can bear the impact load20CrMnTi steel with high strength and hardness,durable in usePackage included:1pc CAT50 Alignment Gage Tool Holder

• Material: 20CrMnTi steel with high strength and hardness,durable in use.
• Features: All critical surfaces precision ground, first carburizing and then quenching process. Full inspection of high hardness products, Exquisite workmanship, one-time clamping, one-time forming inside and outside, high concentricity.
• Descriptions: Shank Type: CAT50, Arbor Diameter: 1", Drawbar Thread: 5/8"-11, Gage Length: 4.0", Run Out(TIR): 0.0001".
• Application: Correct the tool change accuracy error between the manipulator and the spindle in the tool magazine, so as to solve the abnormal noise of the tool change/the tool change is not in place, and then prevent the damage between the tool holder and the spindle.
• Instructions: Fix the dial indicator on the spindle, and check whether the two ends of the automatic tool changer arm are straight. When the A piece, the T piece and the C piece are in the same center line, the A piece in the horizontal position can smoothly pass the T piece in the automatic tool change arm and the C piece fixed in the machine tool spindle, then the tool change is successfully completed, and the automatic change The knife arm is accurate.
• Package included: 1pc CAT50 Alignment Gage Tool Holder.
