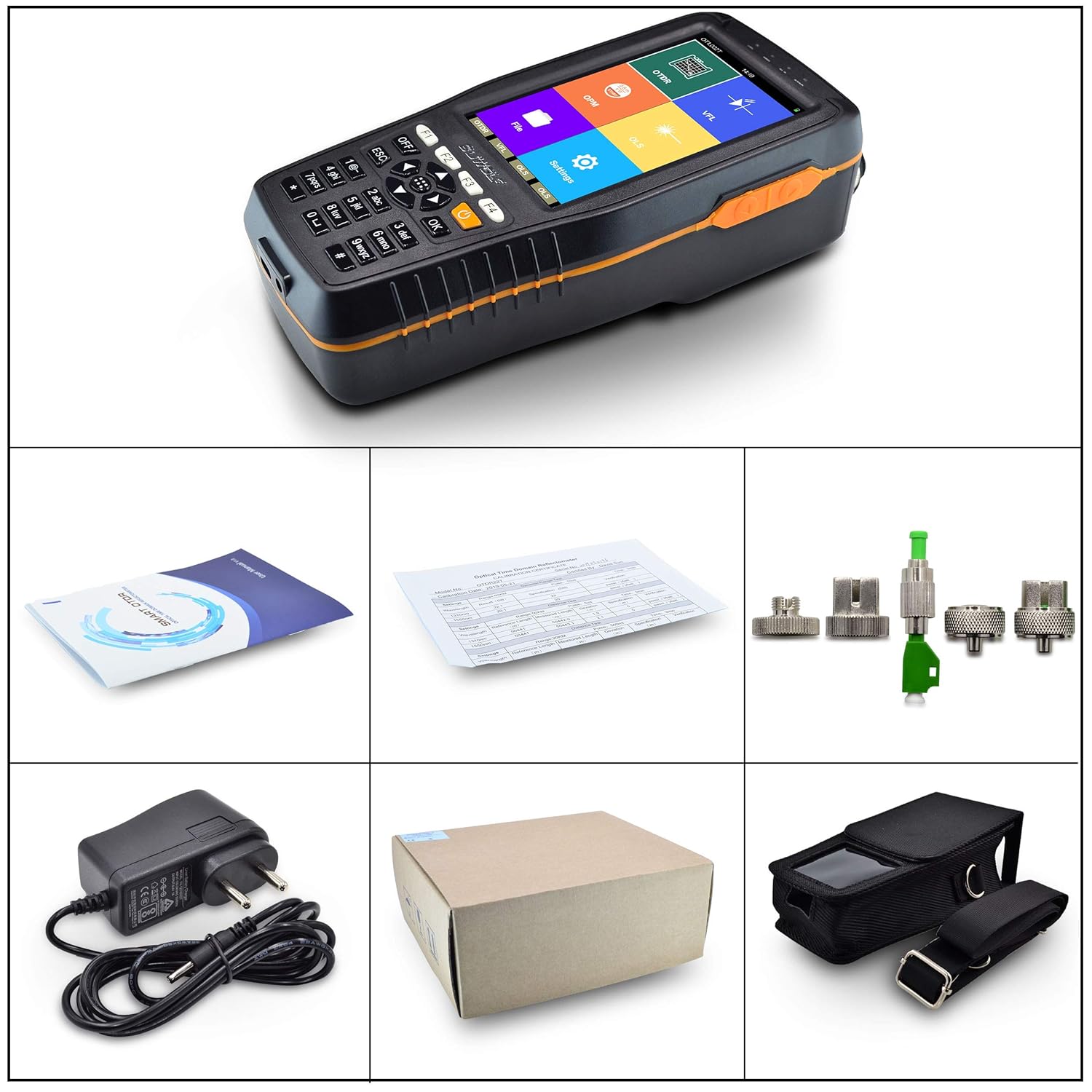

1310/1550nm 22/20dB Handheld 4in1 OTDR +VFL+OPM+OLS 4" Touchscreen 60km OTDR Fiber Optic Tester Optical Time Domain Reflectometer for APC SC+FC+LC Adapter(OTDR22F)
4.7 (91 items)
Limited Time Sale$173.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219303604 | Release Date | 2026/05/03 | List Price | $115.60 | Model Number | 219303604 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【4in1 Multi-Function OTDR】--SUWOLF OTDR22F is a 4in1 multi-function Optical Time Domain Reflectometer (OTDR), it include four fuction:OTDR-1310/1550nm&22/20dB(60km(6.3mi) Test Distance), Visual Fault Locator (VFL)-650nm&10km(6.3mi),Optical Fiber Power Meter(OPM)-800～1650nm&-50～+26 dBm and Optical Light Source(OLS)-1310/1550nm,and it is the most cost-effective OTDR.
- 【Portable Design】--Very Small size and light weight--Only 180x80x50mm/7.1x3.1x2.0inch and 0.45KG/1LB,and it is very easy to carry anywhere; meanwhile, SUWOLF OTDR22F is equipped with 4inch IPS outdoor-enhanced touchscreen, It is more convenient to use than an OTDR with only buttons, and 7.4V/4400Ah Lithium battery can meet the fiber test requirements of one day. Use the rubber Key, good dustproof, waterproof, quakeproof ability, suitable for field maintenance work.
- 【High Accuracy and Lower Dead Zone】-- Dead Zone of Reflection as lower as 2meter,and Dead Zone of attenuation Event as lower as 12meter, so it does not require OTDR launch cable when testing fiber; meanwhile,The max measure distances is 60km(38mi), and the accuracy distance (Reflection Event) is about ±(1m+2*10(-4)*Distance),it suitable for engineer construction and maintenance fault location of FTTx and access network.
- 【Wide Compatibility】-- SUWOLF OTDR22F is a fully featured, entry-level, dedicated OTDR,it is compatible with APC SC+FC+LC connector for telecommunications, radio and television, railway, electric power, military, education ,research institutes etc.
| UPC | 725766330566 |
|---|---|
| Color | OTDR22F |
| Model | OTDR22F-T1 |
| Brand Name | SUWOLF |
| Style Name | Lightweight |
| Unit Count | 1.0 Count |
| Item Weight | 0.7 Pounds |
| Part Number | OTDR22F-T1 |
| Manufacturer | SUWOLF |
| Power Source | Battery Powered |
| Item Dimensions | 7.09 x 3.15 x 1.97 inches |
| Measurement Type | power meter |
| Specification Met | CE, RoHS |
| Compatible Devices | Amplifier |
| Included Components | OTDR___ELF-290 |
