Original Mean Well XDR-240E Series 240W 12V 24V 36V 48V AC/DC Industrial DIN Rail Switching Power Supply XDR-240E-12 XDR-240E-24 XDR-240E-36 XDR-240E-48 (XDR-240E-48 48V)
4.6 (60 items)
Limited Time Sale$34.89 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219307642 | Release Date | 2026/05/03 | List Price | $23.26 | Model Number | 219307642 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

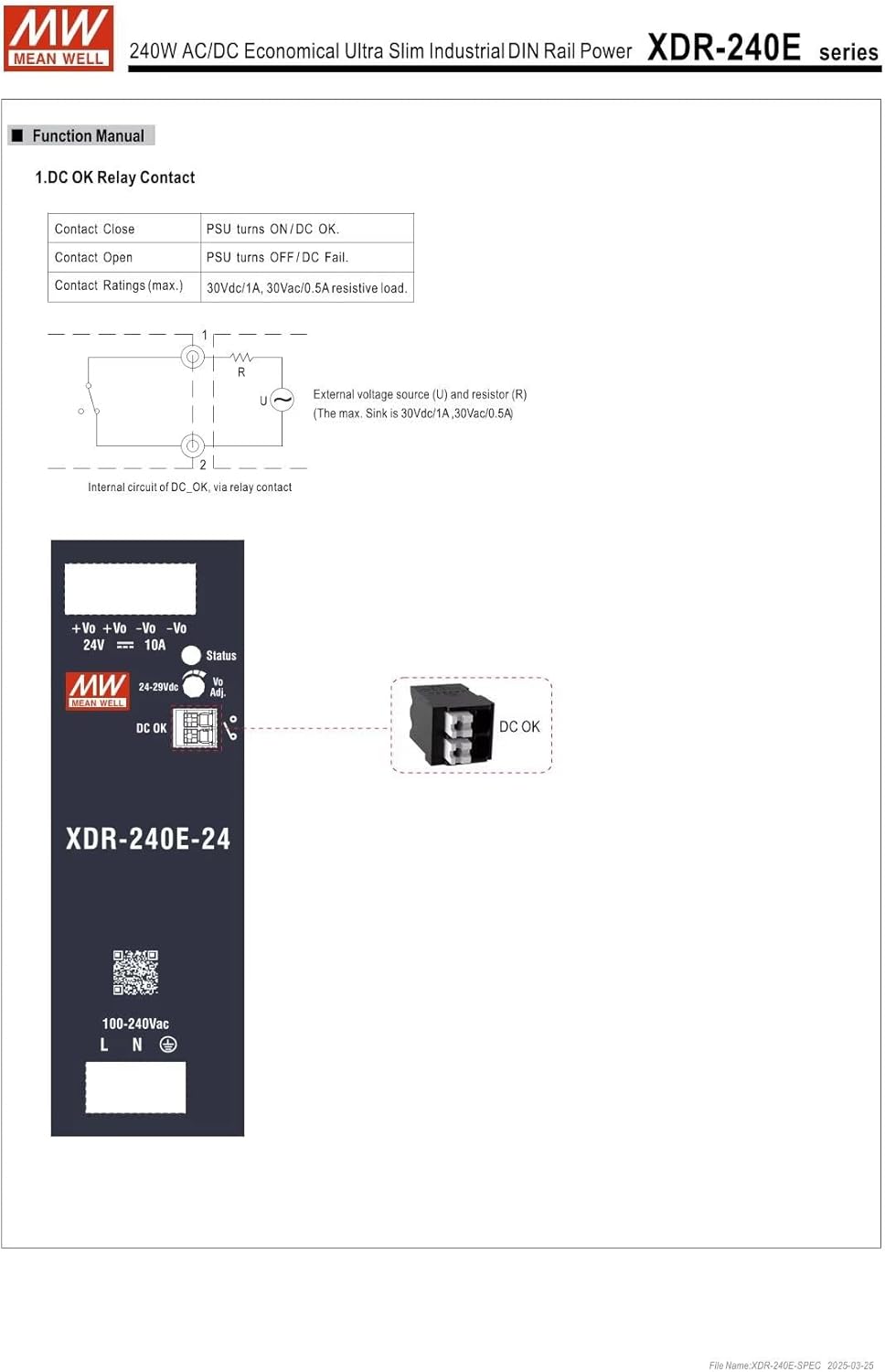

FeaturesMEAN WELL 240W AC/DC Economical Ultra Slim Industrial DIN Rail Power85~264Vac input rangeGlobal certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010)40mm slim widthHigh efficiency up to 95.5% and no load power dissipation 0.6W-1WBuilt-in constant current limiting circuitProtections: Short circuit/ Overload / Over voltage /Over temperatureFanless design, cooling by free air convection-40~+70°C wide range operation temperature (>+50°C derating)Operating altitude up to 5000 metersBuilt-in DC OK relay contactCan be installed on DIN rail TS-35/7.5 or 153 years warranty Input AC Voltage rang: 88 ~ 264VAC; DC Voltage rang: 120-370VdcFrequency range: 47 ~ 63HzEfficiency: 90%AC current: 1.4A/115VAC, 0.8A/230VACInrush Current: Cold Start 18A/115Vac 35A/230VacLeakage current: <1mA / 240VACEnvironmentWorking temp.: -40℃ ~ +70℃Working hunidity: 20 ~ 90% RH non-condensingStorage temp., humidity: -40℃ ~ +85℃, 10 ~ 95% RH non-condensingDimension: 40*125.2*116mm( (W*H*D)Weight: 0.61kgIntroductionThe MEAN WELL SDR/NDR/EDR series (75W~960W) has been on the market for over a decade, earning widespread recognition with cumulative sales reaching nearly 100 million units. These power supplies are widely used in industrial automation, power facilities, renewable energy equipment, network switches, and semiconductor processing equipment, among others. To offer an even greater value option, we are excited to introduce the all-new XDR-E Series (75W/120W/150W/240W/480W/960W).The XDR-E series stands out for its exceptional balance of performance and value! Compared to the previous SDR/NDR/EDR series, the XDR-E features a significantly reduced size—23% to 45% smaller (depending on the model). It also offers a more complete product lineup, addressing the market gap for 240W/480W 12V models while expanding the entire series to include 36V options. With improved efficiency of up to 96%, a wider operating temperature range of -40 to +70℃, and compliance with more international regulations across various industries, the XDR-E series delivers superior performance at a more competitive price - helping to reduce overall system costs.
- MEAN WELL 240W AC/DC Ultra Slim Industrial Din Rail Power Supply 12V 24V 36V 48V
- 85-264Vac input range, suitable for global use
- Ultra slim design: width ranging 40mm
- Wide operating temperature range: -40℃ to +70℃ (derating >+50℃)
- Comprehensive protections: Short Circuit, Overload, Overvoltage, Overtemperature
- Adjustable output voltage: 12V: 12~15V, 24V: 24~29V, 36V: 36~42V, 48V: 48~55V
- Certified for multiple international standards CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1)
- Fanless design, cooling by free air convection
- Applications: Industrial control system/ Semiconductor fabrication equipment/ factorty automation/Electro-mechanical apparatus/ Battery charger
| UPC | 717661254481 |
|---|---|
| Brand | YXSMPS |
| Wattage | 240 watts |
| Model Name | XDR-240E-48 |
| Form Factor | DIN Rail |
| Item Weight | 0.7 Kilograms |
| Manufacturer | YXSMPS |
| Model Number | XDR-240E-48 48V |
| BuiltIn Media | XDR-240E |
| Cooling Method | Air |
| Output Wattage | 240 Watts |
| Mfr Part Number | XDR-240E |
| Maximum Input Voltage | 264 Volts (AC) |
| Minimum Input Voltage | 88 Volts (AC) |
