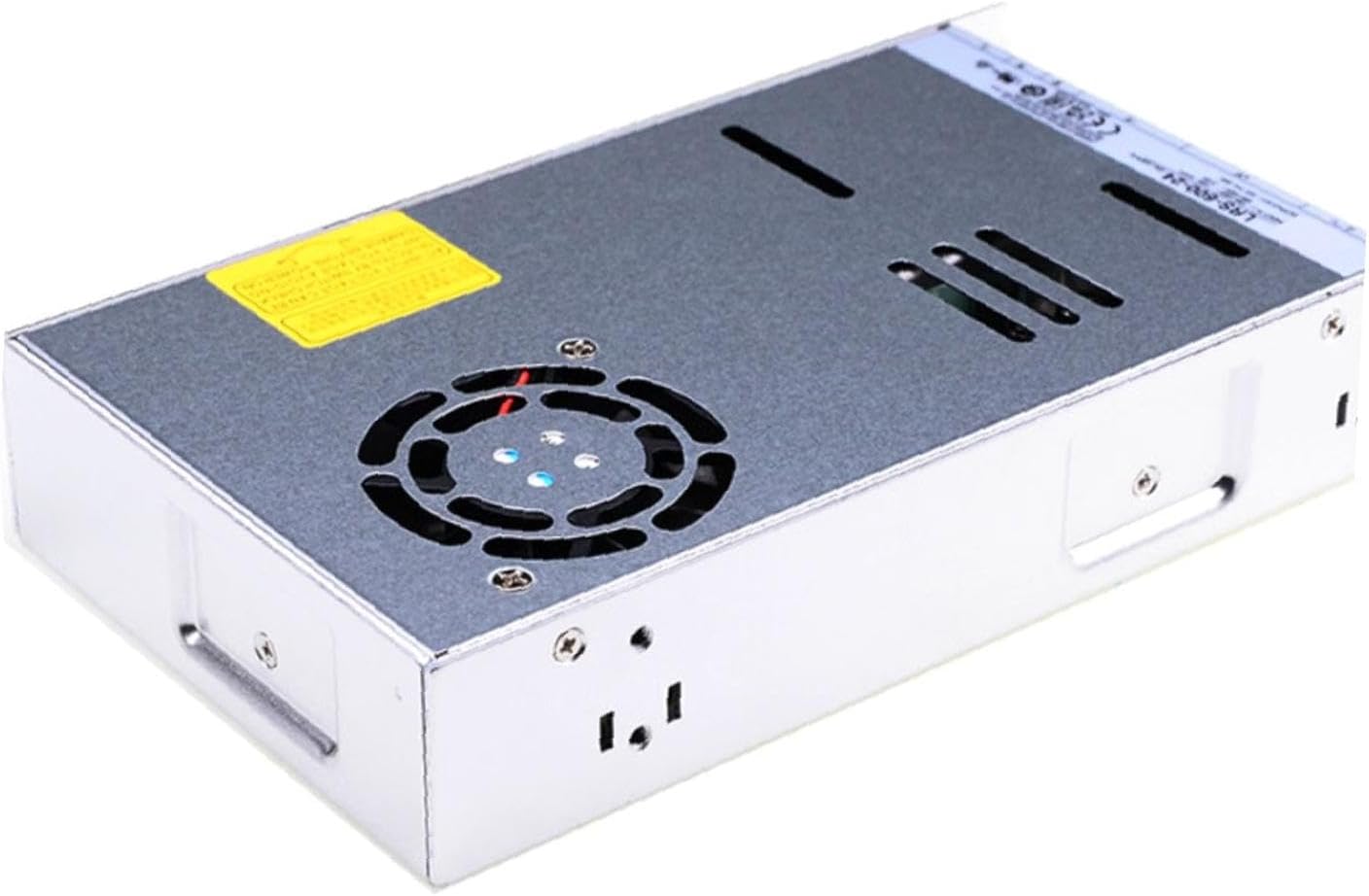

LRS-600-24 24V 25A 600W Single Output Industrial Power Supply, 91% Efficiency, 85-264VAC Input, for Automation/Machinery/Control Systems

The LRS-600-24 industrial switching power supply delivers stable 24V DC output with 25A current (600W total power). Engineered for demanding environments, it accepts wide-range 85-264VAC input (switch-selectable 115/230VAC) and 255-370VDC input via screw terminals. Key features include: High 91% conversion efficiency reduces energy costs Built-in temperature-controlled DC fan ensures full-load operation at -20°C to +65°C Robust protection: OVP (35V max), OTP (85°C±5°C), overload (630W for 3s), short circuit Industrial resilience: 5G vibration resistance, 300VAC surge withstand (5sec), 5000m altitude operation 1U low-profile (41mm height) design saves panel space 200% peak power capacity (1200W/100ms) for motor startups Compliance: CE, UL 62368-1, BSMI, EAC, KC certified 3-year warranty with >1,000,000 hours MTBFTechnical Specifications:Output: 24V ±5%, 25A (600W)Input: 90-132VAC/180-264VAC (switch), 255-370VDCEfficiency: 91% typicalLeakage Current: <2mA @240VACCooling: Forced air (fan speed auto-adjusts with load)Protections: Overload/OVP/OTP/Short CircuitOperating Temp: -20°C to +65°C (derating above 50°C)Humidity: 20-90% RH non-condensingSafety Standards: UL/IEC/EN 62368-1, EAC, KC, CEIdeal for powering industrial robots, CNC machines, PLC controllers, test equipment, and production line automation systems requiring reliable 24V DC power.

• High-Efficiency Industrial Power Solution: Delivers 24V DC output with 25A current and 600W power, achieving 91% energy efficiency. Features universal 85-264VAC input (switch-selectable 115/230VAC) and 255-370VDC compatibility, optimized for industrial energy savings.
• Rugged Performance in Extreme Conditions: Operates at full load from -20°C to +65°C with built-in cooling fan. Withstands 5G vibration and 5000m altitude, ensuring reliability in harsh industrial environments like factories and automation systems.
• Comprehensive Protection & Safety: Integrated safeguards including over voltage (OVP), over temperature (OTP), short circuit, and 105-150% overload protection (3-second cutoff). Meets international safety standards with <2mA leakage current.
• Industrial-Grade Durability: Reinforced casing with IP20 protection and 41mm low-profile design. Features 200% surge capacity for motor startups, 300VAC surge withstand capability, and MTBF >1 million hours for continuous operation.
• Versatile Power for Automation: Designed for industrial machinery, CNC equipment, PLC systems, and electromechanical loads. Supports both resistive/capacitive loads and inductive loads with peak power handling, ideal for production line upgrades.
