RATTMMOTOR EBX1605 500mm /19.69" CNC Linear Stage Actuator Double Optical Axis 1605 Ball Screw Linear Slide Rail CNC Linear Motion Rail Guide with Nema23 Stepper Motor 3A 1.2N.m for CNC Router Machine
4.8 (137 items)
Limited Time Sale$69.43 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219314740 | Release Date | 2026/05/03 | List Price | $46.29 | Model Number | 219314740 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

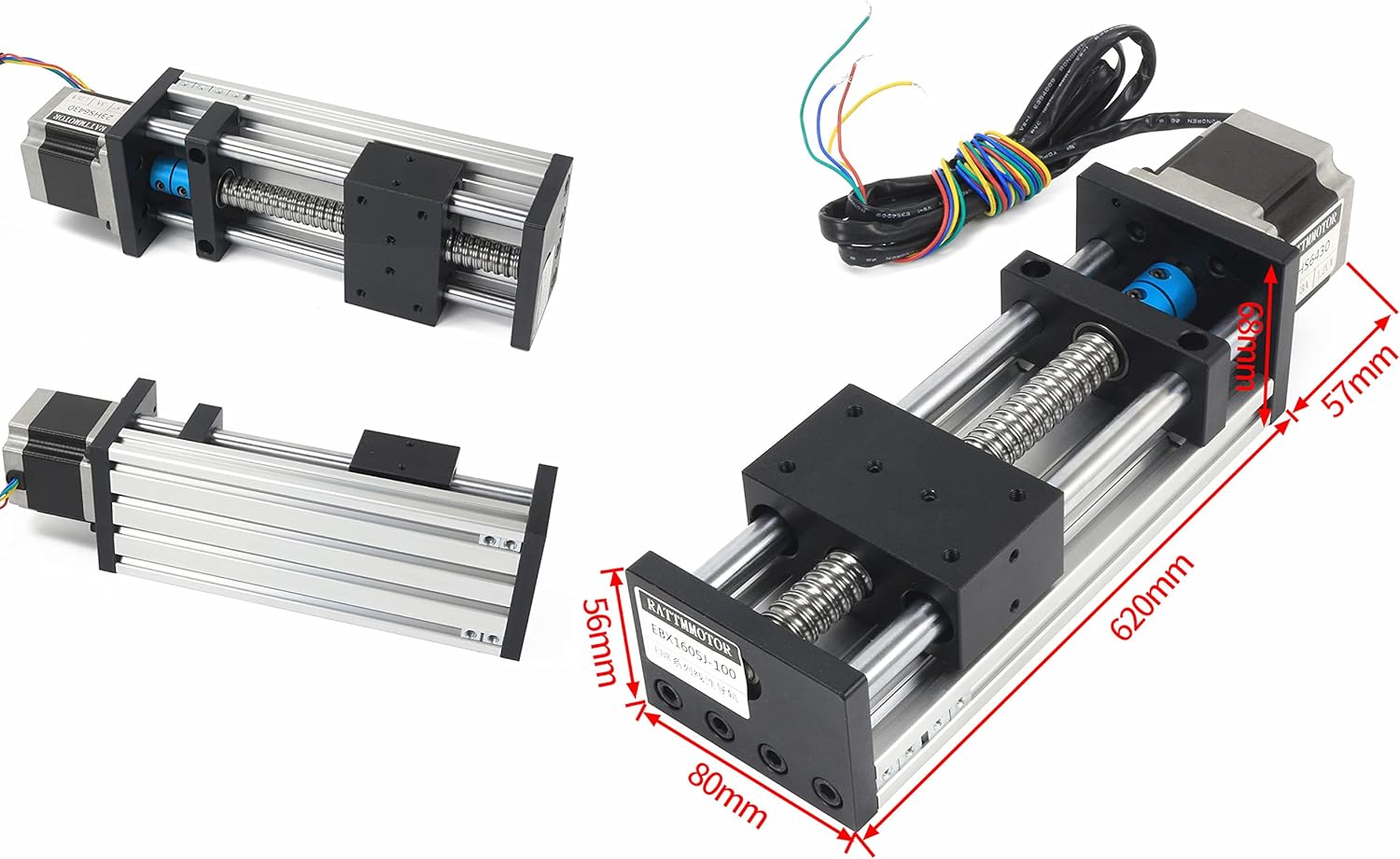

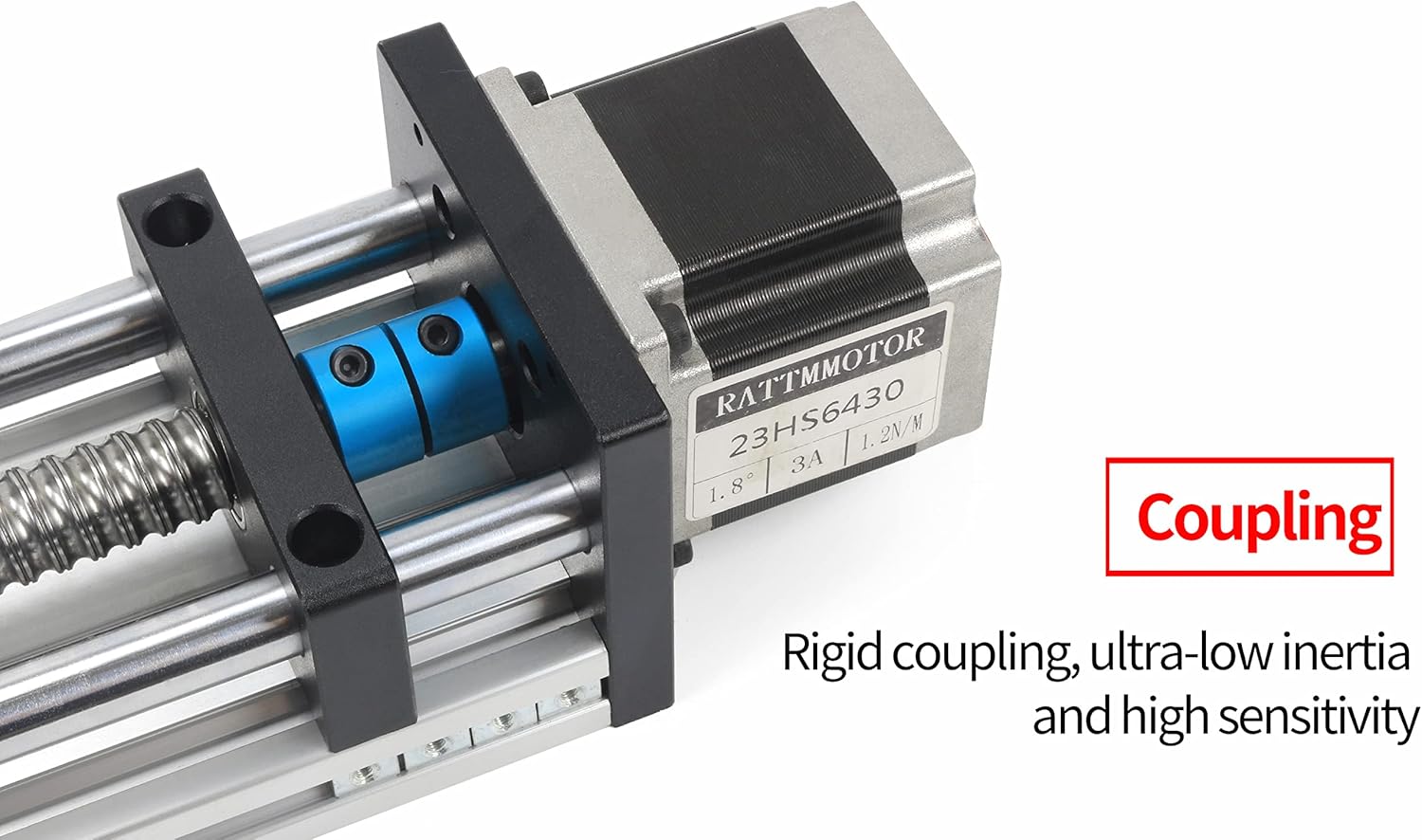

- 【Compact Structure】◆ The base is 2080 profile, the tail end bearing piece, front end is equipped with Nema23 stepper motor and the flange piece connecting the motor, with the load-bearing slide table, the 1605 lead screw and the coupling, adding a stable bearing, and the double optical axis design.
- 【Flexible Installation】◆ Working Length: 500mm/19.69inch. 80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixing, M3 nut can be installed with limit, easy to install. This linear stage can be used in combination with multi-axis, horizontal cross, gantry type, three-axis type, four-axis type, etc.
- 【Stable Operation】◆ Stable bearings are added at the motor end to better maintain accuracy and improve operation stability. 80*50mm slider, embedded with linear bearing to ensure uniform axial force and ensure running positioning accuracy.
- 【High Precision】◆ 1605 ball screw, C7 grade screw accuracy, screw reciprocating accuracy of 0.01mm, repeat positioning accuracy of ±0.03mm, accurate positioning, good hardness, quiet operation, and long service life.
- 【Strong Load Capacity】◆ Two 12mm optical shaft transmission, double shaft support load is larger, the horizontal load is 50KG/110.23Ib, and the vertical load is 10KG/22.05Ib. It is suitable for lathes, CNC machine tools, machining, mechanical equipment, automation devices and other industrial automation fields.
| Color | 500mm |
|---|---|
| Item Weight | 10.08 pounds |
| Part Number | EBX1605J |
| Manufacturer | RTM |
| Item model number | EBX1605J |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 27.1 x 6.5 x 3.5 inches |
| Item Package Quantity | 1 |
